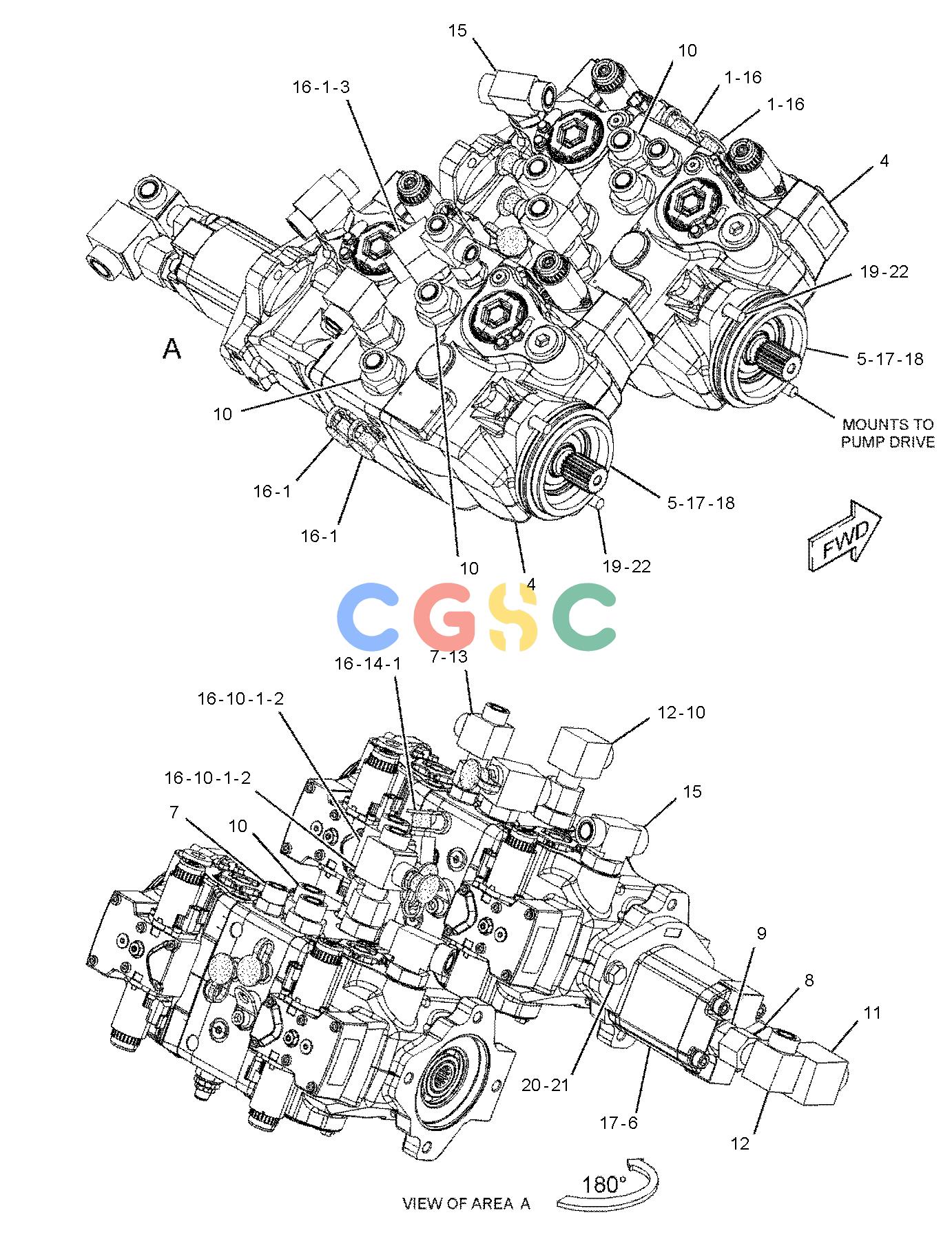

卡特零件查询（AP-1055D） 351-4455: PUMP & MTG GP-CONVEYOR
广数供应链运营团队, 16 02月, 2025，浏览：
156 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 6V-0852 | [8] | CAP-DUST | |
| 2. | 148-8430 | [2] | TEE AS | |
| | | | (EACH INCLUDES) |
| | 6V-9746 | [1] | SEAL-O-RING | |
| | 7X-0873 | [1] | TEE | |
| 3. | 180-9286 | [1] | TEE AS | |
| | 3D-2824 | [1] | SEAL-O-RING | |
| | 3E-2345 | [1] | ADAPTER-TEE | |
| | 6V-9746 | [1] | SEAL-O-RING | |
| 4. | 269-0533Y | [2] | PUMP GP-PISTON | |
| 5. | 270-7184 | [2] | ADAPTER | |
| 6. | 354-6935Y | [1] | PUMP GP-GEAR | |
| 7. | 148-8315 | [2] | CONNECTOR AS | |
| | | | (EACH INCLUDES) |
| | 2M-9780 | [1] | SEAL-O-RING | |
| | 6V-8642 | [1] | CONNECTOR | |
| | 7J-9108 | [1] | SEAL-O-RING | |
| 8. | 148-8317 | [1] | CONNECTOR AS | |
| | 3D-2824 | [1] | SEAL-O-RING | |
| | 5K-9090 | [1] | SEAL-O-RING | |
| | 6V-8714 | [1] | CONNECTOR | |
| 9. | 148-8322 | [1] | CONNECTOR AS | |
| | 2M-9780 | [1] | SEAL-O-RING | |
| | 6V-8640 | [1] | CONNECTOR | |
| | 6V-9746 | [1] | SEAL-O-RING | |
| 10. | 148-8339 | [7] | CONNECTOR AS | |
| | | | (EACH INCLUDES) |
| | 6V-8716 | [1] | CONNECTOR(STRAIGHT) | |
| | 6V-9746 | [1] | SEAL-O-RING | |
| | 7M-8485 | [1] | SEAL-O-RING | |
| 11. | 148-8352 | [1] | ELBOW AS | |
| | 5K-9090 | [1] | SEAL-O-RING | |
| | 6V-9854 | [1] | ELBOW(SWIVEL) | |
| 12. | 148-8392 | [2] | ELBOW AS | |
| | | | (EACH INCLUDES) |
| | 6V-9746 | [1] | SEAL-O-RING | |
| | 6V-9853 | [1] | ELBOW | |
| 13. | 148-8446 | [1] | TEE AS-SWIVEL | |
| | 6V-9838 | [1] | TEE-SWIVEL | |
| | 7J-9108 | [2] | SEAL-O-RING | |
| 14. | 150-3065 | [1] | ELBOW AS | |
| | 3J-1907 | [1] | SEAL-O-RING | |
| | 6V-0484 | [1] | ELBOW | |
| 15. | 153-6259 | [2] | TEE AS | |
| | | | (EACH INCLUDES) |
| | 3D-2824 | [1] | SEAL-O-RING | |
| | 6V-8777 | [1] | TEE-FACE SEAL | |
| | 6V-9746 | [2] | SEAL-O-RING | |
| 16. | 164-5567 | [8] | COUPLER AS-QUICK DISCONNECT(MALE) | |
| | | | (EACH INCLUDES) |
| | 6V-3965 | [1] | FITTING(QUICK DISCONNECT) | |
| | 214-7568 | [1] | SEAL-O-RING | |
| 17. | 1H-6227 | [3] | SEAL-O-RING | |
| 18. | 5F-3144 | [2] | SEAL-O-RING | |
| 19. | 8T-4184M | [4] | BOLT(M12X1.75X45-MM) | |
| 20. | 8T-4223 | [2] | WASHER-HARD(13.5X25.5X3-MM THK) | |
| 21. | 8T-4956M | [2] | BOLT(M12X1.75X35-MM) | |
| 22. | 8T-5360 | [4] | WASHER(12X22.5X2.5-MM THK) | |
| | M | | METRIC PART |
| | Y | | SEPARATE ILLUSTRATION |
