卡特零件查询（AP-1055D） 254-9011: ARM GP-TOW
广数供应链运营团队, 16 02月, 2025，浏览：
622 次

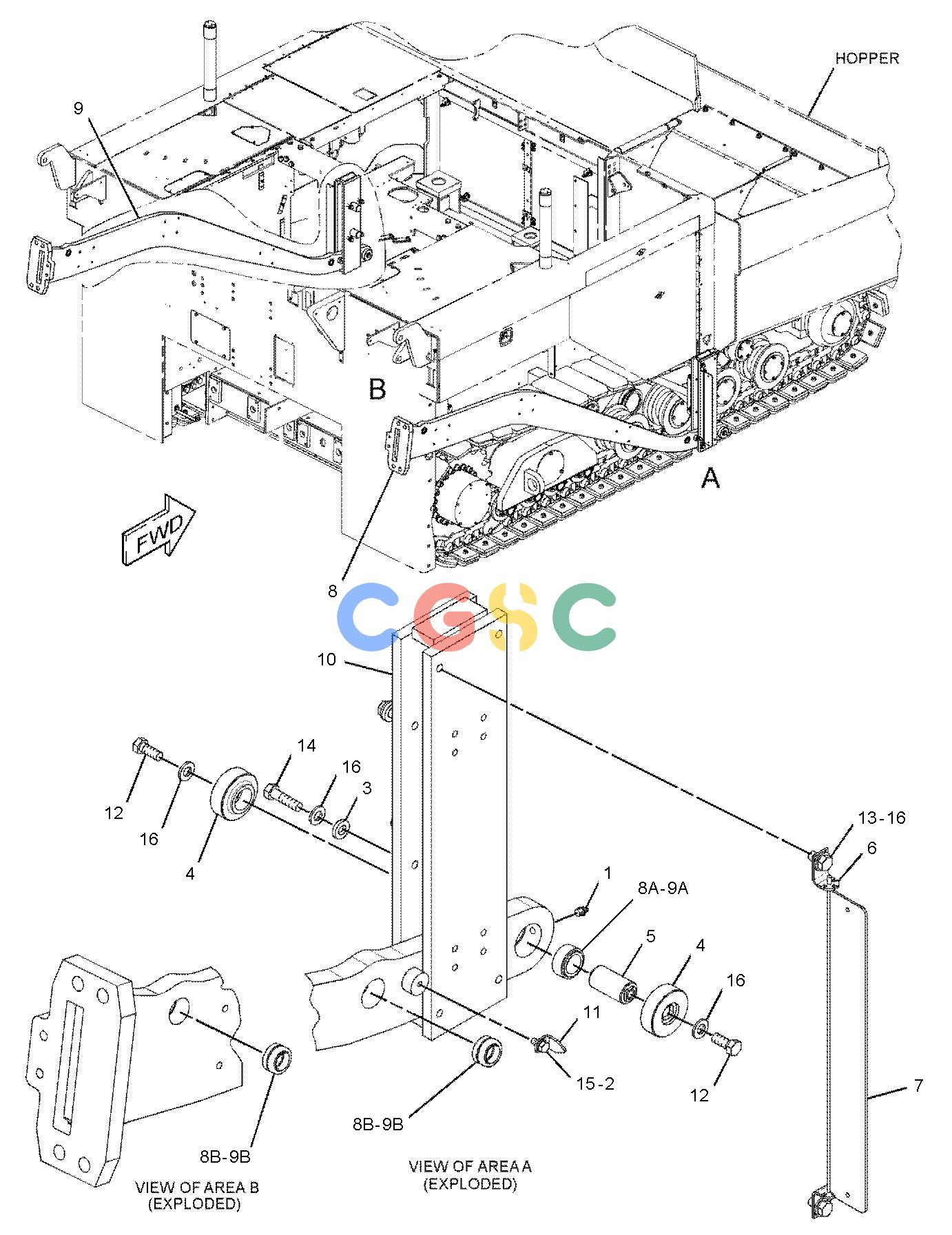

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 3B-8489 | [2] | FITTING-GREASE(1/8-27 PTF) | |
| 2. | 8T-4224 | [2] | WASHER-HARD(8.8X16X2-MM THK) | |
| 3. | 8T-7971 | [8] | WASHER-HARD(13.5X25.5X5-MM THK) | |
| 4. | 194-4519 | [4] | ROLLER | |
| 5. | 194-4520 | [2] | SHAFT | |
| 6. | 194-8183 | [4] | PLATE | |
| 7. | 194-8186 | [2] | PLATE AS | |
| 8. | 343-4126 | [1] | ARM GP-TOW(RH) | |
| 8A. | 9W-2401 | [1] | BEARING-ALIGNING | |
| 8B. | 005-8639 | [2] | BEARING-ALIGNING | |
| | 239-1439 | [1] | ARM AS(RH) | |
| 9. | 343-4127 | [1] | ARM GP-TOW(LH) | |
| 9A. | 9W-2401 | [1] | BEARING-ALIGNING | |
| 9B. | 005-8639 | [2] | BEARING-ALIGNING | |
| | 239-1440 | [1] | ARM AS(LH) | |
| 10. | 243-1087 | [2] | SUPPORT AS | |
| 11. | 310-0813 | [2] | PLATE | |
| 12. | 8T-4139M | [4] | BOLT(M12X1.75X30-MM) | |
| 13. | 8T-4179M | [4] | BOLT(M12X1.75X20-MM) | |
| 14. | 8T-4184M | [8] | BOLT(M12X1.75X45-MM) | |
| 15. | 8T-4200M | [2] | BOLT(M8X1.25X16-MM) | |
| 16. | 8T-4223 | [16] | WASHER-HARD(13.5X25.5X3-MM THK) | |
| | M | | METRIC PART |
