卡特零件查询（AP-1055D） 230-9604: VALVE & MTG GP-CONTROL
广数供应链运营团队, 16 02月, 2025，浏览：
468 次

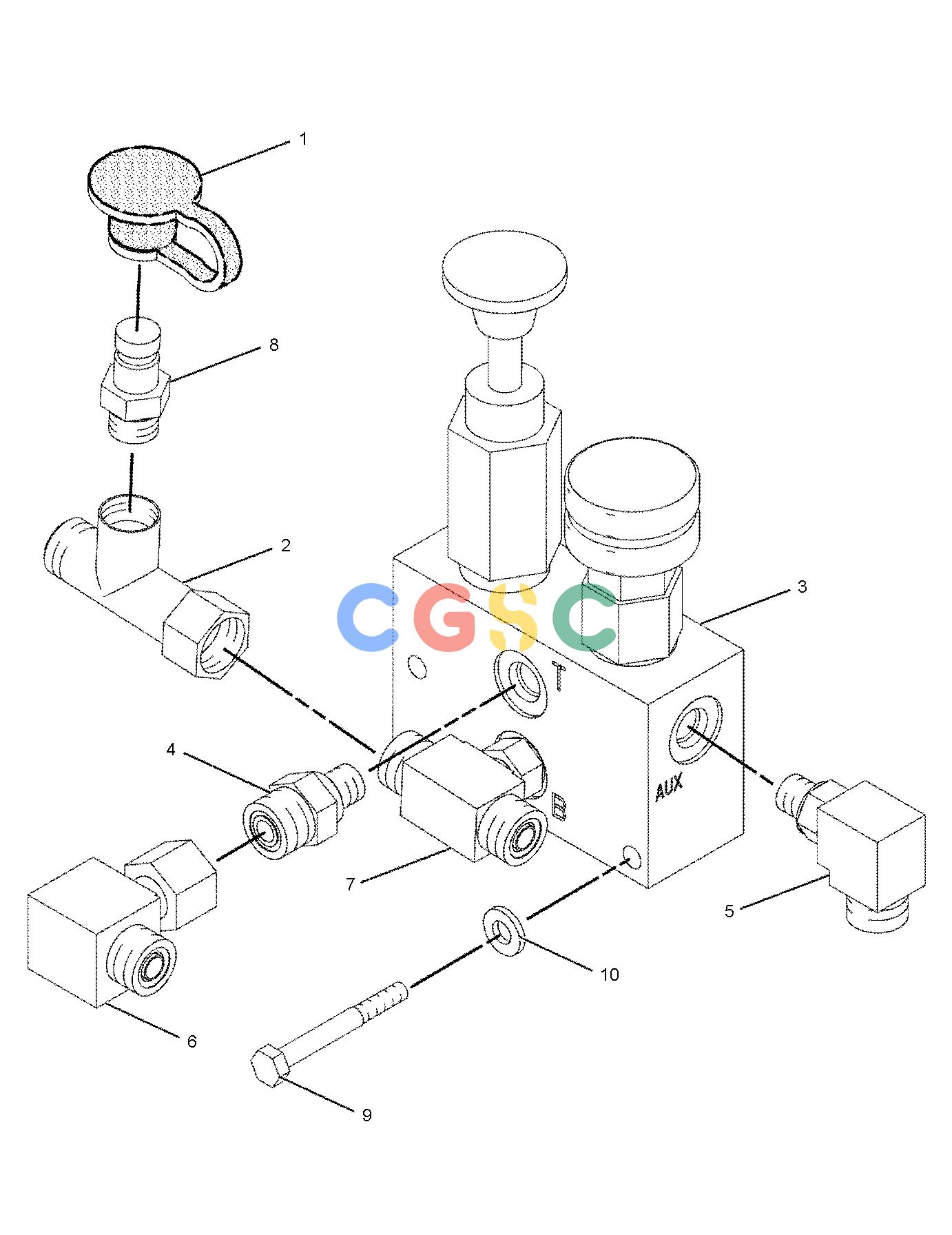

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 6V-0852 | [1] | CAP-DUST | |
| 2. | 148-8424 | [1] | TEE AS | |
| | 6V-8397 | [1] | SEAL-O-RING | |
| | 8T-8902 | [1] | ADAPTER-TEE | |
| 3. | 193-8539Y | [1] | PUMP & VALVE GP-BRAKE(MANUAL RELEASE) | |
| 4. | 148-8326 | [1] | CONNECTOR AS | |
| | 3J-7354 | [1] | SEAL-O-RING | |
| | 6V-8397 | [1] | SEAL-O-RING | |
| | 6V-9872 | [1] | CONNECTOR | |
| 5. | 148-8361 | [1] | ELBOW AS(90-DEG) | |
| | 3J-7354 | [1] | SEAL-O-RING | |
| | 6V-8397 | [1] | SEAL-O-RING | |
| | 6V-9200 | [1] | ELBOW | |
| 6. | 148-8367 | [1] | ELBOW AS | |
| | 6V-8397 | [1] | SEAL-O-RING | |
| | 6V-9850 | [1] | ELBOW | |
| 7. | 156-4281 | [1] | TEE AS | |
| | 3J-7354 | [1] | SEAL-O-RING | |
| | 6V-8397 | [2] | SEAL-O-RING | |
| | 7X-0838 | [1] | TEE-O-RING | |
| 8. | 164-5567 | [1] | COUPLER AS-QUICK DISCONNECT(MALE)(QUICK DISCONNECT) | |
| | 3J-1907 | [1] | SEAL-O-RING | |
| | 6V-3965 | [1] | FITTING(QUICK DISCONNECT) | |
| 9. | 7X-2534M | [2] | BOLT(M6X1X50-MM) | |
| 10. | 8T-4205 | [2] | WASHER-HARD(7.2X14.5X2-MM THK) | |
| | M | | METRIC PART |
| | Y | | SEPARATE ILLUSTRATION |
