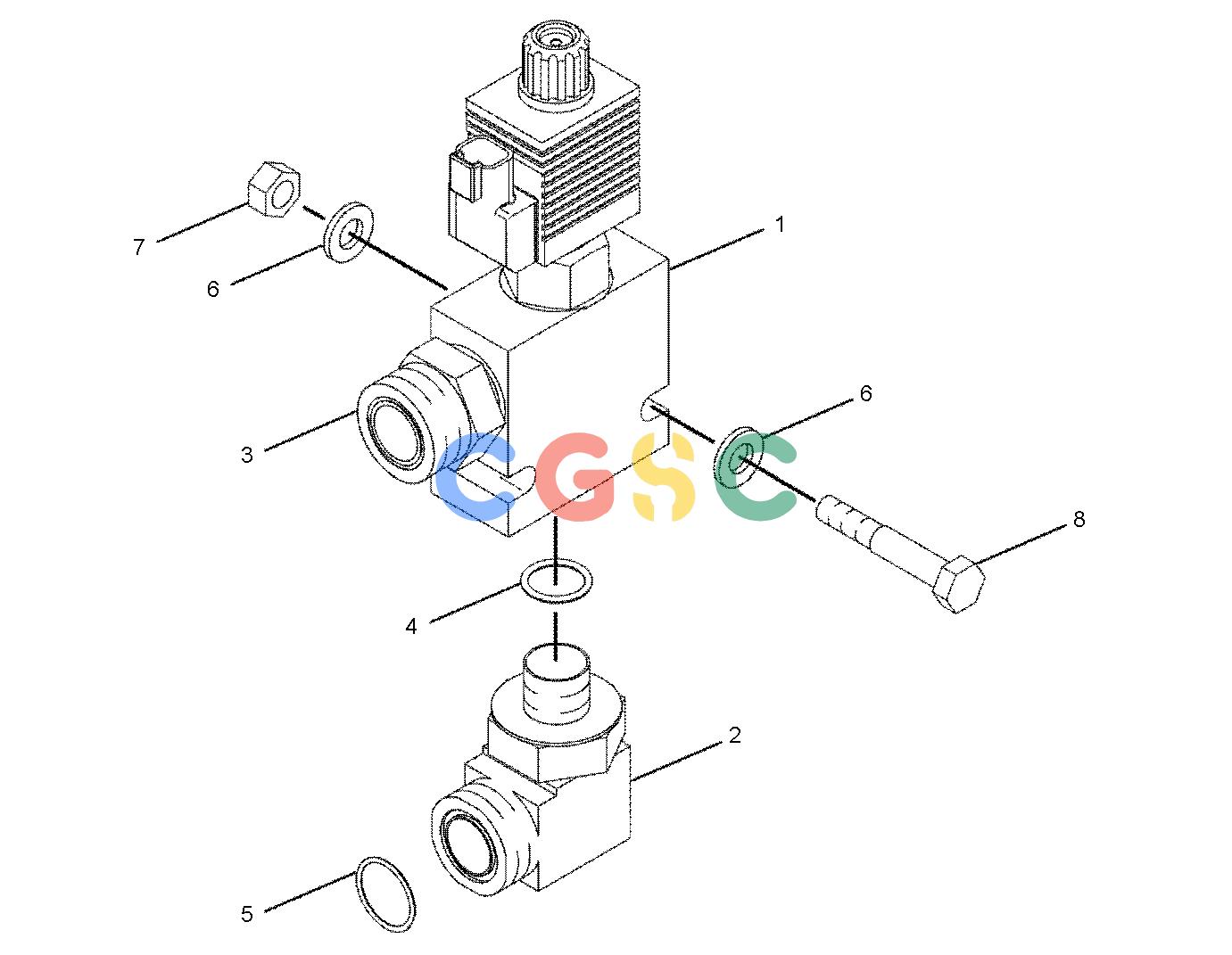

| Pos. | Part No | Qty | Parts name | Comments |
|---|---|---|---|---|
| 1. | 230-9628Y | [1] | VALVE GP-CONTROL(FAN SPEED) | |
| 2. | 119-6220 | [1] | ELBOW | |
| 3. | 153-6230 | [1] | CONNECTOR AS | |
| 2M-9780 | [1] | SEAL-O-RING | ||
| 5K-9090 | [1] | SEAL-O-RING | ||
| 8T-9386 | [1] | CONNECTOR | ||
| 4. | 2M-9780 | [1] | SEAL-O-RING | |
| 5. | 5K-9090 | [1] | SEAL-O-RING | |
| 6. | 8T-4121 | [4] | WASHER-HARD(11X21X2.5-MM THK) | |
| 7. | 8T-4133M | [2] | NUT(M10X1.5-THD) | |
| 8. | 8T-6466M | [2] | BOLT(M10X1.5X60-MM) | |
| M | METRIC PART | |||
| Y | SEPARATE ILLUSTRATION | |||
