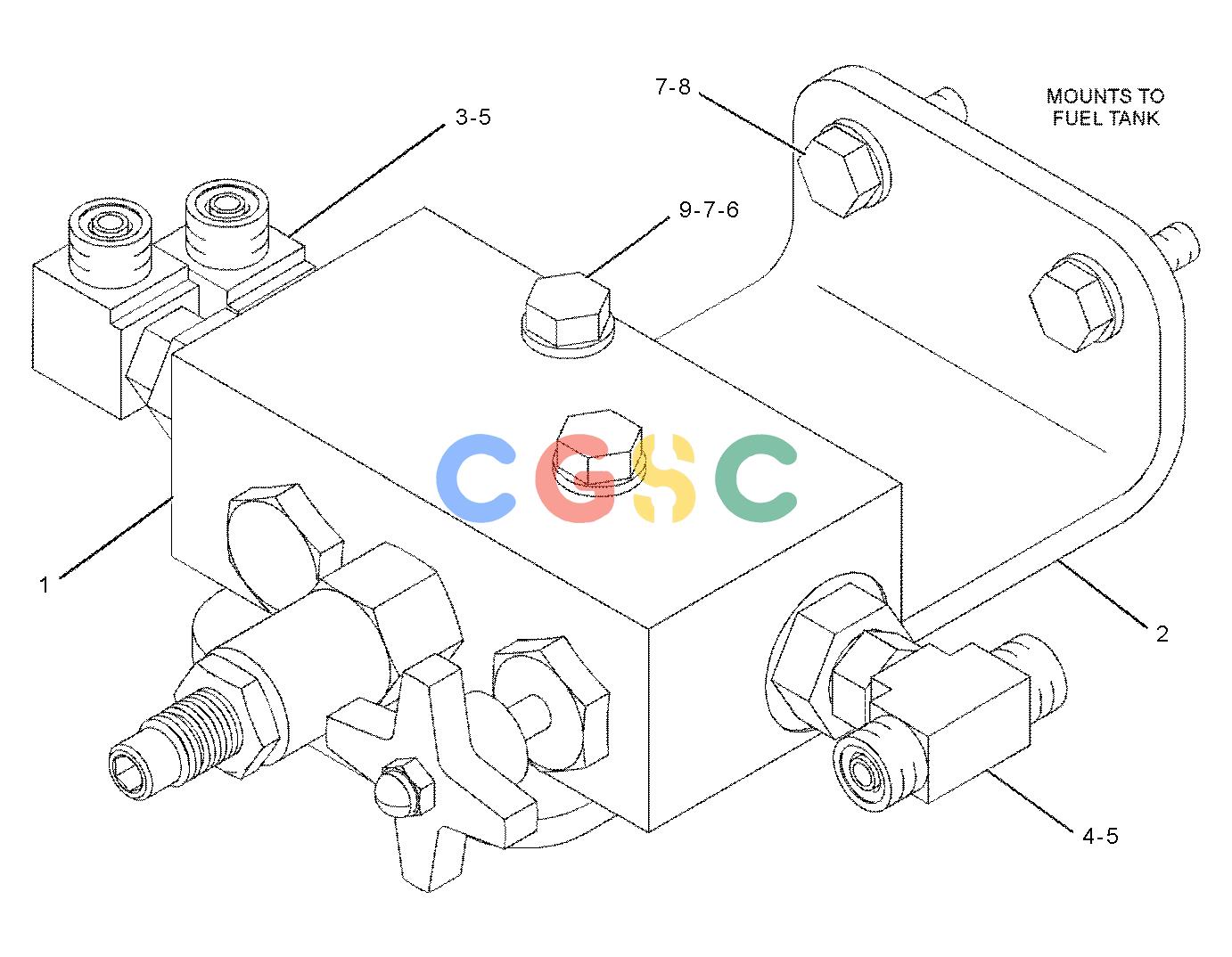

卡特零件查询（AP-1055D） 254-8983: VALVE & MTG GP-TRACK TENSIONER
广数供应链运营团队, 16 02月, 2025，浏览：
384 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 236-2580Y | [2] | VALVE GP-TRACK TENSIONER | |
| 2. | 243-0331 | [2] | PLATE | |
| 3. | 148-8369 | [4] | ELBOW AS | |
| | | | (EACH INCLUDES) |
| | 3J-7354 | [1] | SEAL-O-RING | |
| | 4J-5477 | [1] | SEAL-O-RING | |
| | 6V-8628 | [1] | ELBOW | |
| 4. | 148-8432 | [2] | TEE AS | |
| | | | (EACH INCLUDES) |
| | 3J-7354 | [1] | SEAL-O-RING | |
| | 4J-5477 | [2] | SEAL-O-RING | |
| | 6V-8773 | [1] | TEE-FACE SEAL | |
| 5. | 169-7397 | [6] | ADAPTER AS | |
| | | | (EACH INCLUDES) |
| | 3K-0360 | [1] | SEAL-O-RING | |
| | 3P-1932 | [1] | ADAPTER | |
| 6. | 5C-7261M | [4] | NUT(M8X1.25-THD) | |
| 7. | 8T-4224 | [12] | WASHER-HARD(8.8X16X2-MM THK) | |
| 8. | 8T-4908M | [4] | BOLT(M8X1.25X25-MM) | |
| 9. | 8T-6870M | [4] | BOLT(M8X1.25X70-MM) | |
| | M | | METRIC PART |
| | Y | | SEPARATE ILLUSTRATION |
