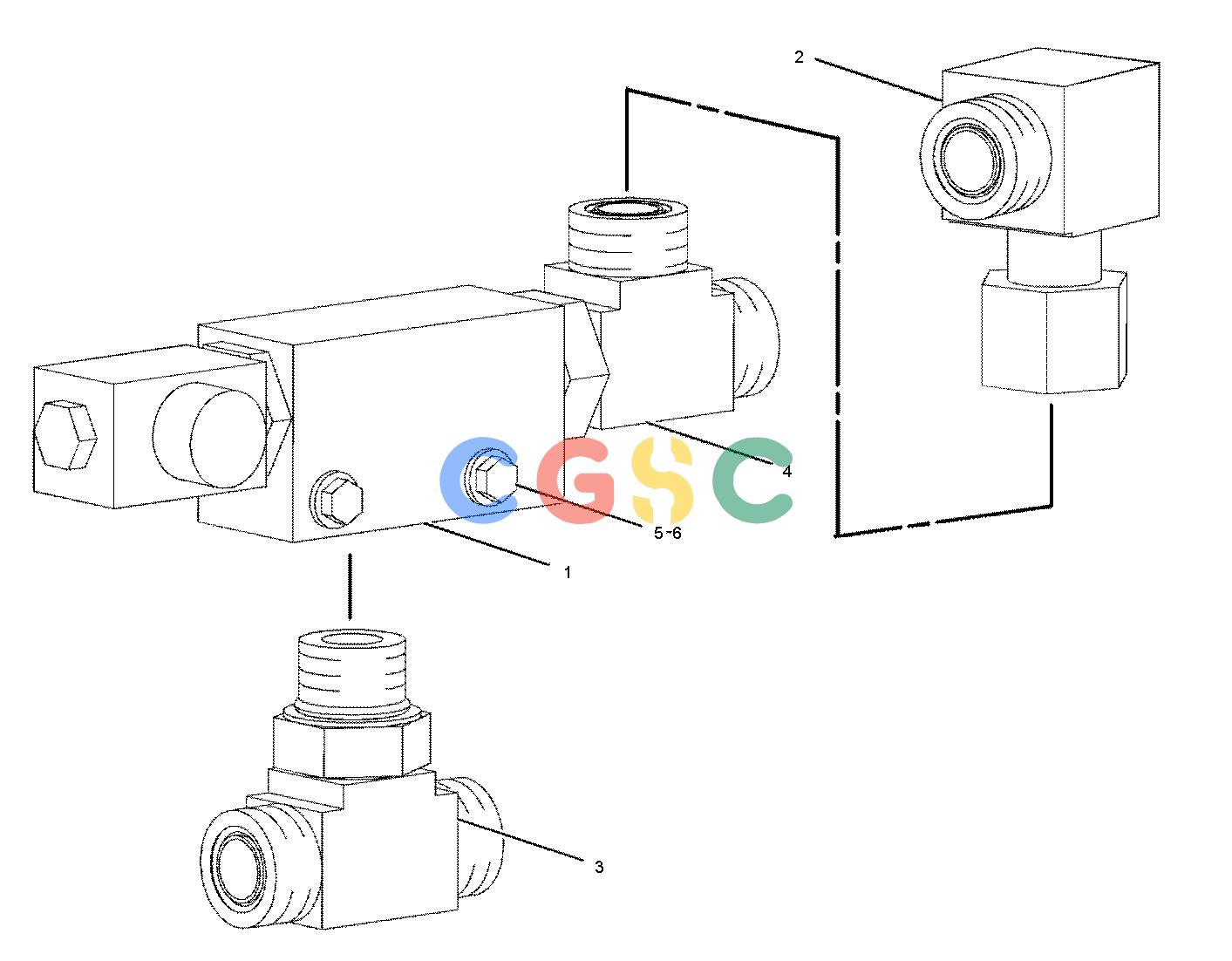

卡特零件查询（AP-1055D） 230-9599: VALVE & MTG GP-VIBRATORY
广数供应链运营团队, 16 02月, 2025，浏览：
471 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 190-8803Y | [1] | VALVE GP-CONTROL(VIBRATORY BYPASS) | |
| 2. | 148-8392 | [1] | ELBOW AS | |
| | 6V-9746 | [1] | SEAL-O-RING | |
| | 6V-9853 | [1] | ELBOW | |
| 3. | 153-6259 | [1] | TEE AS | |
| | 3D-2824 | [1] | SEAL-O-RING | |
| | 6V-8777 | [1] | TEE-FACE SEAL | |
| | 6V-9746 | [2] | SEAL-O-RING | |
| 4. | 164-5574 | [1] | TEE AS | |
| | 3D-2824 | [1] | SEAL-O-RING | |
| | 6V-8784 | [1] | TEE-FACE SEAL | |
| | 6V-9746 | [2] | SEAL-O-RING | |
| 5. | 7X-2534M | [2] | BOLT(M6X1X50-MM) | |
| 6. | 8T-4205 | [2] | WASHER-HARD(7.2X14.5X2-MM THK) | |
| | M | | METRIC PART |
| | Y | | SEPARATE ILLUSTRATION |
