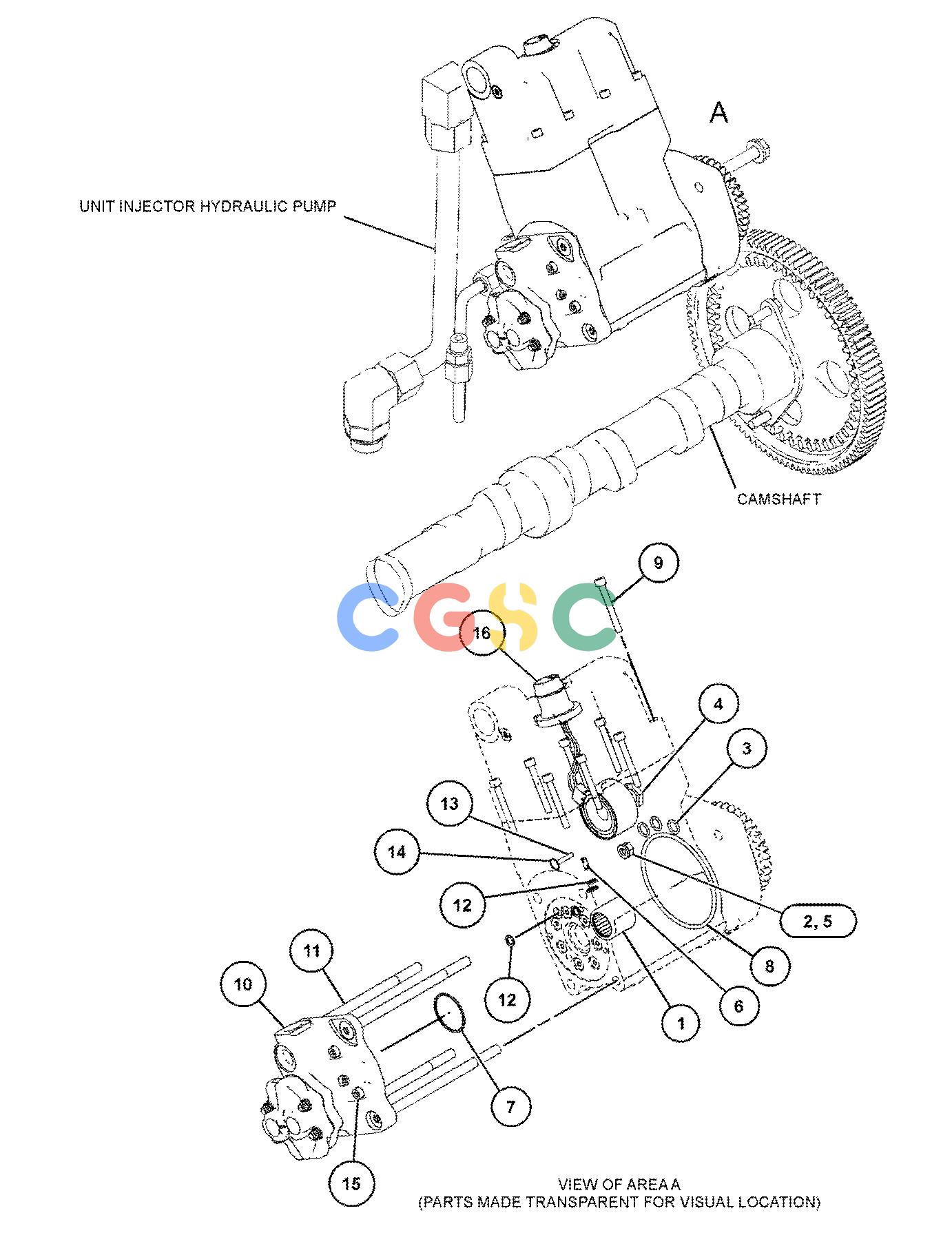

卡特零件查询（AP-1055D） 476-8766: PUMP GP-UNIT INJECTOR HYD
广数供应链运营团队, 16 02月, 2025，浏览：
411 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 1N-8062 | [1] | BEARING AS-NEEDLE | |
| 2. | 5C-2890M | [1] | NUT(M6X1-THD) | |
| 3. | 6V-5048 | [3] | SEAL-O-RING | |
| 4. | 8C-6711 | [1] | NUT-RETAINER(1/2-20-THD) | |
| 5. | 9X-8267 | [1] | WASHER(6.6X12X2-MM THK) | |
| 6. | 153-7036 | [1] | SPOOL | |
| 7. | 179-8128 | [1] | SEAL-O-RING | |
| 8. | 193-1736 | [1] | SEAL-O-RING | |
| 9. | 218-8655M | [8] | BOLT-SOCKET HEAD(M5X0.8X42-MM) | |
| 10. | 383-1992Y | [1] | PUMP GP-FUEL TRANSFER | |
| 11. | 228-5897M | [4] | BOLT-TORX(M8X1.25X136.7-MM) | |
| 12. | 239-2402 | [4] | SEAL-O-RING | |
| 13. | 260-5716 | [1] | SPOOL | |
| 14. | 262-0284 | [1] | RING-RETAINING | |
| 15. | 313-4620M | [3] | SCREW-PAN HEAD(M5X0.8X25-MM) | |
| 16. | 318-8144 | [1] | CONNECTOR AS | |
| | 5P-8106E | | WIRE-ELECTRICAL(26-CM) | |
| | 179-7400 | [2] | SEAL | |
| | | | |
| | | | AVAILABLE REPAIR KIT(S): |
| | 396-3296Y | [1] | KIT-FUEL TRANSFER PUMP | |
| | E | | ORDER BY THE CENTIMETER |
| | M | | METRIC PART |
| | Y | | SEPARATE ILLUSTRATION |
