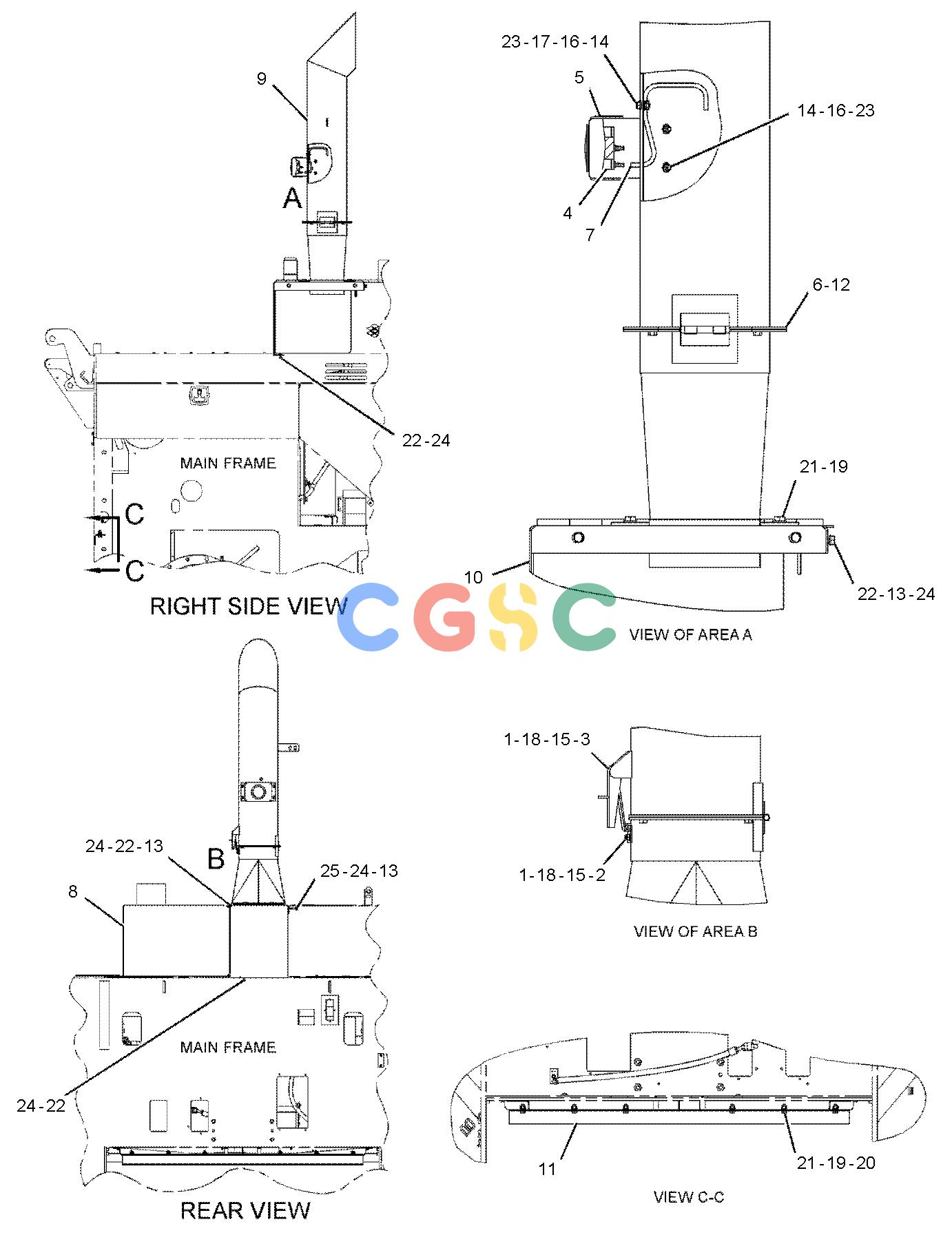

卡特零件查询（AP-1055D） 292-9232: VENTILATION GP-PAVER
广数供应链运营团队, 16 02月, 2025，浏览：
897 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 6V-9188M | [4] | LOCKNUT(M5X0.8-THD) | |
| 2. | 8C-6554 | [1] | STRIKER-LATCH | |
| 3. | 8C-6555 | [1] | LATCH | |
| 4. | 150-8702 | [1] | GAUGE-DIFFERENTIAL PRESSURE(PAVER VENTILATION) | |
| 5. | 150-8703 | [1] | BRACKET-GAUGE | |
| 6. | 169-1511 | [1] | SCREEN(PAVER VENTILATION) | |
| 7. | 222-9208 | [1] | TUBE | |
| 8. | 290-1406 | [1] | DOOR AS | |
| 9. | 290-2338 | [1] | STACK GP-PAVER VENTILATION | |
| | 107-6125 | [1] | HINGE AS | |
| 10. | 290-2347 | [1] | MOUNT AS | |
| 11. | 292-9245 | [1] | PLATE | |
| 12. | 2M-5139 | [4] | SCREW-MACHINE(1/4-20X0.25-IN) | |
| 13. | 5C-7261M | [6] | NUT(M8X1.25-THD) | |
| 14. | 5C-9553M | [5] | BOLT(M6X1X16-MM) | |
| 15. | 6V-4298M | [4] | BOLT(M5X0.8X16-MM) | |
| 16. | 6V-7743M | [5] | LOCKNUT(M6X1-THD) | |
| 17. | 8M-2771 | [1] | CLIP | |
| 18. | 8T-0328 | [4] | WASHER-HARD(5.5X10X1-MM THK) | |
| 19. | 8T-4121 | [16] | WASHER-HARD(11X21X2.5-MM THK) | |
| 20. | 8T-4133M | [6] | NUT(M10X1.5-THD) | |
| 21. | 8T-4136M | [10] | BOLT(M10X1.5X25-MM) | |
| 22. | 8T-4189M | [5] | BOLT(M8X1.25X20-MM) | |
| 23. | 8T-4205 | [10] | WASHER-HARD(7.2X14.5X2-MM THK) | |
| 24. | 8T-4224 | [13] | WASHER-HARD(8.8X16X2-MM THK) | |
| 25. | 8T-6912M | [2] | BOLT(M8X1.25X50-MM) | |
| | M | | METRIC PART |
