卡特零件查询（AP-1055D） 114-1888: BOGIE GP-CENTER
广数供应链运营团队, 16 02月, 2025，浏览：
369 次

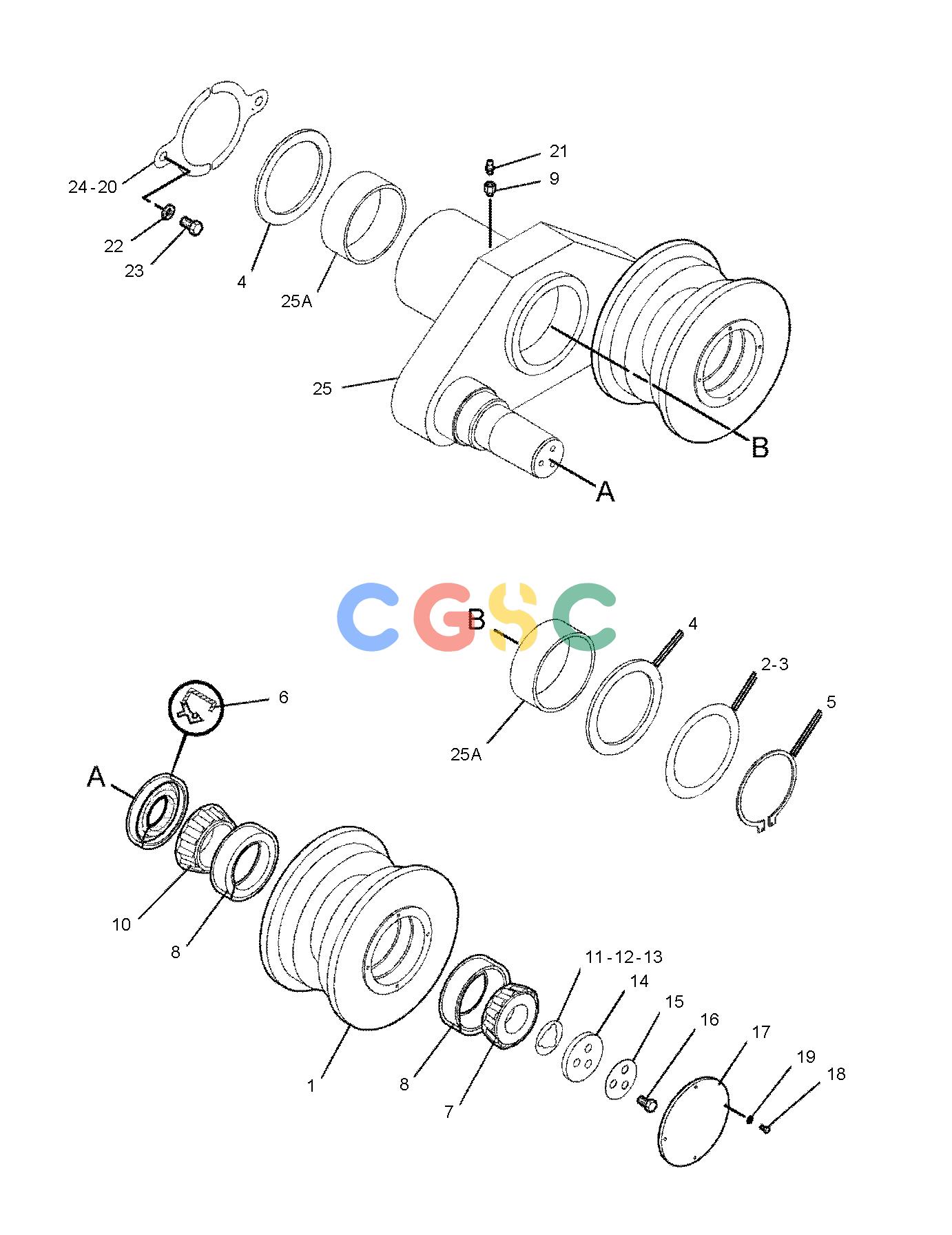

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 5E-7941 | [2] | ROLLER-TRACK | |
| 2. | 105-9058B | [4] | SHIM(1.5-MM THK) | |
| 3. | 105-9059B | [1] | SHIM(0.51-MM THK) | |
| 4. | 105-9066 | [2] | WASHER-HARD(128.25X165X6.35-MM THK) | |
| 5. | 105-9067 | [1] | RING-SNAP | |
| 6. | 1J-4034 | [2] | SEAL-LIP TYPE | |
| 7. | 006-7232 | [2] | CONE-BEARING | |
| 8. | 006-7231 | [4] | CUP-BEARING | |
| 9. | 6K-6967 | [1] | ADAPTER-PIPE | |
| 10. | 4D-3882 | [2] | CONE-BEARING | |
| 11. | 7R-0229B | [6] | SHIM(0.005-IN THK) | |
| 12. | 7R-0230B | [6] | SHIM(0.007-IN THK) | |
| 13. | 7R-0231B | [10] | SHIM(0.02-IN THK) | |
| 14. | 109-1500 | [2] | PLATE | |
| 15. | 7R-0228 | [2] | PLATE-LOCK | |
| 16. | 8T-8917 | [6] | BOLT(1/2-13X1.25-IN) | |
| 17. | 7R-0226 | [2] | PLATE-COVER | |
| 18. | 4M-0061 | [8] | BOLT(5/16-18X0.75-IN) | |
| 19. | 8T-4224 | [8] | WASHER-HARD(8.8X16X2-MM THK) | |
| 20. | 124-1441B | [2] | SHIM(0.51-MM THK) | |
| 21. | 3B-8489 | [1] | FITTING-GREASE(1/8-27 PTF) | |
| 22. | 8T-4223 | [2] | WASHER-HARD(13.5X25.5X3-MM THK) | |
| 23. | 8T-9384 | [2] | BOLT(1/2-13X0.875-IN) | |
| 24. | 124-1440B | [8] | SHIM(1.5-MM THK) | |
| 25. | 114-1890 | [1] | FRAME AS | |
| 25A. | 105-9072 | [2] | BUSHING | |
| | B | | USE AS REQUIRED |
