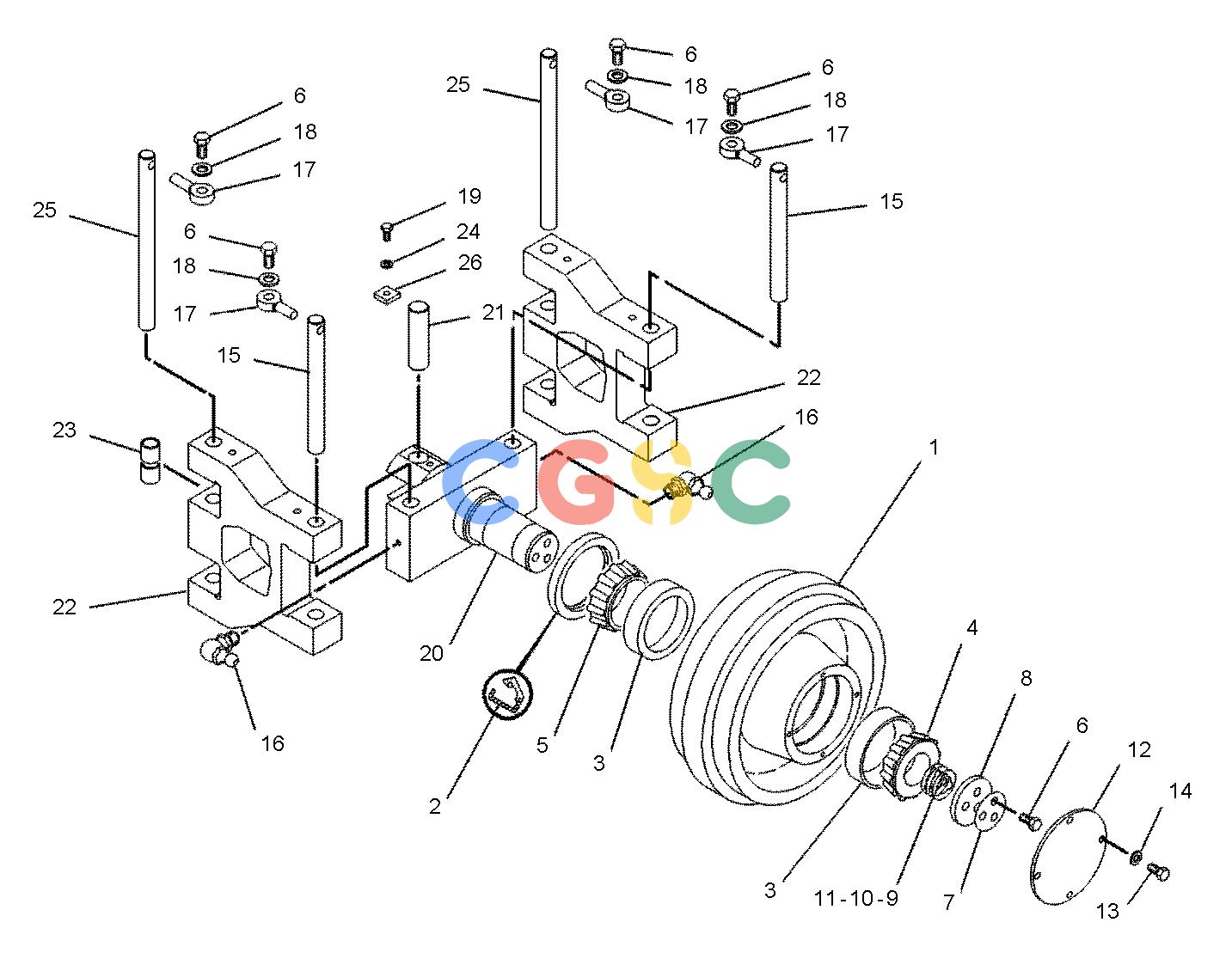

卡特零件查询（AP-1055D） 114-5539: IDLER GP-FRONT
广数供应链运营团队, 16 02月, 2025，浏览：
657 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 5E-7938 | [1] | IDLER | |
| 2. | 1J-4034 | [1] | SEAL-LIP TYPE | |
| 3. | 006-7231 | [2] | CUP-BEARING | |
| 4. | 006-7232 | [1] | CONE-BEARING | |
| 5. | 4D-3882 | [1] | CONE-BEARING | |
| 6. | 8T-8917 | [7] | BOLT(1/2-13X1.25-IN) | |
| 7. | 7R-0228 | [1] | PLATE-LOCK | |
| 8. | 109-1500 | [1] | PLATE | |
| 9. | 7R-0229B | [3] | SHIM(0.005-IN THK) | |
| 10. | 7R-0230B | [3] | SHIM(0.007-IN THK) | |
| 11. | 7R-0231B | [5] | SHIM(0.02-IN THK) | |
| 12. | 7R-0226 | [1] | PLATE-COVER | |
| 13. | 4M-0061 | [4] | BOLT(5/16-18X0.75-IN) | |
| 14. | 8T-4224 | [4] | WASHER-HARD(8.8X16X2-MM THK) | |
| 15. | 108-1792 | [2] | PIN | |
| 16. | 3B-8485 | [2] | ELBOW | |
| 17. | 5E-7940 | [4] | KEEPER | |
| 18. | 8T-4223 | [4] | WASHER-HARD(13.5X25.5X3-MM THK) | |
| 19. | 2D-4534 | [1] | BOLT-SOCKET HEAD(3/8-16X1-IN) | |
| 20. | 115-9254 | [1] | SHAFT AS-IDLER | |
| 21. | 108-1793 | [1] | PIN | |
| 22. | 116-3039 | [2] | LINK-TRACK | |
| 23. | 5H-3895 | [8] | BUSHING-TERMINAL | |
| 24. | 8T-4896 | [1] | WASHER-HARD(10.2X18.5X2.5-MM THK) | |
| 25. | 108-1791 | [2] | PIN | |
| 26. | 9N-7083 | [1] | RETAINER | |
| | B | | USE AS REQUIRED |
