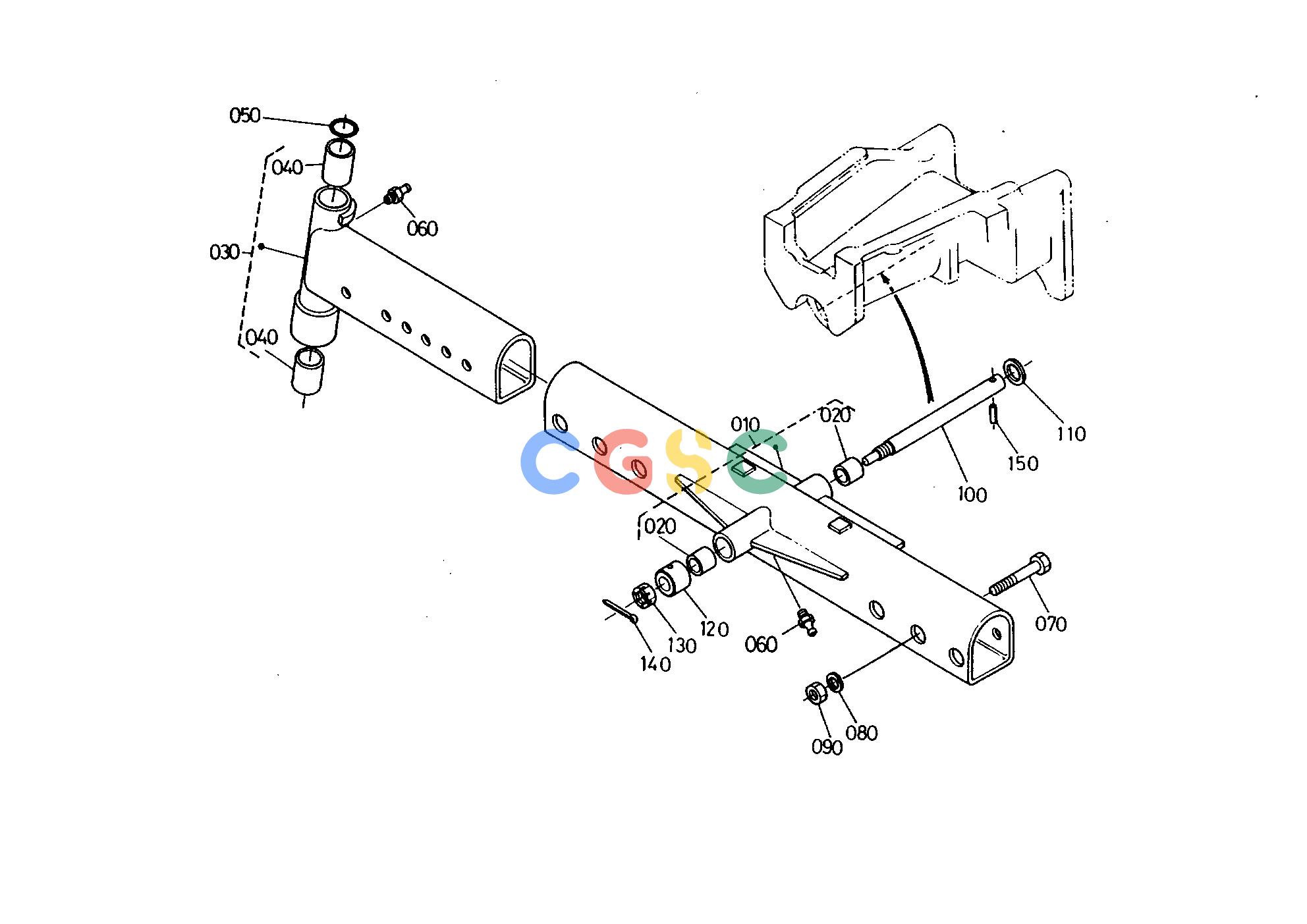

久保田零件查询T06500 FRONT AXLE FRONT AXLE AND FRONT WHEELEPC Kubota online
广数供应链运营团队, 16 02月, 2025，浏览：
886 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 010. |
3426013110
|
[1] |
AXLE FRONT MIDDLE
|
28.8200(lbs); 13.100
|
| 020. |
3215011530
|
[2] |
BUSH
|
0.1386(lbs); 0.063
|
| 030. |
3422013120
|
[2] |
AXLE FRONT OUTER
|
11.0000(lbs); 5.000
|
| 040. |
3215011530
|
[4] |
BUSH
|
0.1386(lbs); 0.063
|
| 050. |
0481100280
|
[2] |
O RING
|
0.0044(lbs); 0.002
|
| 060. |
0661310010
|
[3] |
NIPPLE GREASE
|
0.0132(lbs); 0.006
|
| 070. |
0117351485
|
[4] |
BOLT
|
0.2398(lbs); 0.109
|
| 080. |
0451250140
|
[4] |
WASHER SPRING
|
0.0220(lbs); 0.010
|
| 090. |
0217650140
|
[4] |
NUT
|
0.0308(lbs); 0.014
|
| 100. |
3730013410
|
[1] |
PIN CENTER
|
2.7720(lbs); 1.260
|
| 110. |
3422013450
|
[1] |
COLLAR
|
0.0462(lbs); 0.021
|
| 120. |
3730013460
|
[1] |
COLLAR ADJUSTING
|
0.5060(lbs); 0.230
|
| 130. |
3221013480
|
[1] |
NUT ADJUSTING
|
0.2464(lbs); 0.112
|
| 140. |
0551150440
|
[1] |
PIN SPLIT
|
0.0088(lbs); 0.004
|
| 150. |
0541101050
|
[1] |
PIN SPRING
|
0.0418(lbs); 0.019
|
