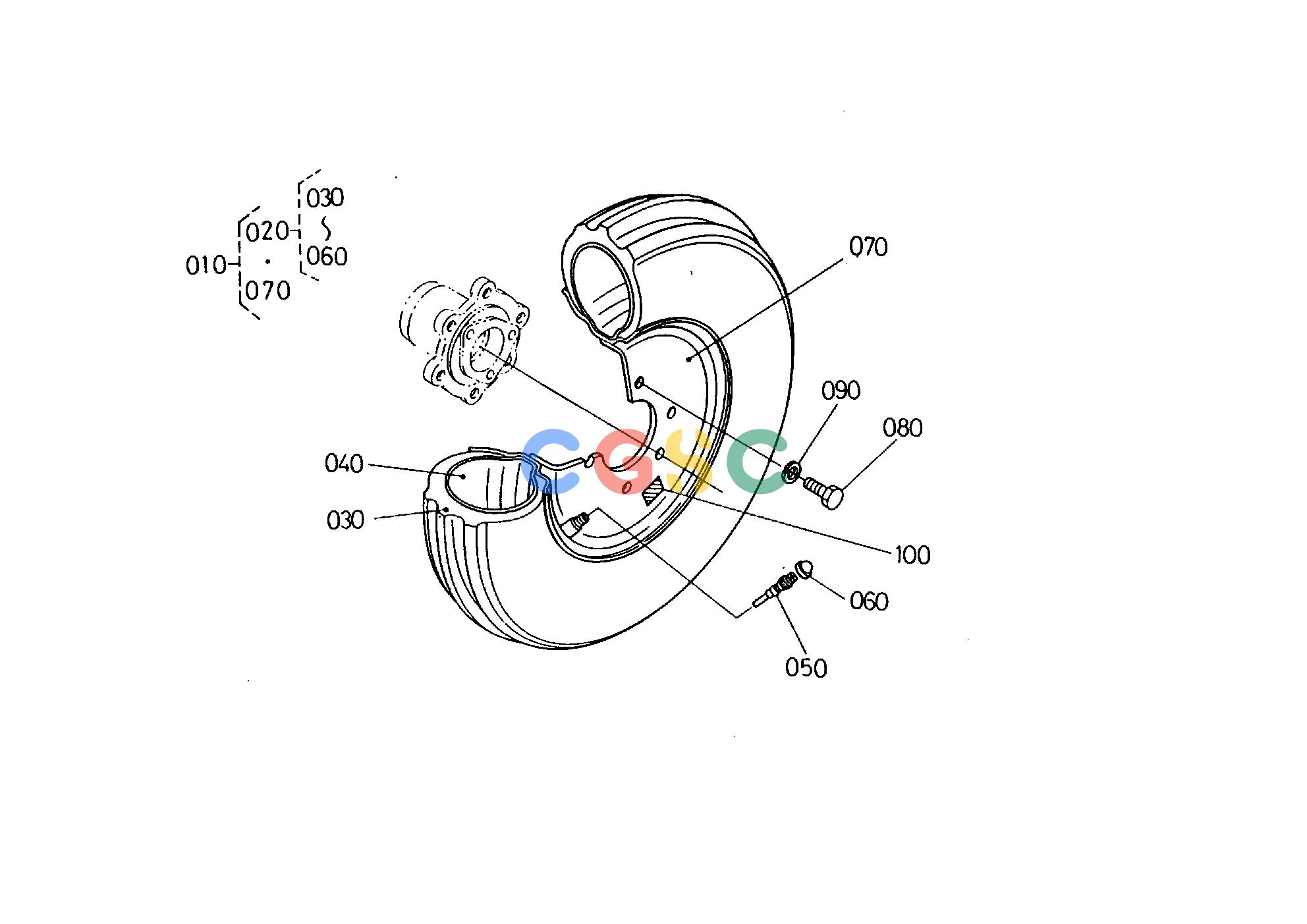

久保田零件查询T06700 FRONT WHEEL(5.00-15) FRONT AXLE AND FRONT WHEELEPC Kubota online
广数供应链运营团队, 16 02月, 2025，浏览：
511 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 010. |
3227011600
|
[2] |
ASSY FRONT WHEEL
|
31.9000(lbs); 14.500
|
| 020. |
3227011610
|
[2] |
ASSY TIRE
|
16.5000(lbs); 7.500
|
| 030. |
3227011620
|
[2] |
TIRE
|
13.8600(lbs); 6.300
|
| 040. |
3227011630
|
[2] |
TUBE
|
2.0900(lbs); 0.950
|
| 050. |
3227011680
|
[2] |
CORE VALVE
|
0.0440(lbs); 0.020
|
| 060. |
3824011690
|
[2] |
CAP VALVE
|
0.0044(lbs); 0.002
|
| 070. |
3227011640
|
[2] |
ASSY WHEEL
|
16.5000(lbs); 7.500
|
| 080. |
0117351225
|
[12] |
BOLT
|
0.0726(lbs); 0.033
|
| 090. |
0451250120
|
[12] |
WASHER SPRING
|
0.0066(lbs); 0.003
|
| 100. |
3530011700
|
[1] |
LABEL AIR PRESSURE
|
0.0022(lbs); 0.001
|
