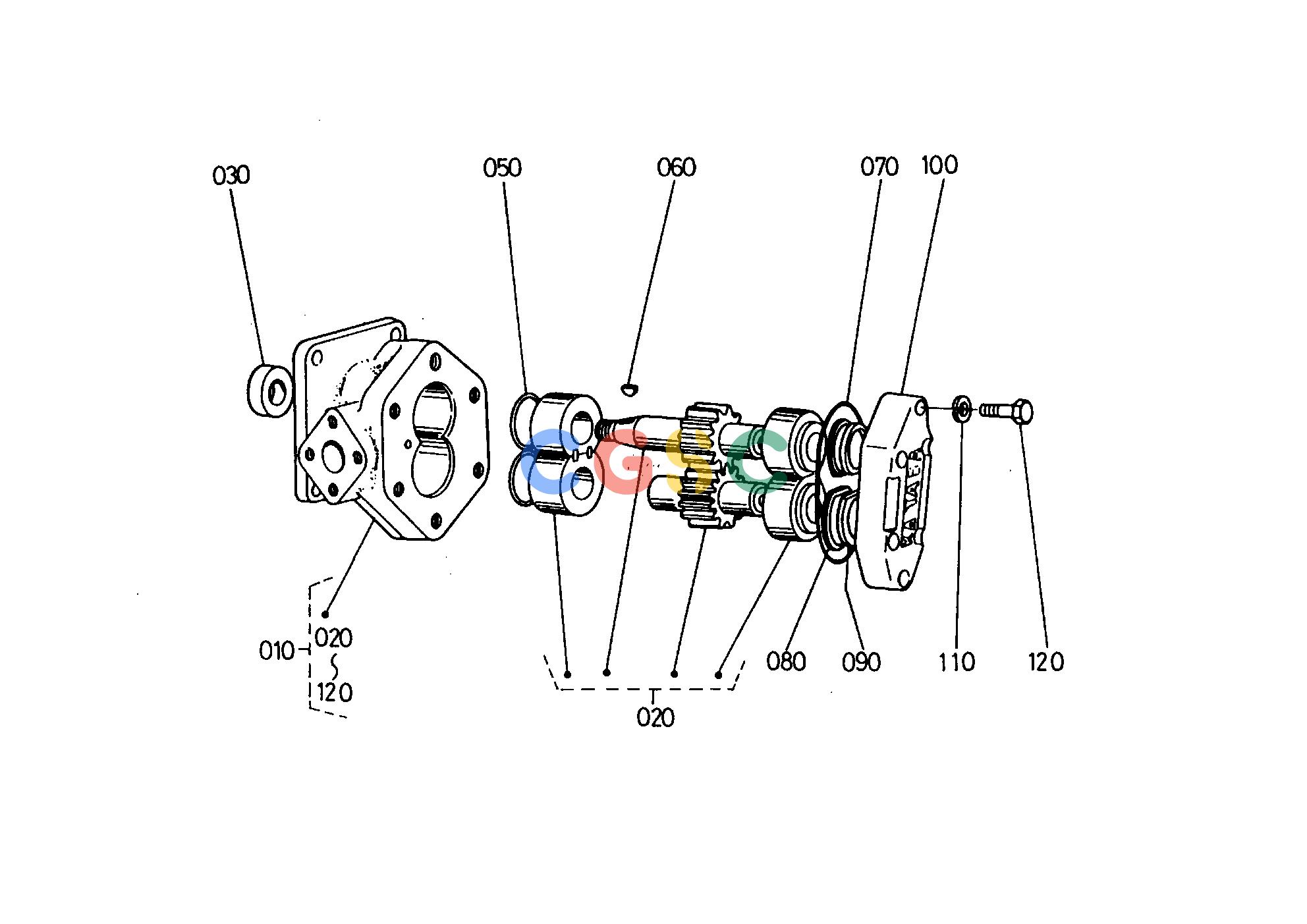

久保田零件查询T08201 HYDRAULIC PUMP [COMPONENT PARTS] ## S.No.;<=11183 HYDRAULIC SYSTEMEPC Kubota online
广数供应链运营团队, 16 02月, 2025，浏览：
791 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 010. |
3715036100
|
[1] |
PUMP HYDRAULIC
|
0.0000(lbs); 0.000
|
| 020. |
3715036200
|
[1] |
ASSY GEAR AND BUSH
|
1.3970(lbs); 0.635
|
| 030. |
3715036230
|
[1] |
SEAL OIL
|
0.0154(lbs); 0.007
|
| 050. |
3227036260
|
[2] |
O RING
|
0.0022(lbs); 0.001
|
| 060. |
3227036210
|
[1] |
KEY WOODRUFF
|
0.0044(lbs); 0.002
|
| 070. |
3227036220
|
[1] |
O RING
|
0.0022(lbs); 0.001
|
| 080. |
3227036250
|
[2] |
RING SEAL
|
0.0022(lbs); 0.001
|
| 090. |
3227036240
|
[2] |
RING SUPPORT
|
0.0110(lbs); 0.005
|
| 100. |
3715036180
|
[1] |
COVER
|
0.5500(lbs); 0.250
|
| 110. |
0451250080
|
[6] |
WASHER SPRING
|
0.0044(lbs); 0.002
|
| 120. |
0115650825
|
[6] |
BOLT
|
0.0286(lbs); 0.013
|
