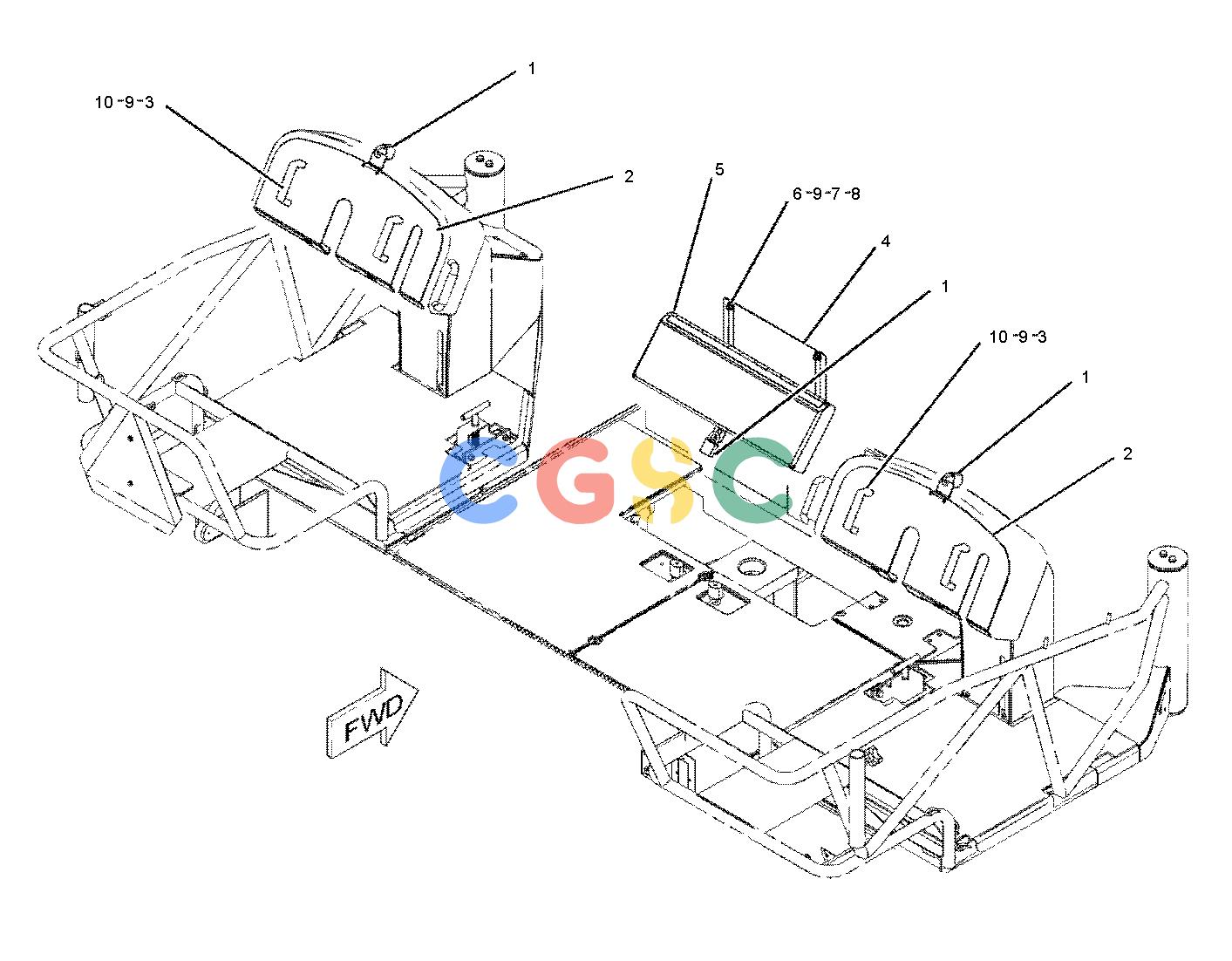

| Pos. | Part No | Qty | Parts name | Comments |
|---|---|---|---|---|
| 1. | 246-2641 | [3] | PADLOCK GP | |
| (EACH INCLUDES) | ||||
| 5P-8500 | [1] | KEY | ||
| 2. | 201-0350 | [2] | COVER | |
| 3. | 216-8313 | [4] | HANDLE | |
| 4. | 240-7168 | [1] | COVER | |
| 5. | 249-8638 | [1] | COVER AS | |
| 6. | 5C-7261M | [4] | NUT(M8X1.25-THD) | |
| 7. | 6V-1626 | [4] | GROMMET | |
| 8. | 6V-9189M | [4] | LOCKNUT(M8X1.25-THD) | |
| 9. | 8T-4224 | [16] | WASHER-HARD(8.8X16X2-MM THK) | |
| 10. | 8T-5391 | [8] | BOLT(5/16-18X0.5-IN) | |
| M | METRIC PART | |||
