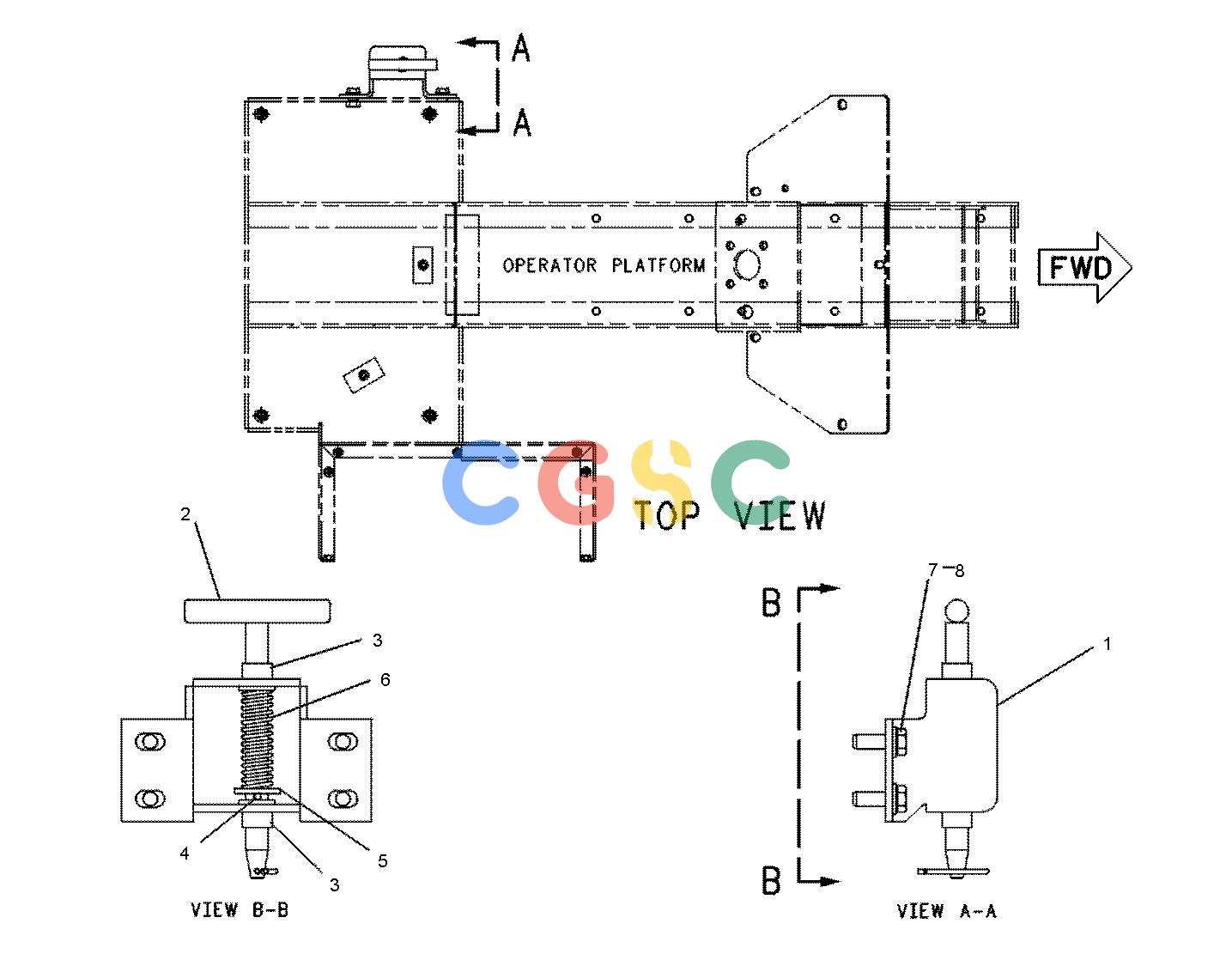

| Pos. | Part No | Qty | Parts name | Comments |
|---|---|---|---|---|
| 1. | 101-9560 | [1] | PLATE | |
| 2. | 1G-9434 | [1] | PIN AS | |
| 3. | 133-7864 | [2] | BUSHING | |
| 4. | 1H-1200 | [1] | PIN-SPRING | |
| 5. | 8T-4122 | [1] | WASHER-HARD(17X32X3.5-MM THK) | |
| 6. | 1U-5004 | [1] | SPRING | |
| 7. | 8T-4121 | [4] | WASHER-HARD(11X21X2.5-MM THK) | |
| 8. | 8T-4136M | [4] | BOLT(M10X1.5X25-MM) | |
| M | METRIC PART | |||
