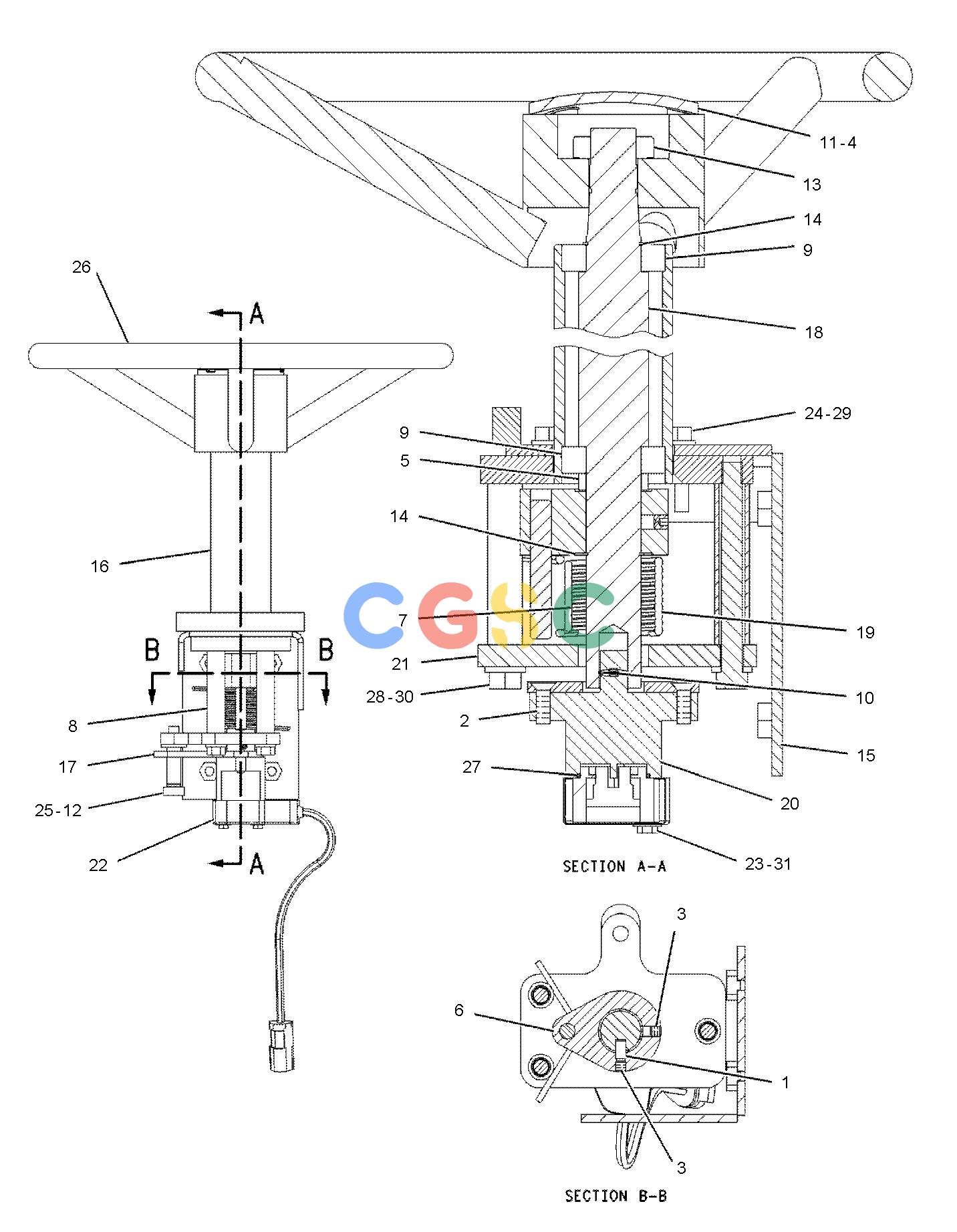

卡特零件查询（AP-1055D） 198-9009: STEERING COLUMN GP
广数供应链运营团队, 16 02月, 2025，浏览：
152 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 1B-8714 | [1] | KEY-WOODRUFF | |
| 2. | 4B-1282 | [2] | SCREW-MACHINE(1/4-20X0.75-IN) | |
| 3. | 4B-9806 | [2] | SETSCREW-SOCKET(1/4-20X0.25-IN) | |
| 4. | 6V-5834 | [3] | SCREW-HEAD(10-14X0.75-IN) | |
| 5. | 7R-5369 | [1] | TUBE | |
| 6. | 7R-5370 | [1] | ARM AS | |
| 7. | 7R-5382 | [1] | SPRING | |
| 8. | 7R-5383 | [3] | TUBE | |
| 9. | 7X-9959 | [2] | BEARING | |
| 10. | 8T-7566 | [1] | PIN-SPRING | |
| 11. | 9M-7362 | [1] | COVER | |
| 12. | 9X-6270 | [1] | BOLT-SPECIAL | |
| 13. | 000-6321 | [1] | NUT(13/16-20-THD) | |
| 14. | 081-7511 | [2] | RING | |
| 15. | 108-4712 | [1] | BRACKET AS-MOTOR | |
| 16. | 139-3304 | [1] | TUBE AS | |
| 17. | 150-6598 | [1] | ARM | |
| 18. | 169-6877 | [1] | SHAFT-STEERING | |
| 19. | 250-3949 | [1] | SPACER | |
| 20. | 169-8332 | [1] | BLOCK AS-MOUNTING | |
| 21. | 169-8700 | [1] | PLATE | |
| 22. | 195-8090Y | [1] | SENSOR GP-POSITION(STEERING) | |
| 23. | 4B-4274 | [2] | WASHER(5.5X13X1.2-MM THK) | |
| 24. | 4M-0061 | [4] | BOLT(5/16-18X0.75-IN) | |
| 25. | 5P-1075 | [1] | WASHER-HARD(10.2X22.5X3-MM THK) | |
| 26. | 6G-5374 | [1] | STEERING WHEEL | |
| 27. | 6V-0894 | [1] | SEAL-O-RING | |
| 28. | 7X-0291 | [3] | BOLT(3/8-16X3.75-IN) | |
| 29. | 8T-4224 | [4] | WASHER-HARD(8.8X16X2-MM THK) | |
| 30. | 8T-4896 | [3] | WASHER-HARD(10.2X18.5X2.5-MM THK) | |
| 31. | 8T-7368M | [2] | SCREW-MACHINE(10-32X28.58-MM) | |
| | M | | METRIC PART |
| | Y | | SEPARATE ILLUSTRATION |
