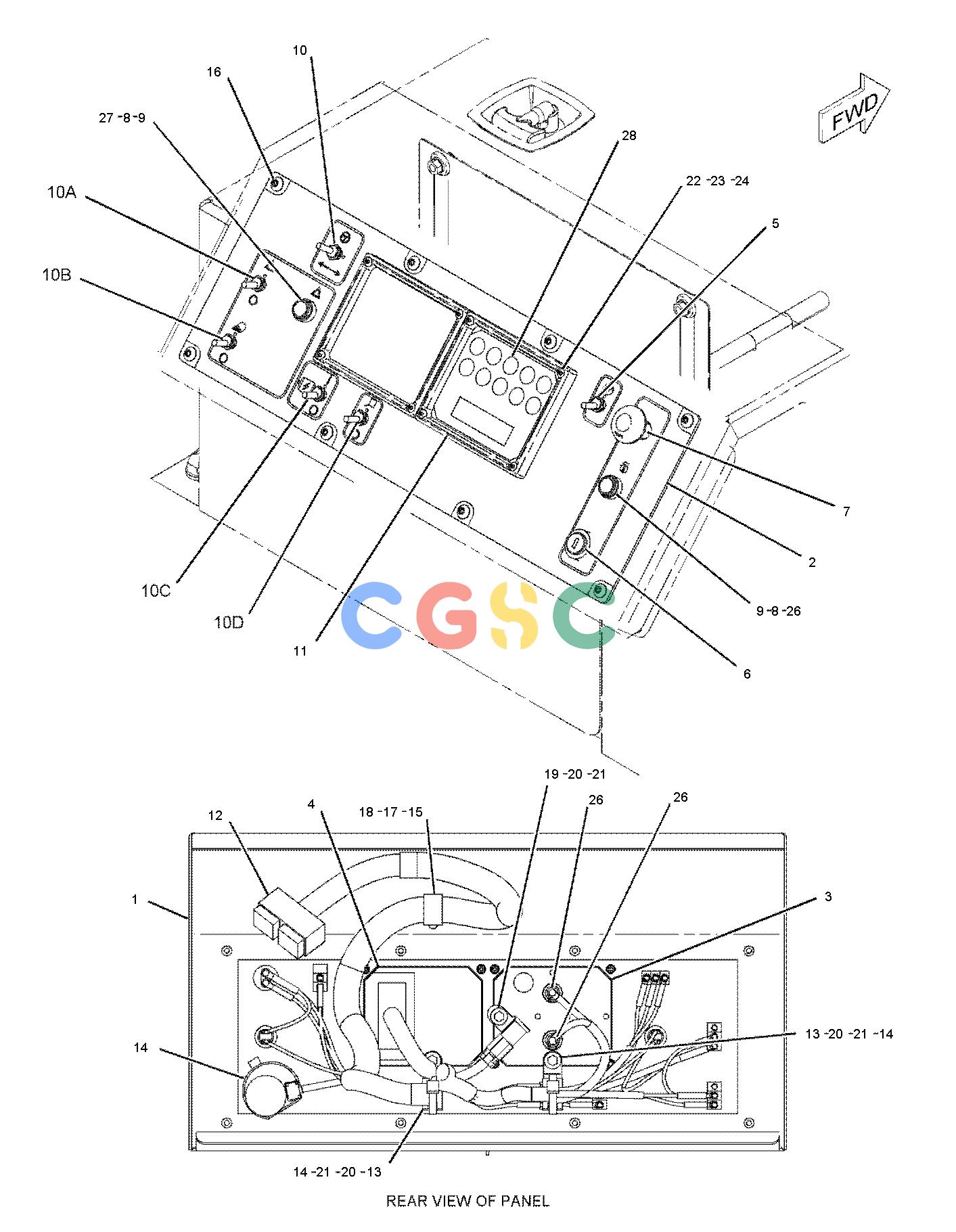

卡特零件查询（AP-1055D） 235-3511: PANEL GP-INSTRUMENT
广数供应链运营团队, 16 02月, 2025，浏览：
644 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 235-9715 | [1] | BOX AS | |
| 2. | 235-3520 | [1] | PLATE-PANEL | |
| 3. | 166-6943Y | [1] | MODULE GP-QUAD GAUGE | |
| 4. | 160-6567Y | [1] | CONTROL GP-UNPRGMED MONITOR(CATERPILLAR MONITORING SYSTEM) | |
| 5. | 9D-3721 | [1] | SWITCH-TOGGLE(SINGLE POLE)(MODE SCROLL) | |
| 6. | 110-7887 | [1] | SWITCH AS-START(KEY) | |
| | 186-3735 | [4] | PIN-CONNECTOR(16-GA TO 18-GA) | |
| | 7T-6799 | [1] | NUT-MOUNTING(1-32-THD) | |
| | 102-8804 | [1] | KIT-RECEPTACLE(4-PIN) | |
| | | | (INCLUDES RECEPTACLE AS & WEDGE) |
| 7. | 3T-2357 | [1] | SWITCH GP-PUSH BUTTON(HORN) | |
| | 2H-3922 | [1] | LOCKWASHER | |
| | 3B-4501 | [1] | LOCKWASHER | |
| | 5L-7200 | [1] | SCREW(8-32X0.375-IN) | |
| | 6V-8363 | [2] | SCREW(10-32X0.312-IN) | |
| | 6V-8370 | [1] | NUT-HEX(3/4-32-THD) | |
| | 7T-9515 | [1] | KNOB-HORN | |
| | 8F-1434 | [2] | LOCKWASHER | |
| | 9X-0199 | [1] | BOOT-SWITCH | |
| 8. | 9D-3127 | [2] | BASE AS-INDICATOR LIGHT | |
| | | | (EACH INCLUDES) |
| | 6V-8367 | [1] | LOCKWASHER | |
| | 6V-8382 | [1] | NUT-HEX(11/16-27-THD) | |
| 9. | 9D-2868 | [2] | LENS-RED | |
| 10. | 4D-1836 | [1] | SWITCH-TOGGLE(OPERATOR STATION SELECT) | |
| 10A. | 4D-1836 | [1] | SWITCH-TOGGLE(HAZARD WARNING LIGHTS) | |
| 10B. | 4D-1836 | [1] | SWITCH-TOGGLE(WORK LIGHTS) | |
| 10C. | 4D-1836 | [1] | SWITCH-TOGGLE(GENERATOR) | |
| 10D. | 4D-1836 | [1] | SWITCH-TOGGLE(SCREED COUNTERBALANCE) | |
| 11. | 100-5566 | [2] | BEZEL | |
| 12. | 235-3521 | [1] | HARNESS AS-PANEL(CENTER CONSOLE) | |
| 13. | 4P-7581 | [2] | CLIP(LADDER)(LADDER) | |
| 14. | 7K-1181 | [3] | STRAP-CABLE | |
| 15. | 6V-1889 | [1] | CLIP(LOOP)(SLOT) | |
| 16. | 9X-2044M | [8] | SCREW-TRUSS HEAD(M6X1X16-MM) | |
| 17. | 8T-4224 | [1] | WASHER-HARD(8.8X16X2-MM THK) | |
| 18. | 5C-7261M | [1] | NUT(M8X1.25-THD) | |
| 19. | 116-0118 | [1] | CLIP(SLOT) | |
| 20. | 4B-5269 | [3] | WASHER(7.9X19X1.6-MM THK) | |
| 21. | 8T-4171M | [3] | BOLT(M6X1X12-MM) | |
| 22. | 143-1284M | [8] | SCREW-BUTTON HEAD(M5X0.8X30-MM) | |
| 23. | 8T-0328 | [8] | WASHER-HARD(5.5X10X1-MM THK) | |
| 24. | 179-4324M | [8] | LOCKNUT(M5X0.8-THD) | |
| 26. | 7N-5876 | [3] | LAMP(24-VOLT, 0.2-AMPERE) | |
| 27. | 116-5270 | [1] | LAMP(24-VOLT)(ENGINE OVERSPEED INDICATOR) | |
| 28. | | [1] | FILM-MONITOR(INSTRUMENT PANEL) |
| | M | | METRIC PART |
| | Y | | SEPARATE ILLUSTRATION |
