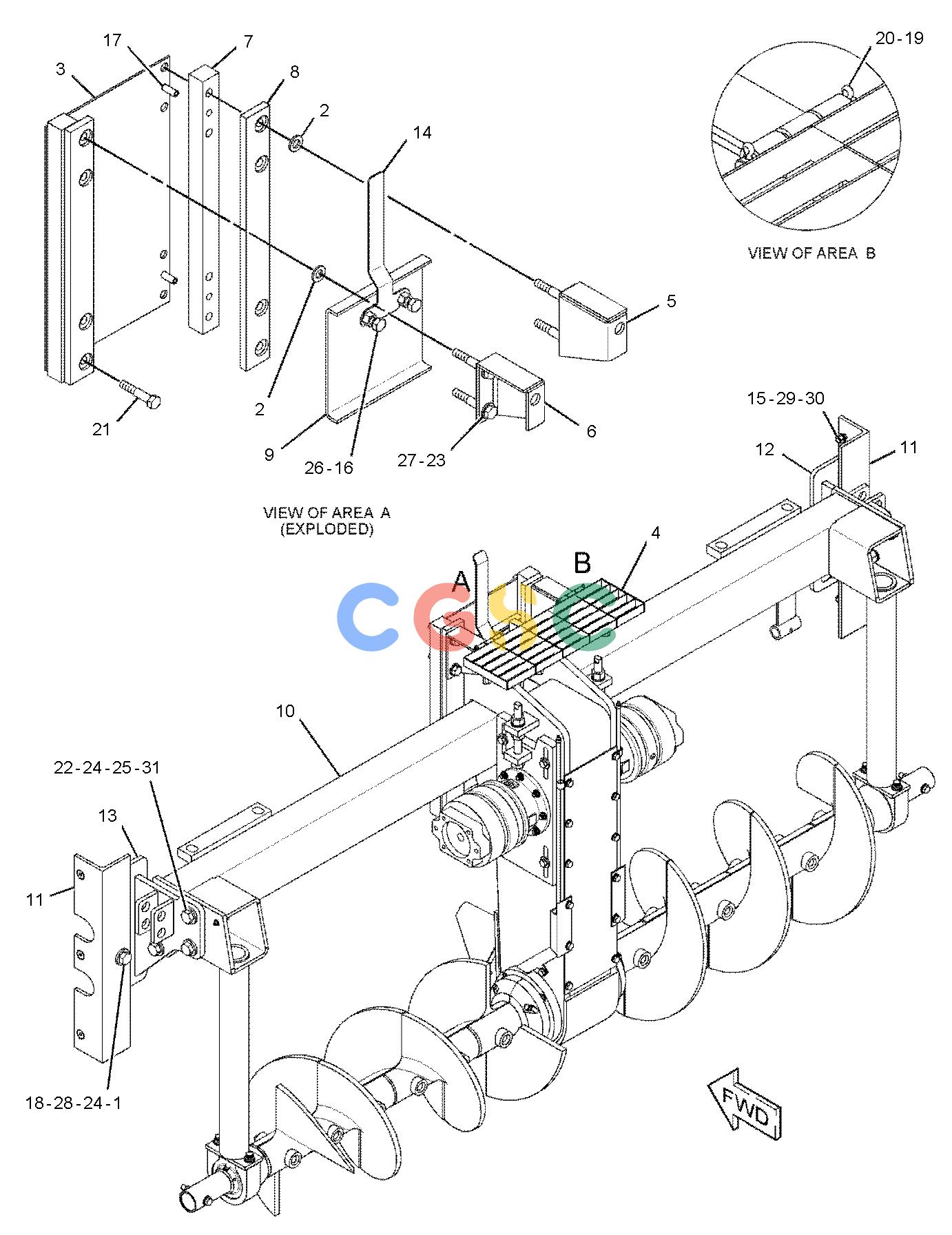

卡特零件查询（AP-1055D） 224-5776: CONVEYOR & MTG GP-AUGER
广数供应链运营团队, 16 02月, 2025，浏览：
449 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 3P-9111 | [2] | SPACER(23X41.3X19-MM THK) | |
| 2. | 9U-9510 | [4] | PLATE | |
| 3. | 103-0155 | [1] | PLATE | |
| 4. | 118-6815 | [1] | STEP AS | |
| 5. | 118-6934 | [1] | BRACKET AS(RH) | |
| 6. | 118-7203 | [1] | BRACKET AS(LH) | |
| 7. | 170-1224 | [2] | BAR | |
| 8. | 170-1225 | [2] | BAR | |
| 9. | 191-4423 | [1] | PLATE | |
| 10. | 230-5481Y | [1] | CONVEYOR GP-AUGER | |
| 11. | 233-6133 | [2] | ANGLE | |
| 12. | 235-9646 | [1] | SUPPORT AS(RH) | |
| 13. | 235-9647 | [1] | SUPPORT AS(LH) | |
| 14. | 249-5220 | [1] | PLATE | |
| 15. | 123-0354M | [6] | SCREW-FLAT HEAD(M12X1.75X35-MM) | |
| 16. | 099-0169M | [4] | BOLT(M16X2X55-MM) | |
| 17. | 2K-9062 | [4] | PIN-SPRING | |
| 18. | 6V-7688M | [2] | LOCKNUT(M20X2.5-THD) | |
| 19. | 7F-3288 | [2] | PIN | |
| 20. | 7J-5925 | [4] | PIN-COTTER | |
| 21. | 7X-2555M | [4] | BOLT(M16X2X80-MM) | |
| 22. | 8T-4141M | [6] | BOLT(M20X2.5X70-MM) | |
| 23. | 8T-4122 | [4] | WASHER-HARD(17X32X3.5-MM THK) | |
| 24. | 8T-5439 | [10] | WASHER-HARD(21.5X45X6-MM THK) | |
| 25. | 8T-4131M | [6] | NUT(M20X2.5-THD) | |
| 26. | 8T-4132M | [4] | NUT(M16X2-THD) | |
| 27. | 8T-4175M | [4] | BOLT(M16X2X90-MM) | |
| 28. | 8T-4187M | [2] | BOLT(M20X2.5X80-MM) | |
| 29. | 8T-4223 | [6] | WASHER-HARD(13.5X25.5X3-MM THK) | |
| 30. | 8T-4244M | [6] | NUT(M12X1.75-THD) | |
| 31. | 8T-4123 | [6] | WASHER(3.62X5.75X0.375-MM THK) | |
| | M | | METRIC PART |
| | Y | | SEPARATE ILLUSTRATION |
