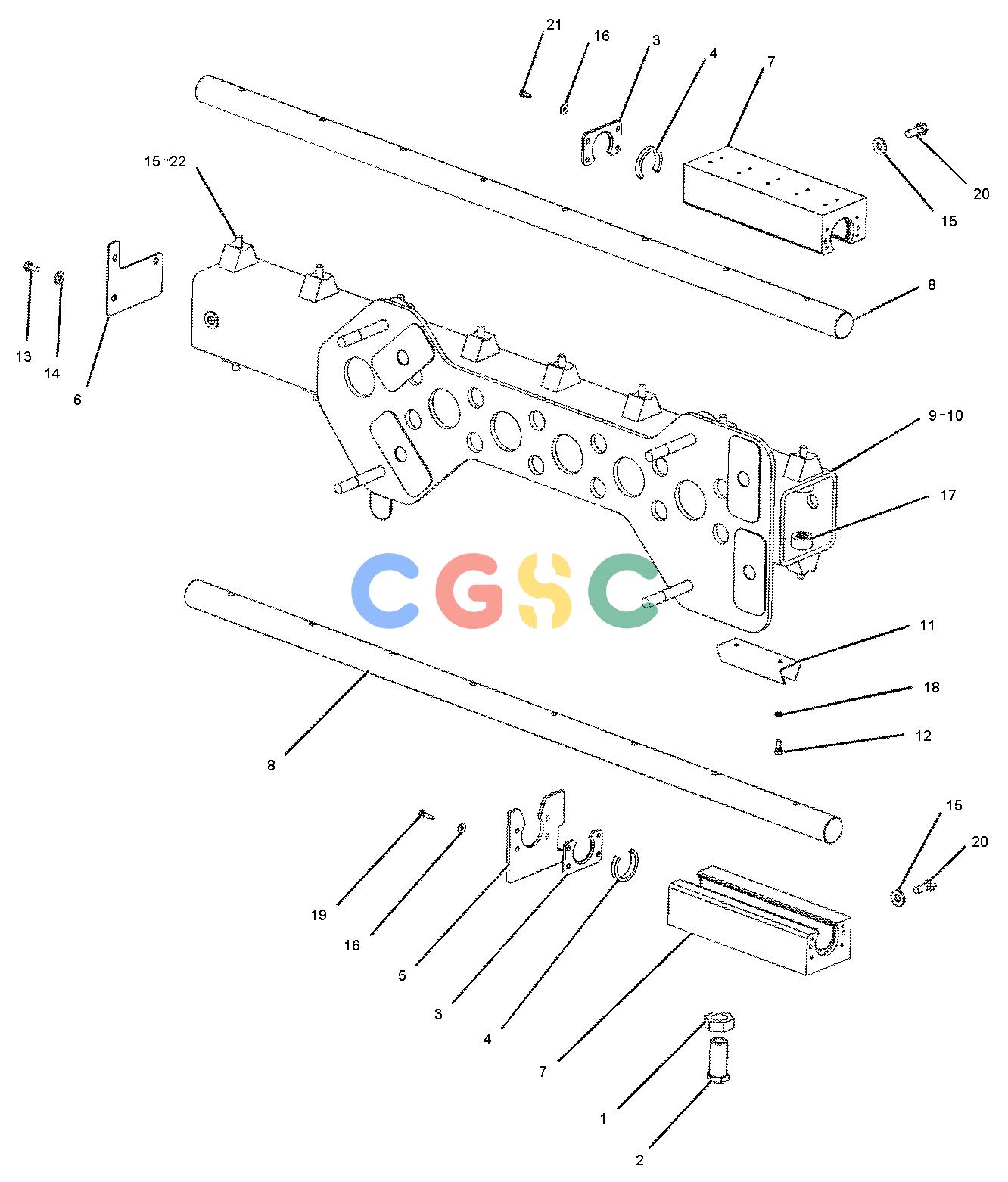

卡特零件查询（AP-1055D） 239-5628: CARRIAGE GP-EXTENDER
广数供应链运营团队, 16 02月, 2025，浏览：
842 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 1A-4168 | [6] | NUT(1-1/4-12-THD) | |
| 2. | 8I-0184 | [6] | NUT-ADJUSTMENT(1-1/4-12-THD) | |
| 3. | 185-5425 | [4] | SCRAPER | |
| 4. | 196-2557 | [4] | SCRAPER AS | |
| 5. | 206-6711 | [2] | PLATE | |
| 6. | 217-7684 | [2] | COVER | |
| 7. | 218-1857 | [4] | HOUSING AS | |
| 8. | 239-3554 | [4] | SHAFT-SLIDE | |
| 9. | 239-4138 | [1] | FRAME AS(RH) | |
| 10. | 239-4139 | [1] | FRAME AS(LH) | |
| 11. | 241-0203 | [14] | CHANNEL | |
| 12. | 4M-0061 | [28] | BOLT(5/16-18X0.75-IN) | |
| 13. | 5M-3062 | [6] | BOLT(3/8-16X0.75-IN) | |
| 14. | 5P-1075 | [6] | WASHER-HARD(10.2X22.5X3-MM THK) | |
| 15. | 5P-1076 | [52] | WASHER-HARD(13.5X30X4-MM THK) | |
| 16. | 5P-4115 | [16] | WASHER-HARD(7.2X19X2-MM THK) | |
| 17. | 5S-2389 | [4] | BOLT-SOCKET HEAD(1/2-13X2.75-IN) | |
| 18. | 8T-4224 | [28] | WASHER-HARD(8.8X16X2-MM THK) | |
| 19. | 8T-8908 | [8] | BOLT(1/4-20X1-IN) | |
| 20. | 8T-8917 | [24] | BOLT(1/2-13X1.25-IN) | |
| 21. | 8T-9364 | [8] | BOLT(1/4-20X0.625-IN) | |
| 22. | 8T-9389 | [28] | BOLT(1/2-13X2.75-IN) | |
