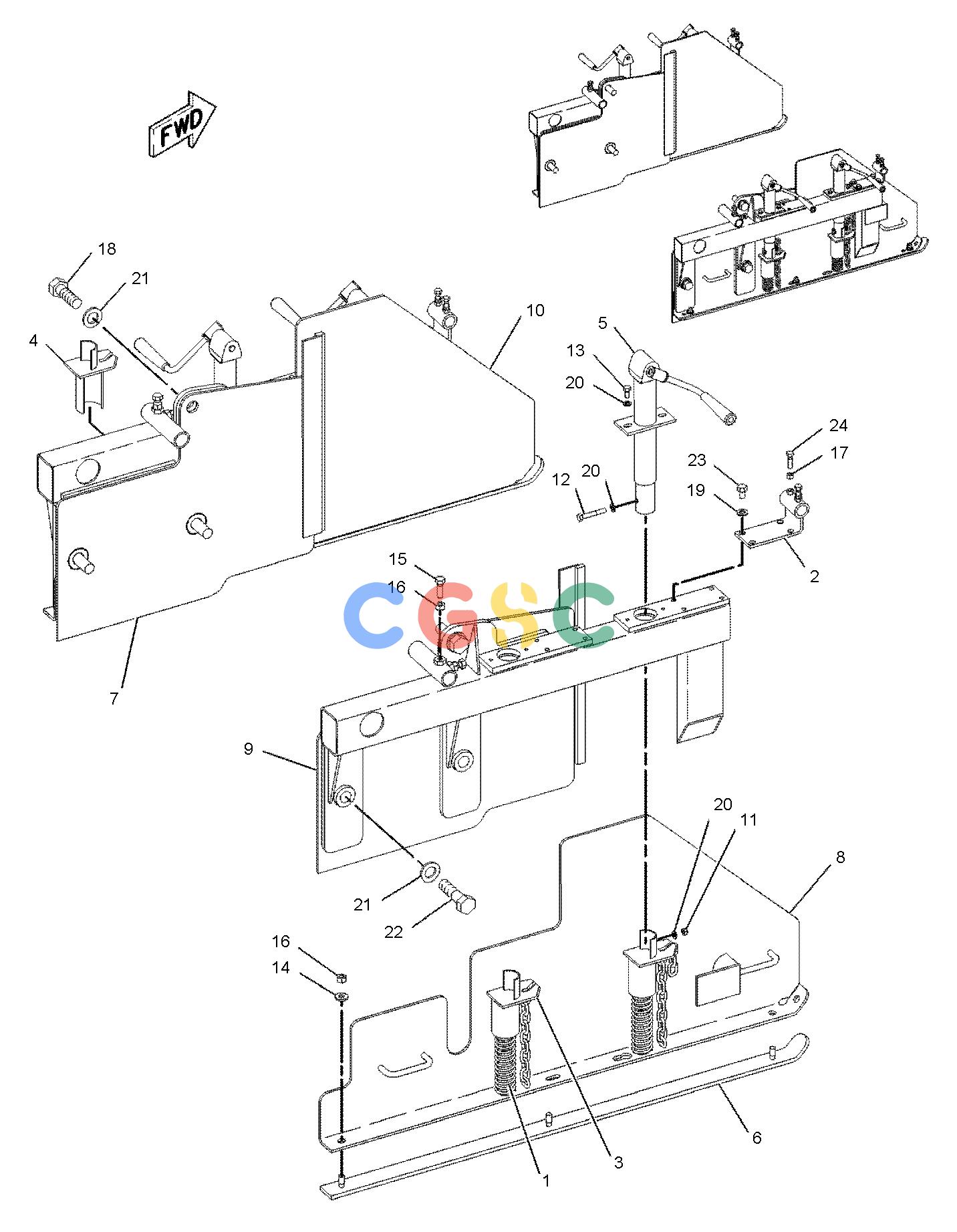

卡特零件查询（AP-1055D） 216-6989: GATE GP-END
广数供应链运营团队, 16 02月, 2025，浏览：
713 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 6J-3911 | [4] | SPRING | |
| 2. | 106-7135 | [2] | SUPPORT AS | |
| | | | (EACH INCLUDES) |
| | 6V-8801 | [2] | NUT(3/8-16-THD) | |
| 3. | 149-4855 | [2] | SUPPORT AS | |
| 4. | 170-1747 | [2] | SUPPORT AS | |
| 5. | 186-0135 | [4] | ACTUATOR GP(END GATE) | |
| 6. | 351-4474 | [2] | SHOE AS | |
| | | | (EACH INCLUDES) |
| | 5P-0494 | [3] | STUD-WELD(1/2-13X1.125-IN) | |
| 7. | 216-7080 | [1] | SUPPORT AS(LH) | |
| | 8T-5911 | [2] | NUT-WELD(1/2-13-THD) | |
| 8. | 216-7081 | [1] | PLATE AS(RH) | |
| | 102-2868 | [2] | GRIP-HANDLE | |
| | 108-7809G | | CHAIN(14-IN EACH) | |
| | 169-1800 | [2] | PIPE | |
| | 184-9883 | [1] | SPACER | |
| 9. | 216-7082 | [1] | SUPPORT AS(RH) | |
| | 8T-5911 | [2] | NUT-WELD(1/2-13-THD) | |
| 10. | 216-7083 | [1] | PLATE AS(LH) | |
| | 102-2868 | [2] | GRIP-HANDLE | |
| | 108-7809G | | CHAIN(14-IN EACH) | |
| | 169-1800 | [2] | PIPE | |
| | 184-9883 | [1] | SPACER | |
| 11. | 2K-4973 | [4] | LOCKNUT(3/8-16-THD) | |
| 12. | 4L-6459 | [4] | BOLT(3/8-16X2.5-IN) | |
| 13. | 5M-3062 | [8] | BOLT(3/8-16X0.75-IN) | |
| 14. | 5P-1076 | [6] | WASHER-HARD(13.5X30X4-MM THK) | |
| 15. | 5P-2566 | [4] | BOLT(1/2-13X1.5-IN) | |
| 16. | 6V-8188 | [10] | NUT(1/2-13-THD) | |
| 17. | 6V-8801 | [4] | NUT(3/8-16-THD) | |
| 18. | 7X-0406 | [2] | BOLT(1-8X3-IN) | |
| 19. | 8T-4223 | [8] | WASHER-HARD(13.5X25.5X3-MM THK) | |
| 20. | 8T-4896 | [16] | WASHER-HARD(10.2X18.5X2.5-MM THK) | |
| 21. | 8T-5361 | [6] | WASHER-HARD(28X49X5-MM THK) | |
| 22. | 8T-8927 | [4] | BOLT(1-8X3.75-IN) | |
| 23. | 8T-9383 | [8] | BOLT(1/2-13X0.75-IN) | |
| 24. | 9B-7237 | [4] | BOLT(3/8-16X1.25-IN) | |
| | G | | ORDER BY THE INCH |
