卡特零件查询（AP-1055D） 245-9083: EXTENSION GP-SCREED
广数供应链运营团队, 16 02月, 2025，浏览：
452 次

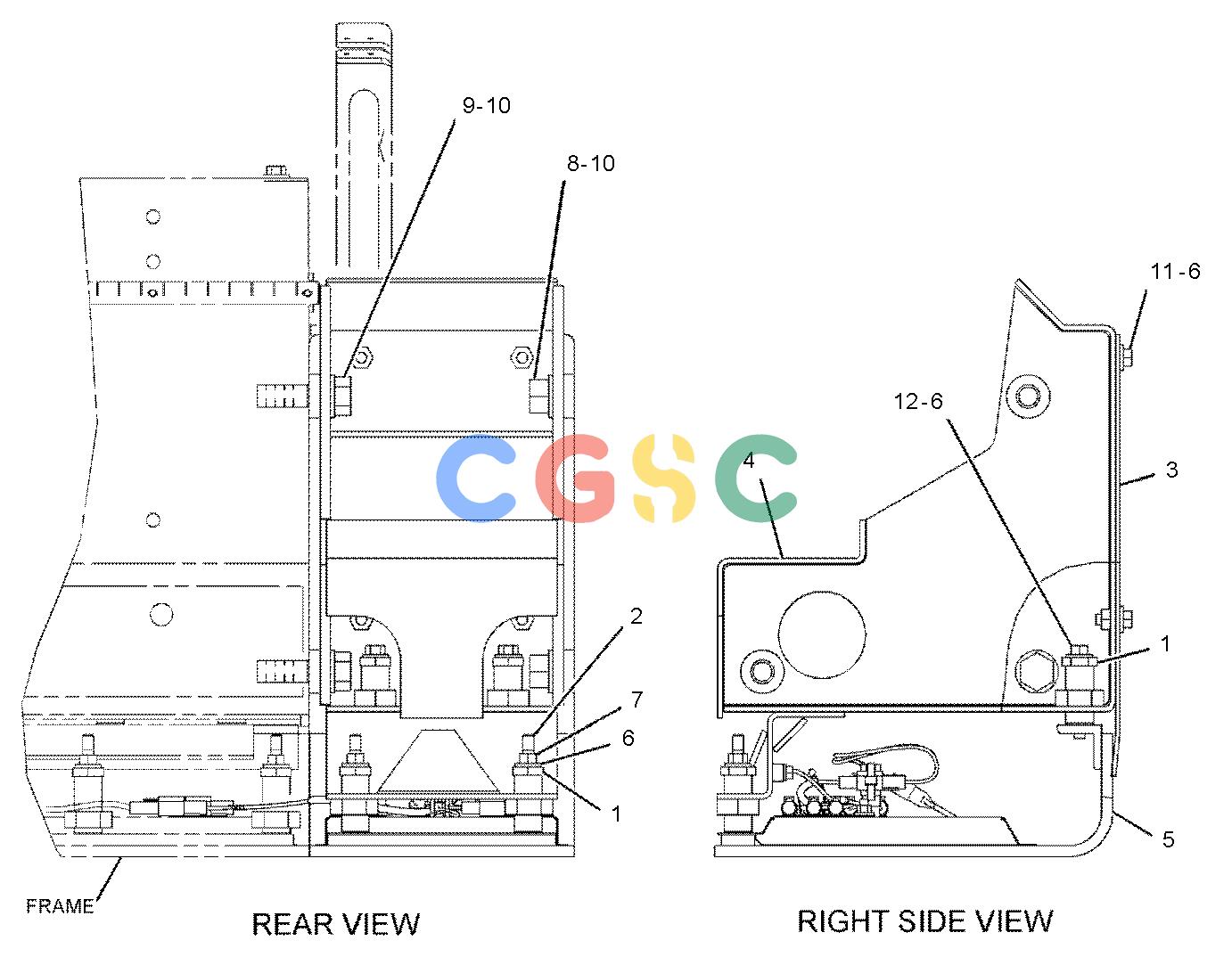

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 8I-0184 | [4] | NUT-ADJUSTMENT(1-1/4-12-THD) | |
| 2. | 8I-0212 | [2] | STUD(1/2-13X5-IN) | |
| 3. | 206-6759 | [1] | PLATE | |
| 4. | 206-6763 | [1] | FRAME AS | |
| | 1A-4168 | [4] | NUT(1-1/4-12-THD) | |
| | 8T-5911 | [4] | NUT-WELD(1/2-13-THD) | |
| 5. | 245-9079Y | [1] | PLATE GP-SCREED(ELECTRIC HEAT, 12-IN) | |
| 6. | 5P-1076 | [8] | WASHER-HARD(13.5X30X4-MM THK) | |
| 7. | 6V-8188 | [2] | NUT(1/2-13-THD) | |
| 8. | 6V-8190 | [3] | NUT(1-8-THD) | |
| 9. | 7X-0408 | [3] | BOLT(1-8X3.5-IN) | |
| 10. | 8T-5361 | [6] | WASHER-HARD(28X49X5-MM THK) | |
| 11. | 8T-8917 | [4] | BOLT(1/2-13X1.25-IN) | |
| 12. | 8T-9391 | [2] | BOLT(1/2-13X3.75-IN) | |
| | Y | | SEPARATE ILLUSTRATION |
