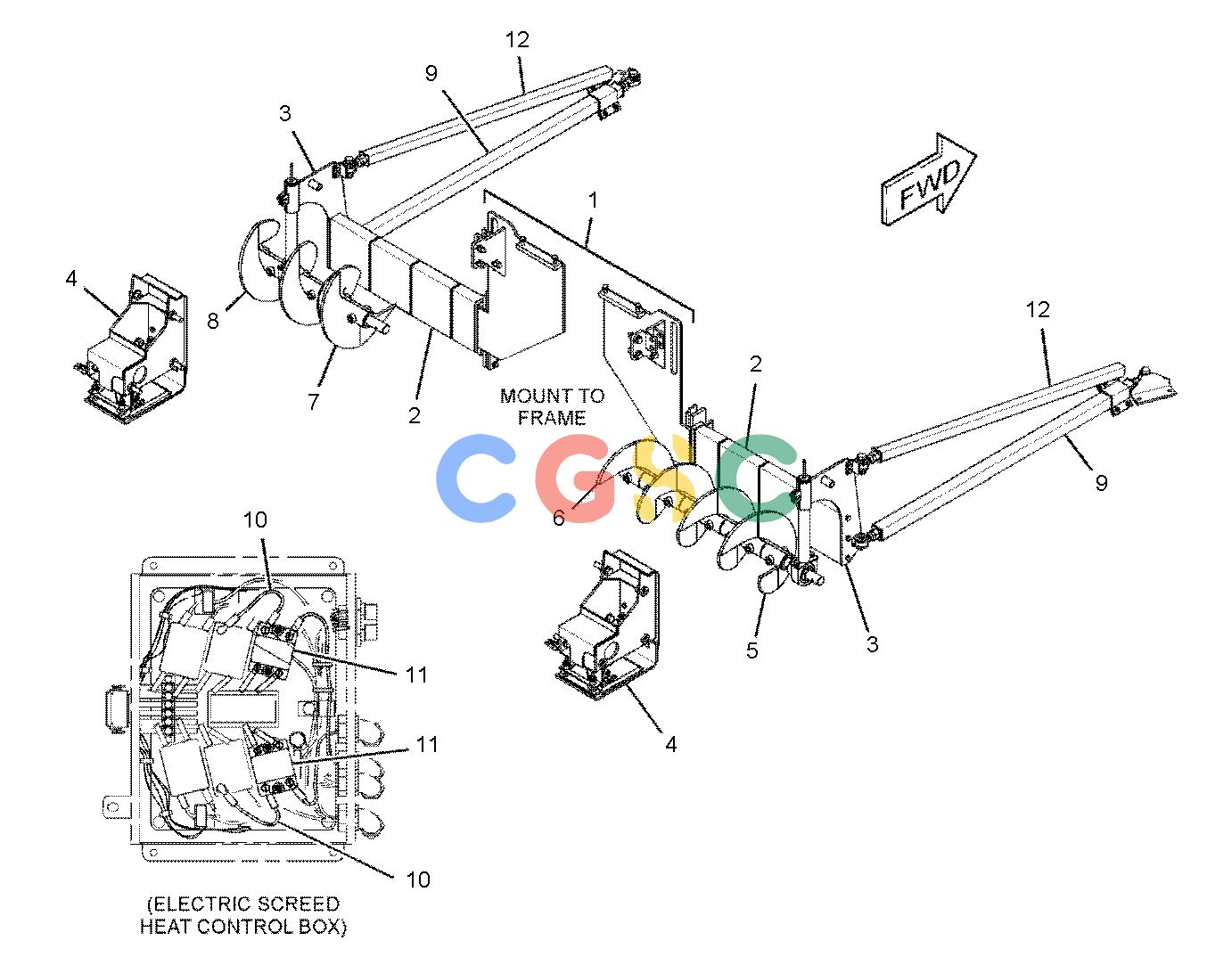

卡特零件查询（AP-1055D） 259-2391: EXTENSION GP-SCREED
广数供应链运营团队, 16 02月, 2025，浏览：
157 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| | 199-4206Y | [2] | EXTENSION GP-AUGER(12-IN, LH) | |
| | 198-8287Y | [2] | EXTENSION GP-AUGER(12-IN, RH) | |
| | 231-3532Y | [1] | EXTENSION GP-AUGER(6-IN) | |
| | 215-7553Y | [1] | EXTENSION GP-MAIN FRAME | |
| | 245-9081Y | [2] | EXTENSION GP-SCREED(ELECTRIC HEAT, 12-IN) | |
| | | | |
| | 9U-3672 | [2] | PLUG AS | |
| | | | (EACH INCLUDES) |
| | 102-8802 | [1] | KIT-RECEPTACLE(2-PIN) | |
| | | | (INCLUDES RECEPTACLE AS & WEDGE) |
| | 5P-5677D | | WIRE(18-GA, BLACK)(0.2-M) | |
| | 5P-9799D | | TUBE(HEAT SHRINK)(0.1-M) | |
| | 8T-8729 | [2] | PIN-CONNECTOR(16-GA TO 18-GA) | |
| | 255-5011B | [2] | RELAY AS(24-VOLT)(EXTENDER) | |
| | 246-3318 | [1] | TUBE AS | |
| | 306-7455B | [2] | WIRE AS | |
| | | | |
| | 3S-2093 | [4] | STRAP-CABLE | |
| | 8I-0922 | [1] | WRENCH | |
| | B | | USE AS REQUIRED |
| | D | | ORDER BY THE METER |
| | Y | | SEPARATE ILLUSTRATION |
