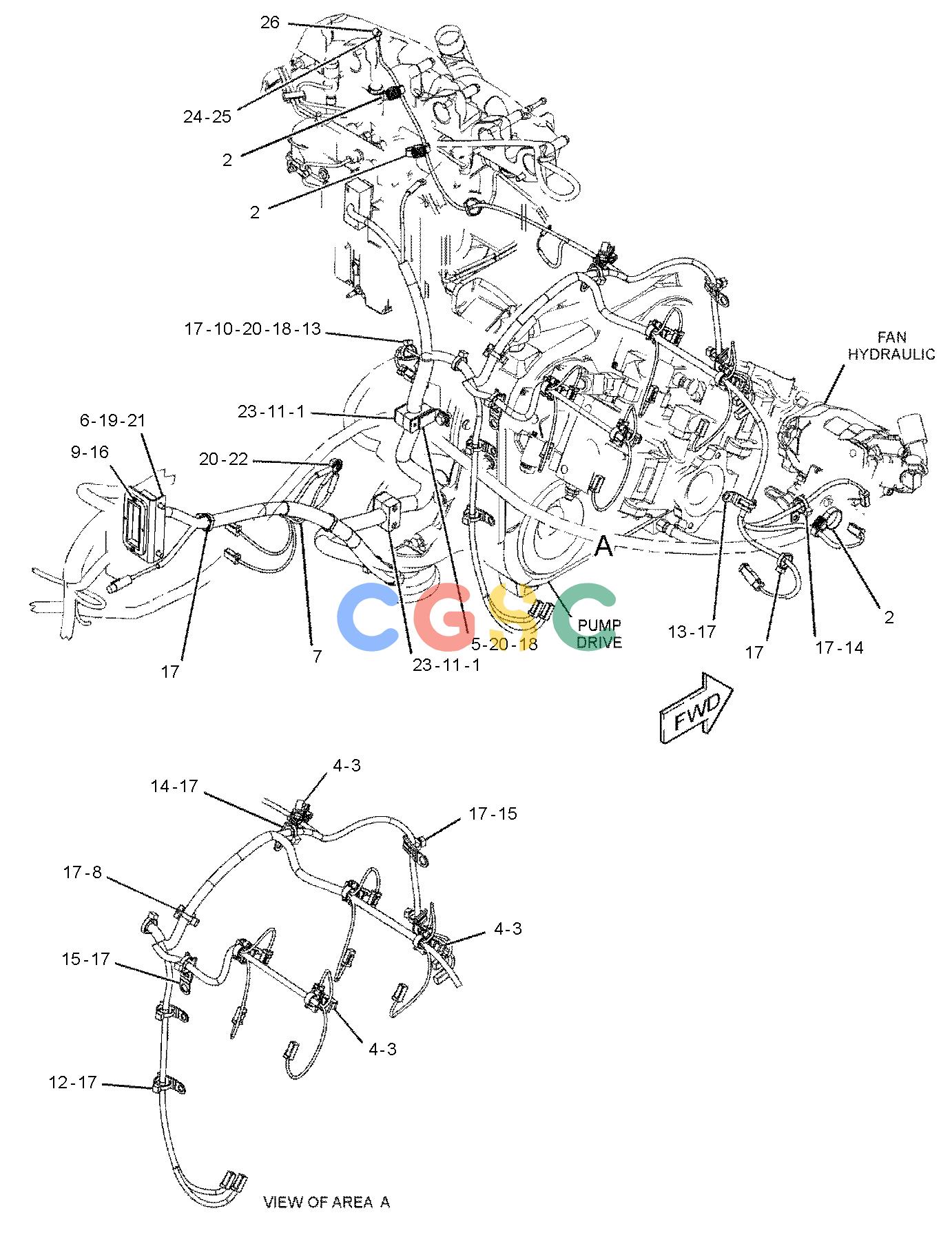

卡特零件查询（AP-1055E） 354-0851: WIRING GP-MACHINE
广数供应链运营团队, 16 02月, 2025，浏览：
404 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 143-9644 | [2] | PLATE-RETAINER | |
| 2. | 177-2215 | [3] | STRAP-DUAL CLAMP | |
| 3. | 200-6345 | [5] | SADDLE-MOUNTING(DUAL SWIVEL) | |
| 4. | 204-2281 | [10] | STRAP-CABLE | |
| 5. | 347-4044 | [1] | BRACKET AS | |
| 6. | 348-6675 | [1] | PLATE AS | |
| 7. | 427-2239CY | [1] | HARNESS AS-CHASSIS | |
| 8. | 372-3307 | [1] | BRACKET | |
| 9. | 096-6166 | [2] | WASHER-HARD(4.5X9X1-MM THK) | |
| 10. | 130-5301C | [1] | CLIP | |
| 11. | 139-0428 | [4] | CLAMP | |
| 12. | 4P-7428C | [2] | CLIP(LADDER) | |
| 13. | 4P-7429C | [3] | CLIP(LADDER) | |
| 14. | 4P-7581 | [2] | CLIP(LADDER) | |
| 15. | 4P-7582 | [2] | CLIP | |
| 16. | 6V-9672M | [2] | SCREW-MACHINE(M4X0.7X16-MM) | |
| 17. | 7K-1181C | [17] | STRAP-CABLE | |
| 18. | 8T-4179M | [2] | BOLT(M12X1.75X20-MM) | |
| 19. | 8T-4200M | [2] | BOLT(M8X1.25X16-MM) | |
| 20. | 8T-4223 | [3] | WASHER-HARD(13.5X25.5X3-MM THK) | |
| 21. | 8T-4224 | [2] | WASHER-HARD(8.8X16X2-MM THK) | |
| 22. | 8T-4244M | [1] | NUT(M12X1.75-THD) | |
| 23. | 9X-2480M | [4] | BOLT(M6X1X45-MM) | |
| 24. | 5C-2874M | [1] | NUT(M5X0.8-THD) | |
| 25. | 8T-0328 | [1] | WASHER-HARD(5.5X10X1-MM THK) | |
| 26. | 7E-0976 | [1] | BOOT | |
| | C | | CHANGE FROM PREVIOUS TYPE |
| | M | | METRIC PART |
| | Y | | SEPARATE ILLUSTRATION |
