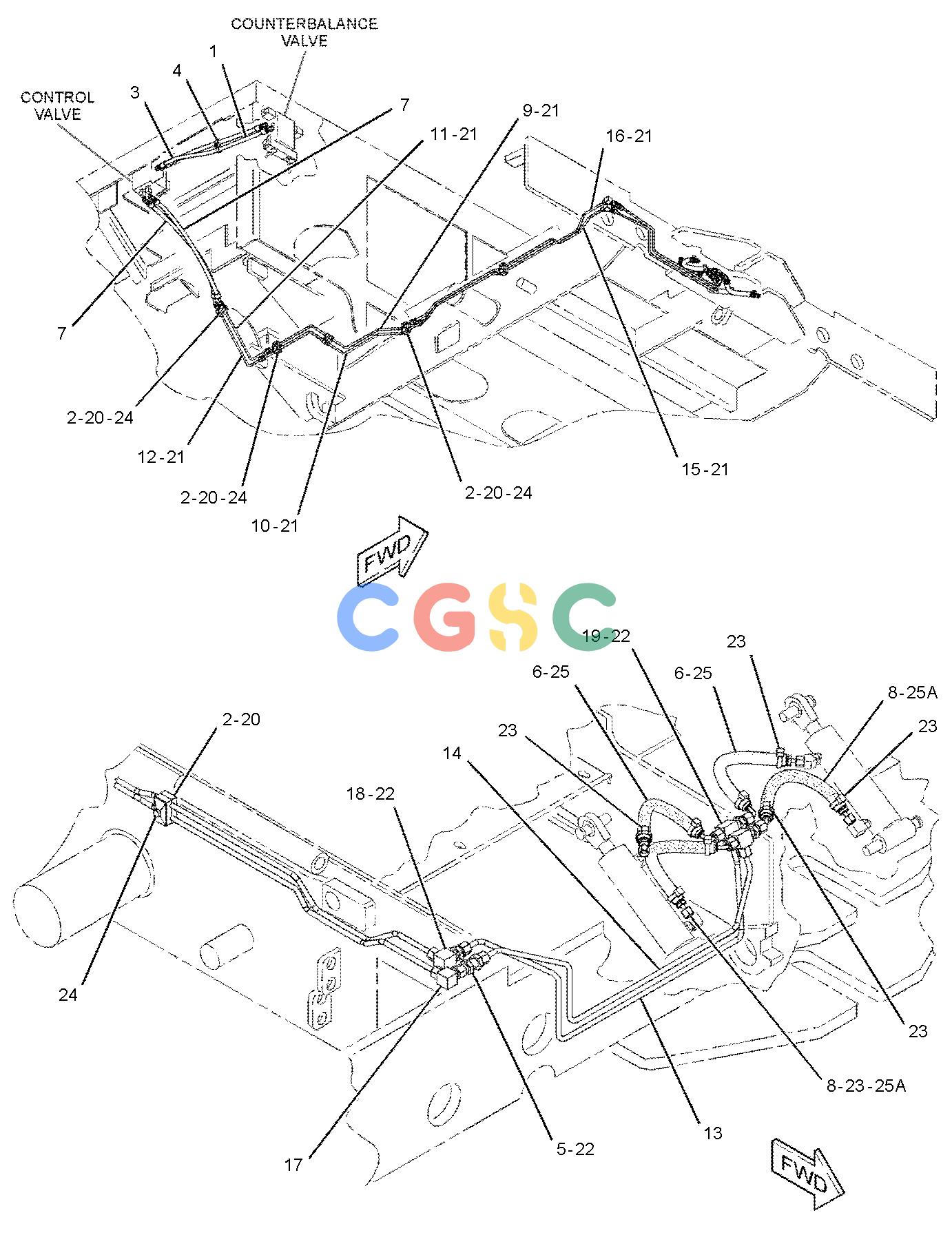

卡特零件查询（AP-1055E） 336-7914: LINES GP-HOPPER

广数供应链运营团队, 16 02月, 2025，浏览： 384 次

Pos.	Part No	Qty	Parts name
1.	4E-6864I	[1]	HOSE AS
2.	102-8703	[5]	PLATE-COVER
3.	154-4147I	[1]	HOSE AS
4.	177-2215	[1]	STRAP-DUAL CLAMP
5.	213-2265	[1]	UNION AS
	6V-8397	[2]	SEAL-O-RING
	150-0128	[1]	UNION
6.	216-5209I	[2]	HOSE AS
7.	248-0331I	[2]	HOSE AS
8.	283-5176I	[2]	HOSE AS
9.	340-5384	[1]	TUBE AS
10.	340-5385	[1]	TUBE AS
11.	344-1739	[1]	TUBE AS
12.	344-1740	[1]	TUBE AS
13.	345-8506	[1]	TUBE AS
14.	345-8507	[1]	TUBE AS
15.	345-8513	[1]	TUBE AS
16.	345-8514	[1]	TUBE AS
17.	148-8367	[1]	ELBOW AS
	6V-8397	[1]	SEAL-O-RING
	6V-9850	[1]	ELBOW
18.	148-8377	[1]	ELBOW AS
	6V-8397	[1]	SEAL-O-RING
	6V-8980	[1]	ELBOW
19.	153-6246	[2]	TEE AS
			(EACH INCLUDES)
	6V-8397	[3]	SEAL-O-RING
	7X-0820	[1]	TEE
20.	206-6409	[10]	CLAMP-HALF
21.	6V-8397	[6]	SEAL-O-RING
22.	6V-9168	[4]	NUT(11/16-16-THD)
23.	7K-1181	[8]	STRAP-CABLE
24.	7X-2537M	[5]	BOLT(M8X1.25X35-MM)
25.	160-2243G	[1]	SLEEVE-ABRASION(13.8-IN EACH)
25A.	160-2243G	[1]	SLEEVE-ABRASION(14.2-IN EACH)
	G		ORDER BY THE INCH
	I		REFER TO HYDRAULIC INFORMATION SYSTEM
	M		METRIC PART
