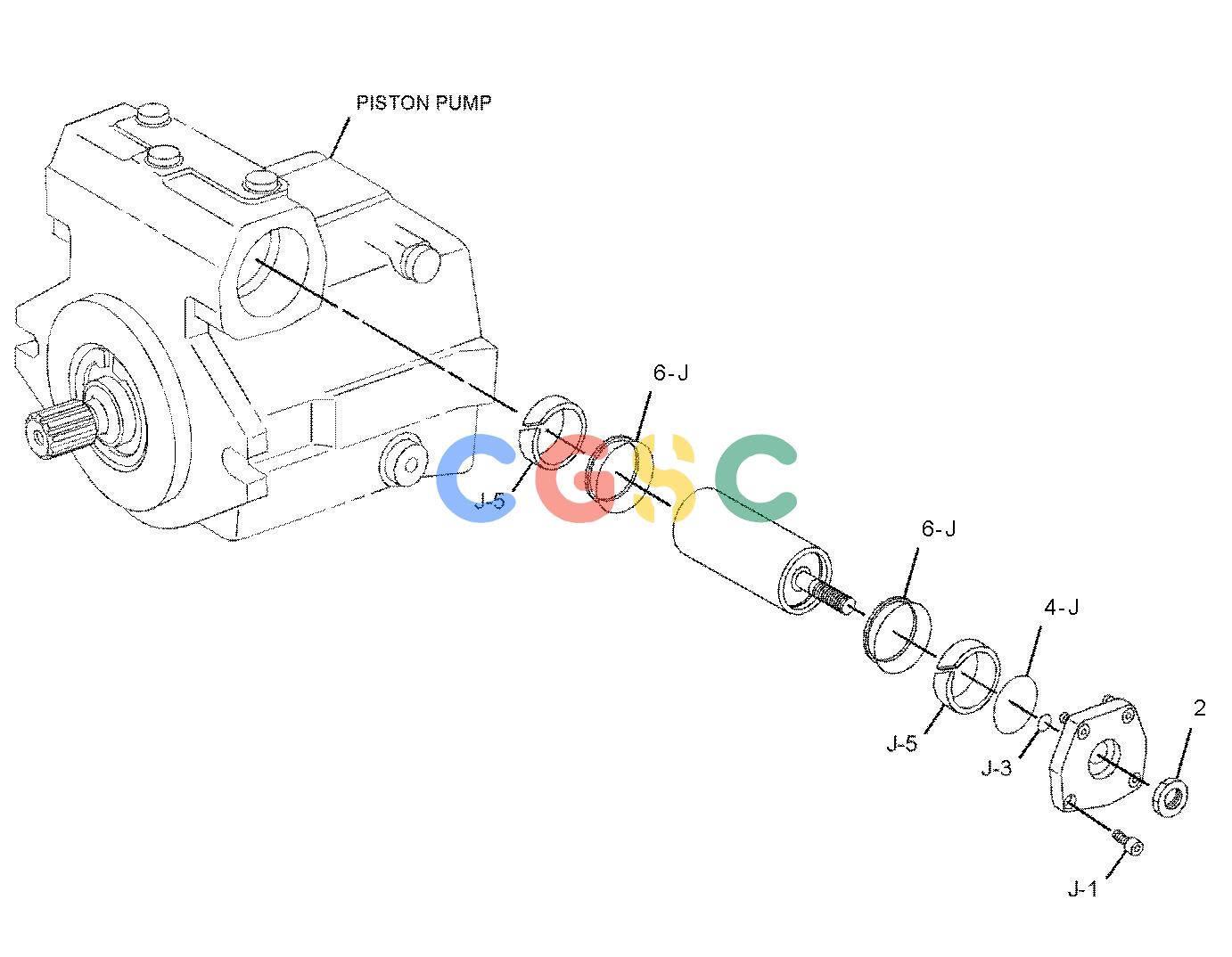

卡特零件查询（AP-1055E） 361-3931: ACTUATOR GP-PUMP
广数供应链运营团队, 16 02月, 2025，浏览：
901 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 6V-8202M | [4] | BOLT-SOCKET HEAD(M8X1.25X16-MM) | |
| 2. | 160-8499M | [1] | NUT(M12X1.5-THD) | |
| 3. | 6V-8397J | [1] | SEAL-O-RING | |
| 4. | 117-7273J | [1] | SEAL-O-RING | |
| 5. | 145-3812 | [2] | RING | |
| 6. | 145-3813J | [2] | RING-SEAL | |
| | | | |
| | | | PARTS SHOWN IN GRAPHIC(S) WITHOUT A REFERENCE NUMBER ARE NOT SERVICED SEPARATELY |
| | | | |
| | | | AVAILABLE REPAIR KIT(S): |
| | 361-3937J | | KIT-SEAL | |
| | | | (ALSO INCLUDES O-RING SEALS, NUTS, RETAINING RING, BACKUP RINGS, RING AS, RING, SHAFT SEAL, SEALS, GASKET |
| | | | & PARTS MARKED J IN THE GRAPHIC) |
| | J | | KIT MARKED J SERVICES PART(S) MARKED J |
| | M | | METRIC PART |
