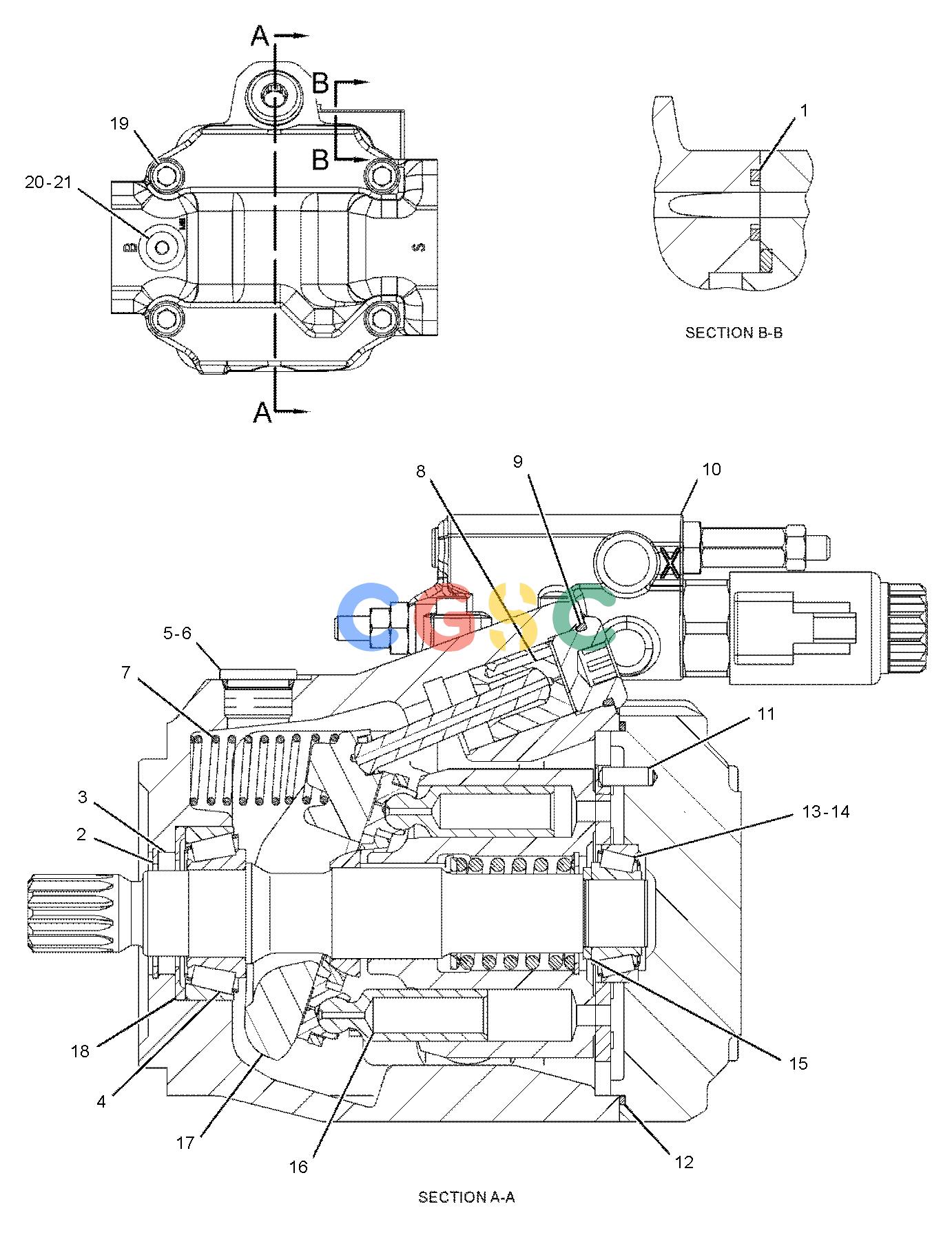

卡特零件查询（AP-1055E） 338-8392: PUMP GP-PISTON
广数供应链运营团队, 16 02月, 2025，浏览：
550 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 168-3504 | [1] | SEAL | |
| 2. | 213-4208 | [1] | RING-LOCK | |
| 3. | 185-0248 | [1] | SEAL-OIL | |
| 4. | 185-0263 | [1] | BEARING | |
| 5. | 9S-8006 | [1] | PLUG(7/8-14-THD) | |
| 6. | 152-2939 | [1] | SEAL-O-RING | |
| 7. | 188-6303 | [1] | SPRING | |
| 8. | 174-9994 | [1] | PISTON-CONTROL | |
| 9. | 8T-7525 | [1] | SEAL-O-RING | |
| 10. | 361-3944Y | [1] | VALVE GP-PUMP CONTROL(HYDRAULIC FAN) | |
| 11. | 9X-8979 | [1] | DOWEL | |
| 12. | 192-7470 | [1] | SEAL-O-RING | |
| 13. | 105-3035 | [1] | CONE-BEARING | |
| 14. | 203-8609 | [1] | CUP-BEARING | |
| 15. | 148-1238 | [1] | SHIM(3-MM THK) | |
| 16. | 361-3943Y | [1] | ROTATING GP-PUMP | |
| 17. | 361-3939 | [1] | SWASHPLATE | |
| 18. | 185-0242 | [1] | PLATE | |
| 19. | 095-0670M | [4] | BOLT(M12X1.75X45-MM) | |
| 20. | 9S-8004 | [1] | PLUG(9/16-18-THD) | |
| 21. | 214-7568 | [1] | SEAL-O-RING | |
| | | | |
| | | | AVAILABLE REPAIR KIT(S): |
| | 364-8630 | [1] | KIT-SEAL | |
| | | | (INCLUDES O-RINGS & SHAFT SEAL) |
| | M | | METRIC PART |
| | Y | | SEPARATE ILLUSTRATION |
