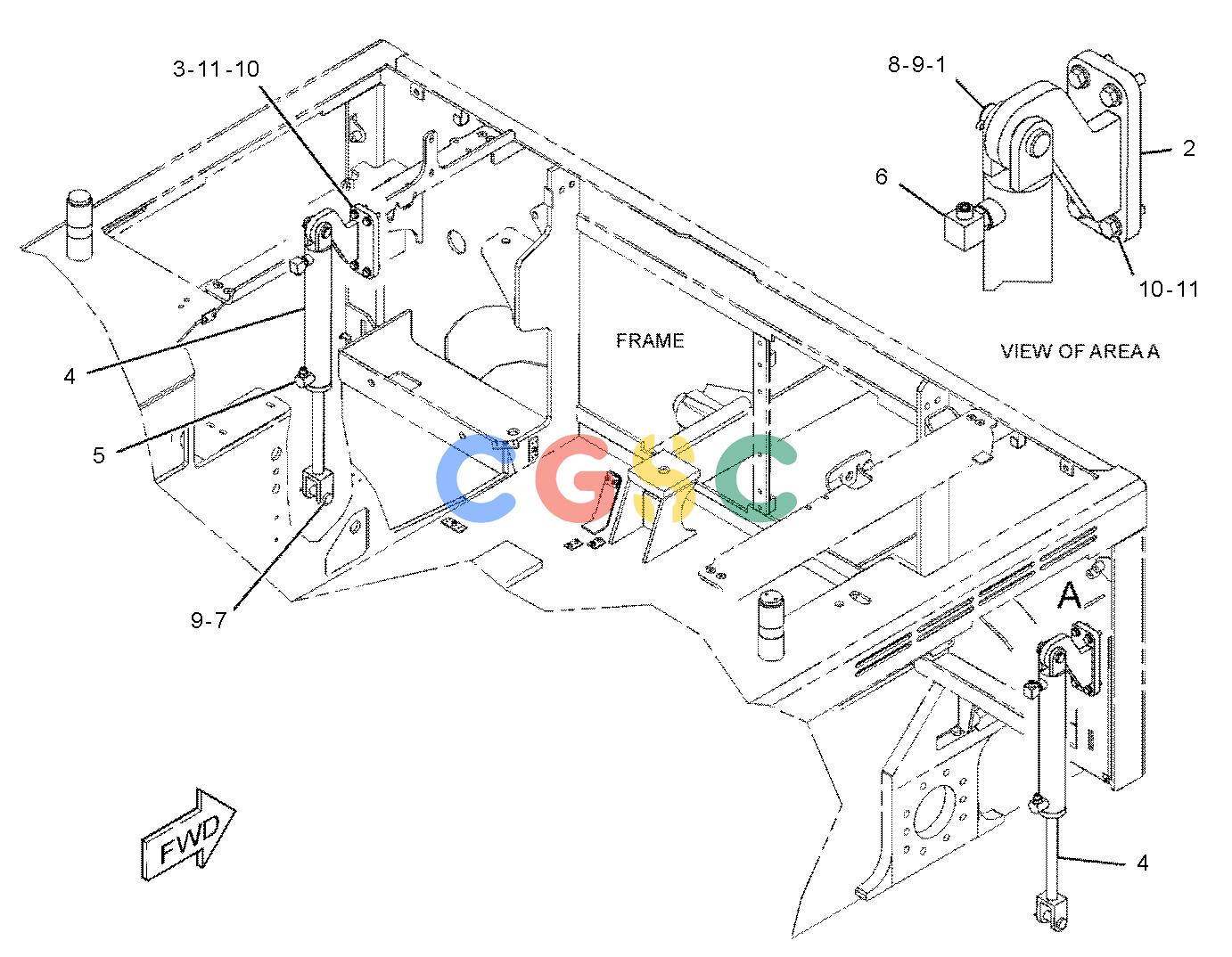

卡特零件查询（AP-1055E） 331-8954: CYLINDER & MTG GP-TOW POINT
广数供应链运营团队, 16 02月, 2025，浏览：
588 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 005-8639 | [2] | BEARING-ALIGNING | |
| 2. | 270-3551 | [1] | SUPPORT AS | |
| 3. | 270-3554 | [1] | SUPPORT AS | |
| 4. | 342-9378J | [2] | CYLINDER GP-HYDRAULIC(TOW POINT) | |
| | | | (EACH INCLUDES) |
| | 5D-1986 | [1] | LOCKNUT(7/8-14-THD) | |
| | 5E-8632 | [1] | RING | |
| 5. | 148-8318 | [2] | CONNECTOR AS | |
| | | | (EACH INCLUDES) |
| | 3K-0360 | [1] | SEAL-O-RING | |
| | 6V-8397 | [1] | SEAL-O-RING | |
| | 6V-8634 | [1] | CONNECTOR | |
| 6. | 148-8374 | [2] | ELBOW AS | |
| | | | (EACH INCLUDES) |
| | 3K-0360 | [1] | SEAL-O-RING | |
| | 6V-8397 | [1] | SEAL-O-RING | |
| | 6V-8723 | [1] | ELBOW | |
| 7. | 173-3651 | [2] | PIN-CLEVIS | |
| 8. | 253-8675 | [2] | PIN-CLEVIS | |
| 9. | 3B-4629 | [4] | PIN-COTTER | |
| 10. | 8T-4184M | [8] | BOLT(M12X1.75X45-MM) | |
| 11. | 8T-4223 | [8] | WASHER-HARD(13.5X25.5X3-MM THK) | |
| | | | |
| | | | AVAILABLE REPAIR KIT(S): |
| | 353-5424J | [1] | KIT-SEAL | |
| | | | (ALSO INCLUDES O-RING SEALS, WEAR RINGS, CAP SEAL, BACKUP RING, U-CUP SEAL & WIPER SEAL) |
| | J | | KIT MARKED J SERVICES PART(S) MARKED J |
| | M | | METRIC PART |
