卡特零件查询（AP-1055E） 277-2939: PUMP GP-WATER
广数供应链运营团队, 16 02月, 2025，浏览：
210 次

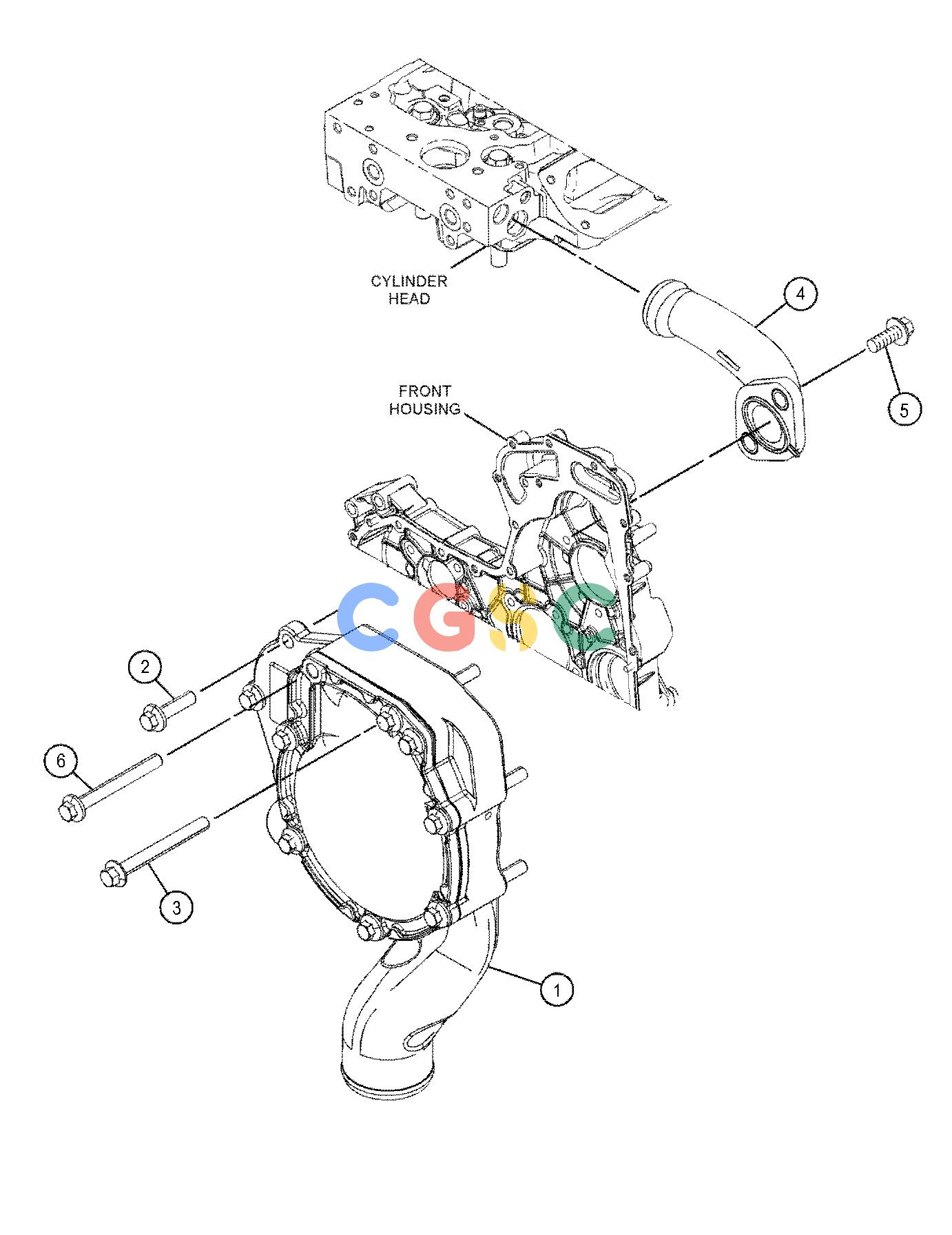

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 485-4894CJ | [1] | PUMP GP-WATER | |
| | 278-3242 | [3] | BOLT-FLANGE HEAD(M8X1.25X18-MM) | |
| | 374-4419J | [1] | GASKET | |
| 2. | 6I-0254M | [2] | BOLT(M8X1.25X30-MM) | |
| 3. | 113-8129M | [2] | BOLT(M8X1.25X75-MM) | |
| 4. | 277-2925 | [1] | CONNECTION AS | |
| | 225-7738 | [1] | SEAL-O-RING | |
| | 277-2923 | [1] | GASKET | |
| 5. | 6I-0217M | [2] | BOLT(M8X1.25X20-MM) | |
| 6. | 6I-0839M | [5] | BOLT(M8X1.25X70-MM) | |
| | | | |
| | 485-4895BFJ | [1] | PUMP GP-WATER | |
| | 225-8019BFJ | [1] | GASKET | |
| | B | | USE AS REQUIRED |
| | C | | CHANGE FROM PREVIOUS TYPE |
| | F | | NOT SHOWN |
| | J | | PARTS MARKED J SERVICE PARTS MARKED J |
| | M | | METRIC PART |
