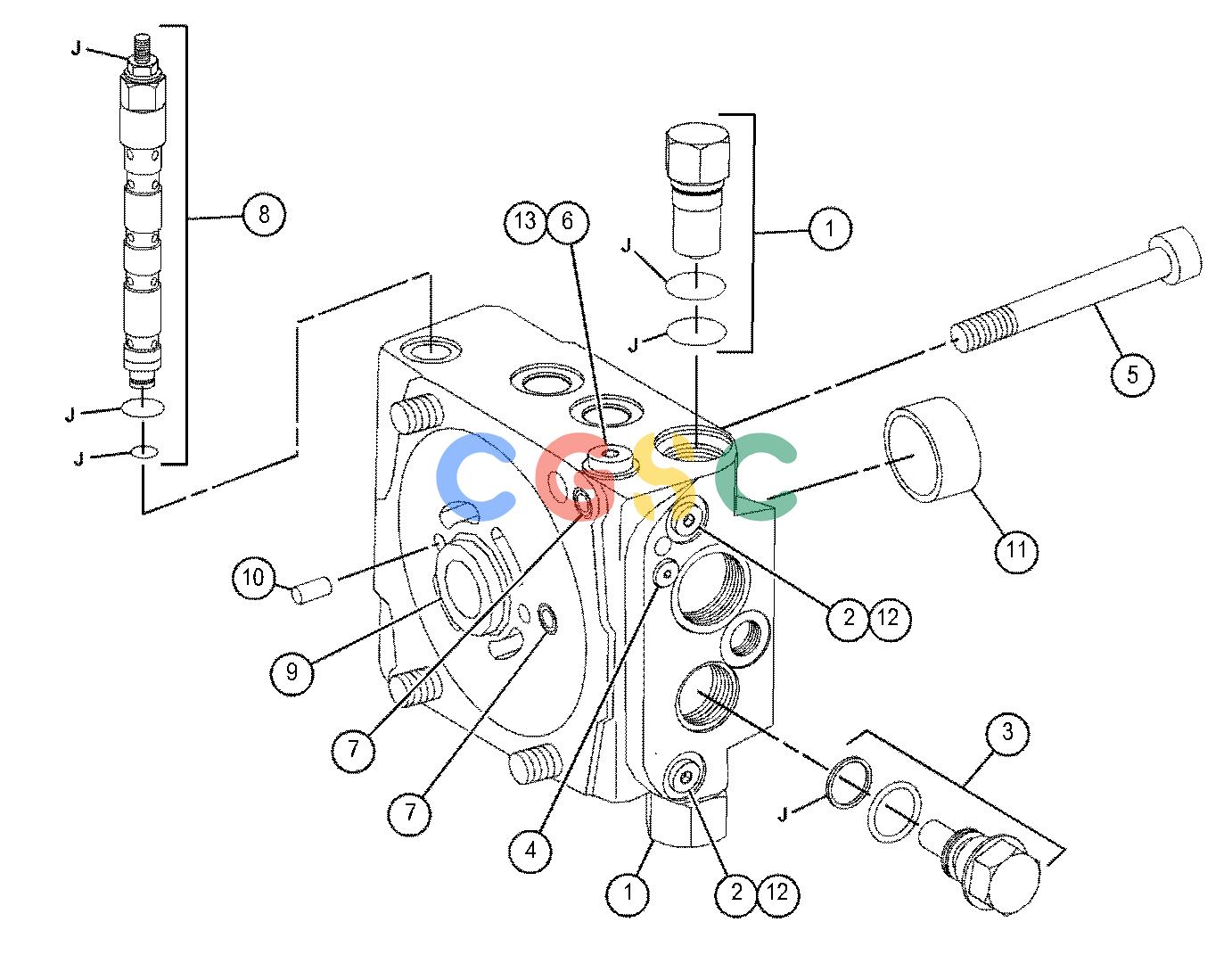

卡特零件查询（AP-1055E） 361-3932: HEAD GP-PUMP
广数供应链运营团队, 16 02月, 2025，浏览：
659 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 233-5621 | [2] | VALVE GP-RELIEF | |
| | | | (EACH INCLUDES) |
| | 6V-5326 | [1] | SEAL-O-RING | |
| | 112-4719 | [1] | RING-BACKUP | |
| 2. | 112-4628 | [2] | SCREW(7/16-20X0.5-IN) | |
| 3. | 212-6679Y | [1] | VALVE GP-RELIEF(CHARGE PRESSURE) | |
| 4. | 087-4772 | [1] | PLUG-O-RING | |
| 5. | 7X-3340M | [4] | BOLT-SOCKET HEAD(M14X2X75-MM) | |
| 6. | 9T-3930 | [1] | PLUG AS | |
| | 187-8002 | [1] | SEAL | |
| 7. | 6V-8397J | [2] | SEAL-O-RING | |
| 8. | 123-7557Y | [1] | VALVE GP-RELIEF(PRESSURE OVERRIDE) | |
| 9. | 192-4576 | [1] | BEARING-ROLLER | |
| 10. | 5W-1250 | [2] | PIN | |
| 11. | 126-1477 | [1] | BUSHING-COUPLING | |
| 12. | 3J-7354 | [2] | SEAL-O-RING | |
| | | | |
| | | | PARTS SHOWN IN GRAPHIC(S) WITHOUT A REFERENCE NUMBER ARE NOT SERVICED SEPARATELY |
| | | | |
| | | | AVAILABLE REPAIR KIT(S): |
| | 361-3937J | [1] | KIT-SEAL | |
| | | | (ALSO INCLUDES O-RING SEALS, NUTS, RETAINING RING, BACKUP RINGS, SEALS, RING AS, RING, SHAFT SEAL, GASKET & PARTS |
| | | | MARKED J IN THE GRAPHIC) |
| | J | | KIT MARKED J SERVICES PART(S) MARKED J |
| | M | | METRIC PART |
| | Y | | SEPARATE ILLUSTRATION |
