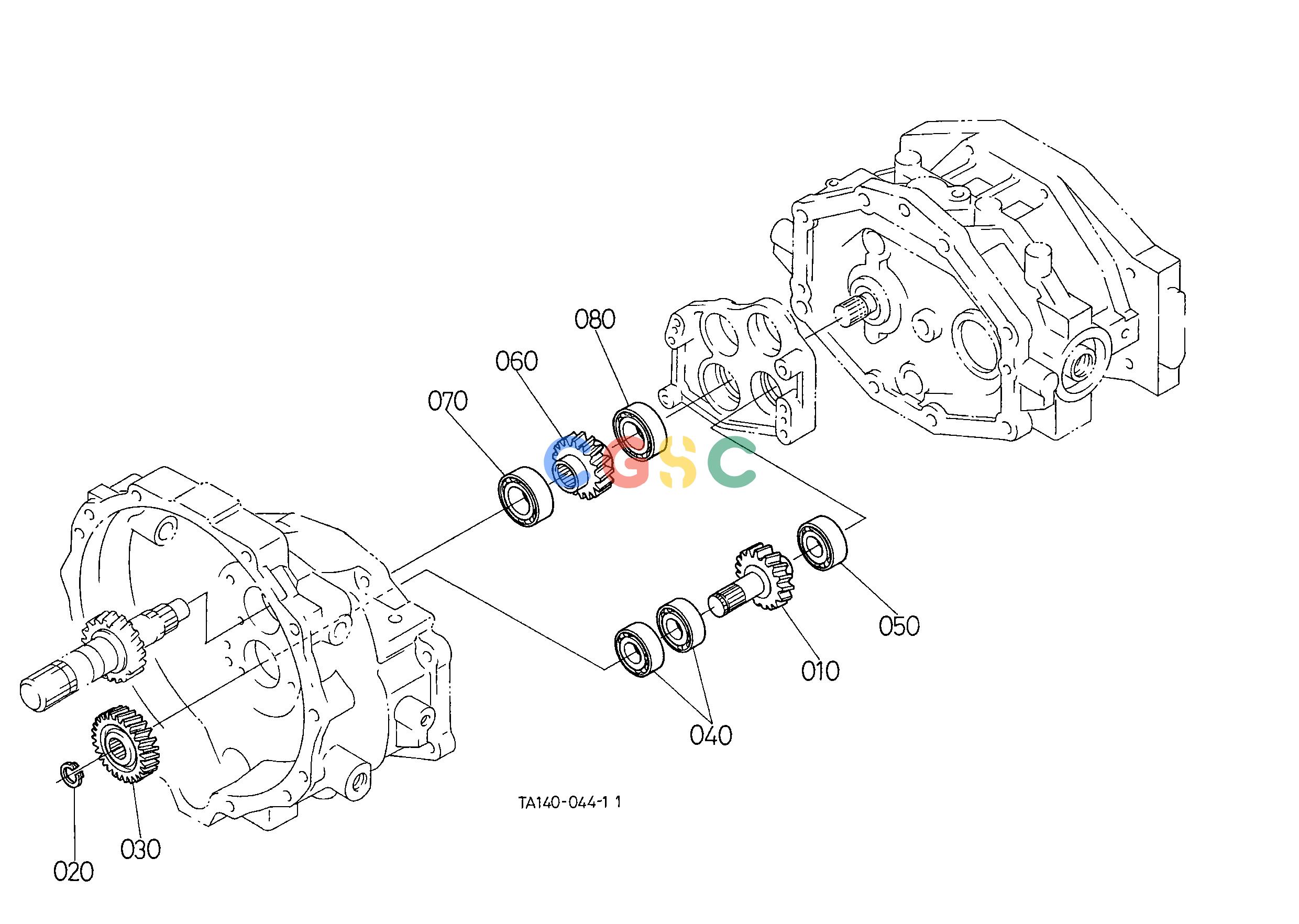

久保田零件查询D10300 INPUT SHAFT [HST TYPE] CLUTCH/TRANSMISSION/REAR AXLEEPC Kubota online
广数供应链运营团队, 16 02月, 2025，浏览：
770 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 010. |
TA24052100
|
[1] |
GEAR-SHAFT
|
1.4080(lbs); 0.640
|
| 020. |
3715021551
|
[1] |
CIR CLIP EXTERNAL
|
0.0110(lbs); 0.005
|
| 030. |
TA04022110
|
[1] |
GEAR
|
0.9350(lbs); 0.425
|
| 040. |
3741057190
|
[2] |
BEARING BALL
|
0.3080(lbs); 0.140
|
| 050. |
6712156770
|
[1] |
BEARING BALL
|
0.2794(lbs); 0.127
|
| 060. |
TA24052200
|
[1] |
GEAR
|
0.9460(lbs); 0.430
|
| 070. |
0810106007
|
[1] |
BEARING BALL
|
0.3520(lbs); 0.160
|
| 080. |
3692040090
|
[1] |
BEARING BALL
|
0.2970(lbs); 0.135
|
