卡特零件查询（AP-1055E） 345-8519: MOTOR & MTG GP-GENERATOR
广数供应链运营团队, 16 02月, 2025，浏览：
251 次

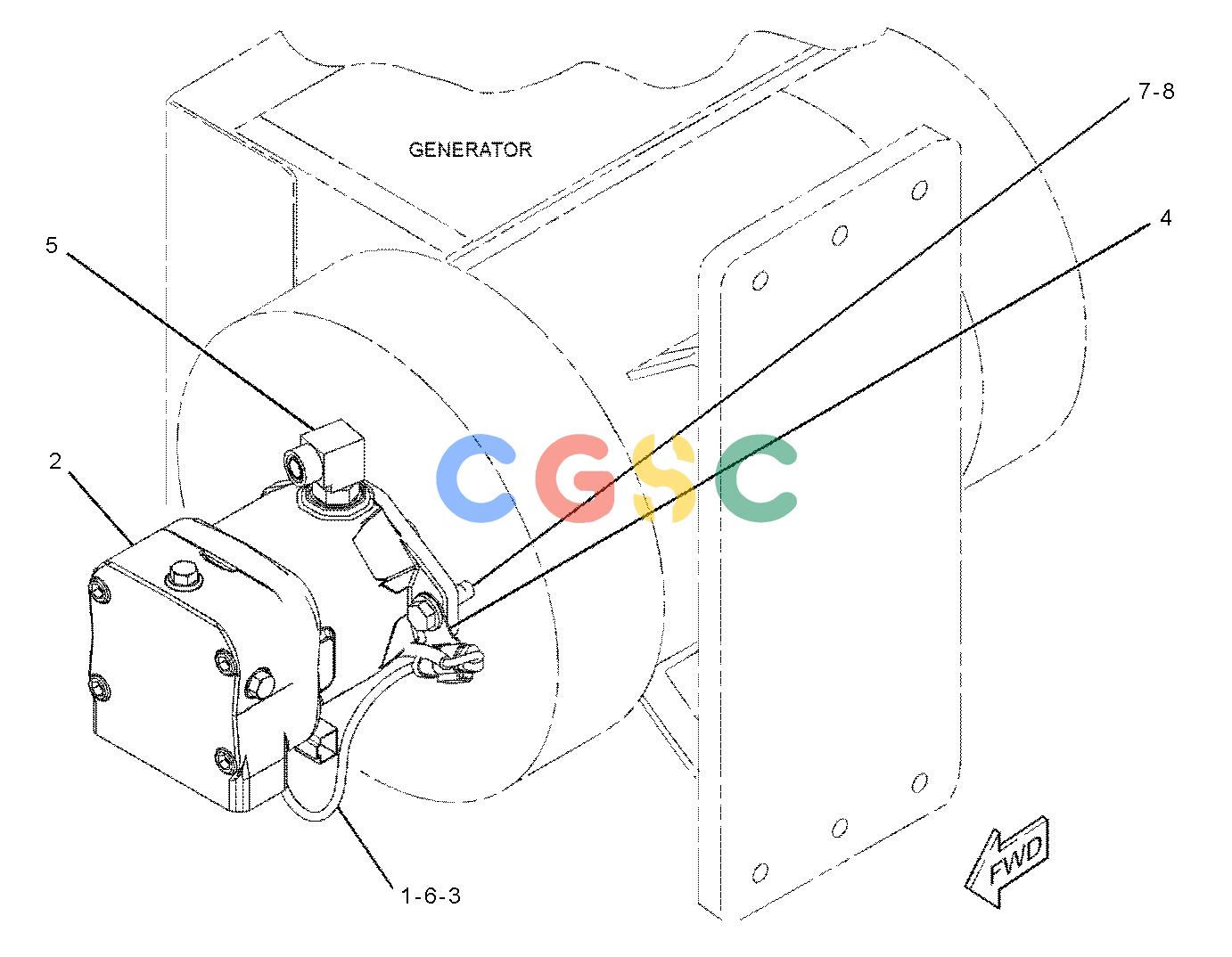

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 266-8577 | [1] | SENSOR GP-SPEED(TORQUE CONVERTER OUTPUT) | |
| | 102-8803 | [1] | KIT-RECEPTACLE(3-PIN) | |
| | | | (INCLUDES RECEPTACLE AS & WEDGE) |
| | 9X-3401 | [3] | PIN-CONNECTOR(16-GA TO 18-GA) | |
| 2. | 337-4018Y | [1] | MOTOR GP-PISTON(GENERATOR) | |
| 3. | 348-8127 | [1] | HARNESS AS-SENSOR | |
| | 9X-3401 | [3] | PIN-CONNECTOR(16-GA TO 18-GA) | |
| | 155-2260 | [1] | KIT-CONNECTING PLUG(3-PIN) | |
| | | | (INCLUDES PLUG AS, WEDGE & INTERFACE SEAL) |
| | 8T-8737 | [1] | PLUG-SEAL | |
| | 102-8804 | [1] | KIT-RECEPTACLE(4-PIN) | |
| | | | (INCLUDES RECEPTACLE AS & WEDGE) |
| | 180-9340 | [3] | SOCKET-CONNECTOR(14-GA TO 18-GA) | |
| 4. | 130-5301 | [1] | CLIP | |
| 5. | 148-8390 | [1] | ELBOW AS | |
| | 2M-9780 | [1] | SEAL-O-RING | |
| | 6V-8626 | [1] | ELBOW | |
| | 7J-9108 | [1] | SEAL-O-RING | |
| 6. | 8L-2786 | [1] | SEAL-O-RING | |
| 7. | 8T-4183M | [2] | BOLT(M12X1.75X40-MM) | |
| 8. | 8T-4223 | [2] | WASHER-HARD(13.5X25.5X3-MM THK) | |
| | M | | METRIC PART |
| | Y | | SEPARATE ILLUSTRATION |
