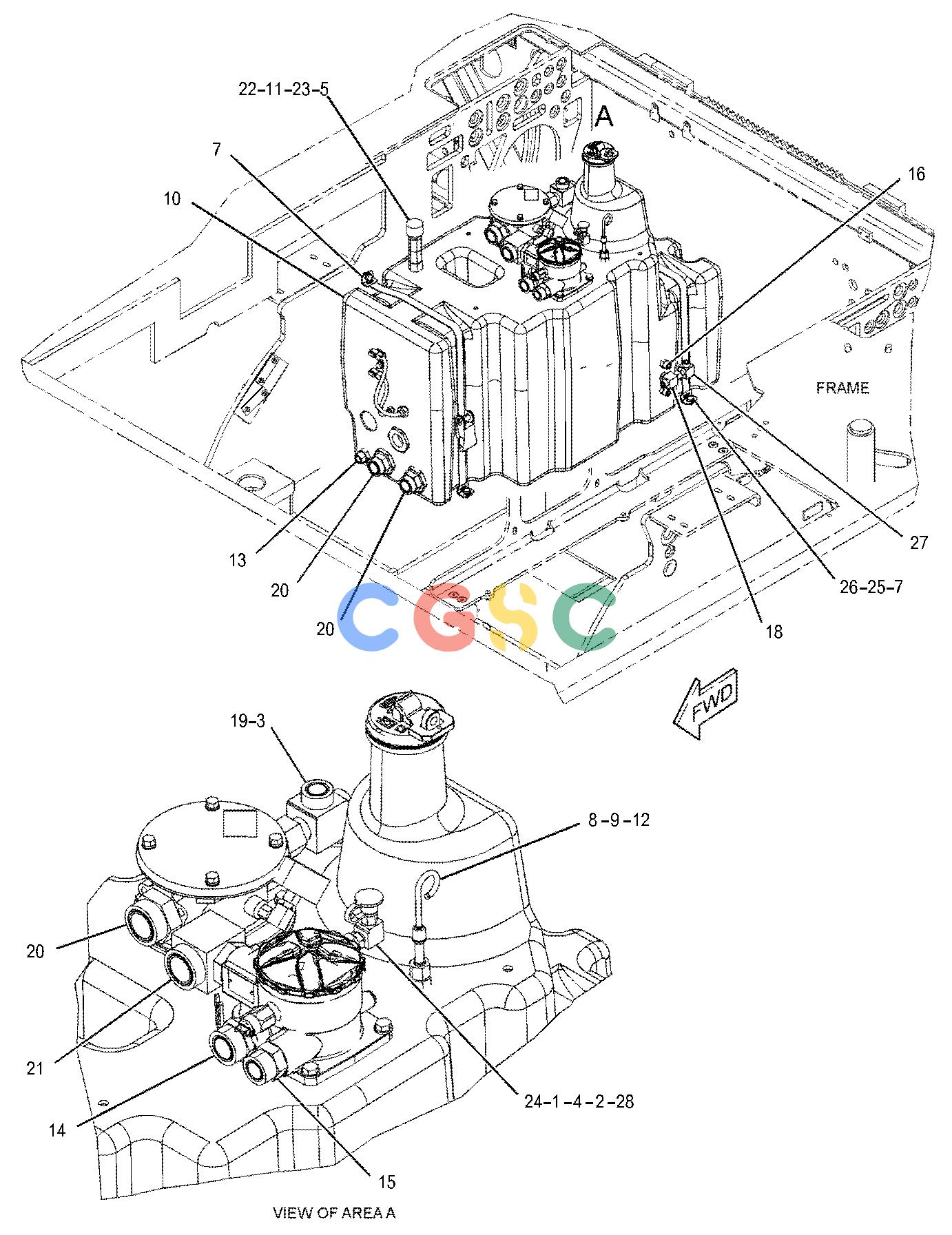

卡特零件查询（AP-1055E） 332-7997: TANK & MTG GP-HYDRAULIC
广数供应链运营团队, 16 02月, 2025，浏览：
129 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 8C-3451 | [1] | CAP-DUST(HYDRAULIC OIL) | |
| 2. | 8C-6863 | [1] | ADAPTER | |
| 3. | 153-6265 | [1] | CONNECTOR AS | |
| | 5K-9090 | [1] | SEAL-O-RING | |
| | 6K-6307 | [1] | SEAL-O-RING | |
| | 8C-3323 | [1] | CONNECTOR | |
| 4. | 164-6874 | [1] | FITTING AS-ELBOW(QUICK DISCONNECT, MALE) | |
| | 3J-1907 | [1] | SEAL-O-RING | |
| | 085-7356 | [1] | FITTING | |
| 5. | 207-5997 | [1] | BREATHER AS(FAST FILL)(HYDRAULIC TANK) | |
| 7. | 326-6533 | [2] | STRAP AS | |
| 8. | 330-4508 | [1] | GAUGE-OIL LEVEL (DIPSTICK)(HYDRAULIC) | |
| 9. | 332-2624 | [1] | TUBE AS | |
| 10. | 332-2648Y | [1] | TANK GP-HYDRAULIC | |
| 11. | 148-8312 | [2] | ADAPTER AS | |
| | | | (EACH INCLUDES) |
| | 3D-2824 | [1] | SEAL-O-RING | |
| | 3T-4965 | [1] | ADAPTER | |
| 12. | 148-8318 | [1] | CONNECTOR AS | |
| | 3K-0360 | [1] | SEAL-O-RING | |
| | 6V-8397 | [1] | SEAL-O-RING | |
| | 6V-8634 | [1] | CONNECTOR | |
| 13. | 148-8327 | [1] | CONNECTOR AS | |
| | 3D-2824 | [1] | SEAL-O-RING | |
| | 6V-8637 | [1] | CONNECTOR | |
| | 6V-9746 | [1] | SEAL-O-RING | |
| 14. | 148-8333 | [1] | CONNECTOR AS | |
| | 6V-8400 | [1] | SEAL-O-RING | |
| | 7M-8485 | [1] | SEAL-O-RING | |
| | 8T-7927 | [1] | CONNECTOR | |
| 15. | 148-8335 | [1] | CONNECTOR AS | |
| | 5K-9090 | [1] | SEAL-O-RING | |
| | 6V-8635 | [1] | CONNECTOR | |
| | 7M-8485 | [1] | SEAL-O-RING | |
| 16. | 148-8340 | [2] | CONNECTOR AS | |
| | | | (EACH INCLUDES) |
| | 3K-0360 | [1] | SEAL-O-RING | |
| | 6V-8398 | [1] | SEAL-O-RING | |
| | 6V-8639 | [1] | CONNECTOR | |
| 18. | 148-8436C | [1] | TEE AS | |
| | 3K-0360 | [1] | SEAL-O-RING | |
| | 6V-8398 | [2] | SEAL-O-RING | |
| | 6V-8775 | [1] | TEE-FACE SEAL | |
| 19. | 148-8429 | [1] | TEE AS | |
| | 5K-9090 | [2] | SEAL-O-RING | |
| | 6V-9840 | [1] | TEE-SWIVEL | |
| 20. | 156-4283 | [3] | CONNECTOR AS | |
| | | | (EACH INCLUDES) |
| | 6K-6307 | [1] | SEAL-O-RING | |
| | 8T-0315 | [1] | SEAL-O-RING | |
| | 8T-7926 | [1] | CONNECTOR | |
| 21. | 228-6387 | [1] | ELBOW AS | |
| | 2S-4078 | [1] | SEAL-O-RING | |
| | 8T-0315 | [1] | SEAL-O-RING | |
| | | [1] | ELBOW |
| 22. | 281-5973 | [1] | ADAPTER AS | |
| | 5P-1042 | [1] | ADAPTER-O-RING | |
| | 238-5081 | [1] | SEAL-O-RING | |
| 23. | 3D-2824 | [1] | SEAL-O-RING | |
| 24. | 6V-9028 | [1] | SEAL-O-RING | |
| 25. | 8T-4121 | [4] | WASHER-HARD(11X21X2.5-MM THK) | |
| 26. | 8T-4191M | [4] | BOLT(M10X1.5X16-MM) | |
| 27. | 148-8370C | [1] | ELBOW AS | |
| | 6V-8398 | [1] | SEAL-O-RING | |
| | 6V-9851 | [1] | ELBOW | |
| 28. | 183-7264 | [1] | VALVE AS-FLUID SAMPLING | |
| | 3J-1907 | [1] | SEAL-O-RING | |
| | C | | CHANGE FROM PREVIOUS TYPE |
| | M | | METRIC PART |
| | Y | | SEPARATE ILLUSTRATION |
