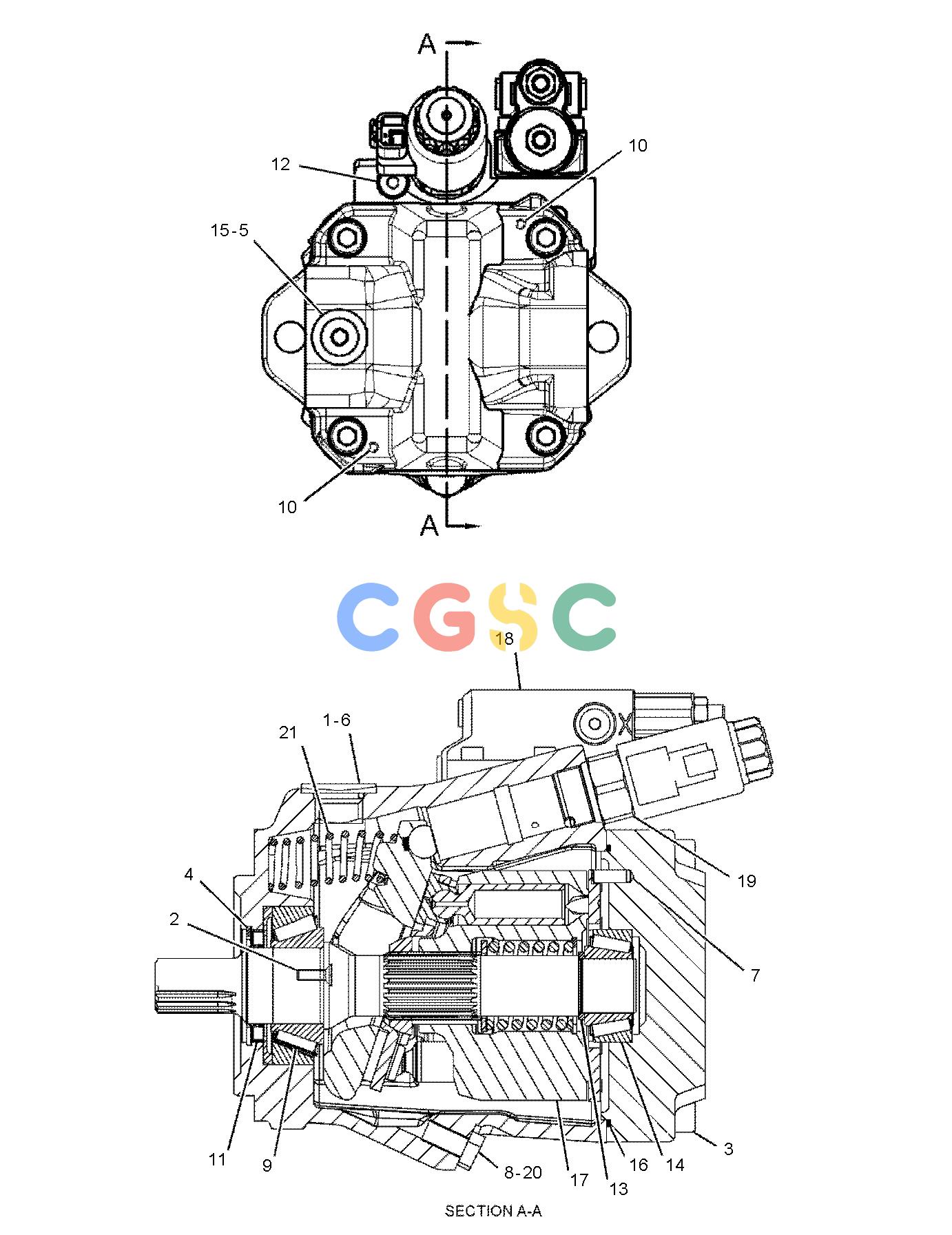

卡特零件查询（AP-1055E） 348-8146: PUMP GP-PISTON
广数供应链运营团队, 16 02月, 2025，浏览：
631 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 3K-0360 | [3] | SEAL-O-RING | |
| 2. | 6R-7943M | [2] | SCREW(M5X0.8X15-MM) | |
| 3. | 8T-4957M | [4] | BOLT-SOCKET HEAD(M10X1.5X30-MM) | |
| 4. | 8T-9597 | [1] | RING-RETAINING | |
| 5. | 9S-8004 | [1] | PLUG(9/16-18-THD) | |
| 6. | 9S-8005 | [3] | PLUG(3/4-16-THD) | |
| 7. | 9X-8979 | [1] | DOWEL | |
| 8. | 033-5879 | [1] | SEAL-O-RING | |
| 9. | 155-9125 | [1] | BEARING AS-ROLLER | |
| 10. | 168-3504 | [2] | SEAL | |
| 11. | 185-0303 | [1] | SEAL-OIL | |
| 12. | 188-6392 | [1] | PLUG | |
| 13. | 191-7582 | [1] | SHIM(2.5-MM THK) | |
| 14. | 191-7583 | [1] | BEARING-TAPERED | |
| 15. | 214-7568 | [1] | SEAL-O-RING | |
| 16. | 231-4707 | [1] | SEAL-O-RING | |
| 17. | 355-9786Y | [1] | ROTATING GP-PUMP | |
| 18. | 356-6895Y | [1] | VALVE GP-PUMP CONTROL(PRESSURE, FLOW COMPENSATOR) | |
| 19. | 356-6905Y | [1] | SOLENOID GP(TAMPER) | |
| 20. | 356-6909 | [1] | SCREW-STOP | |
| 21. | 359-1006 | [1] | SPRING | |
| | M | | METRIC PART |
| | Y | | SEPARATE ILLUSTRATION |
