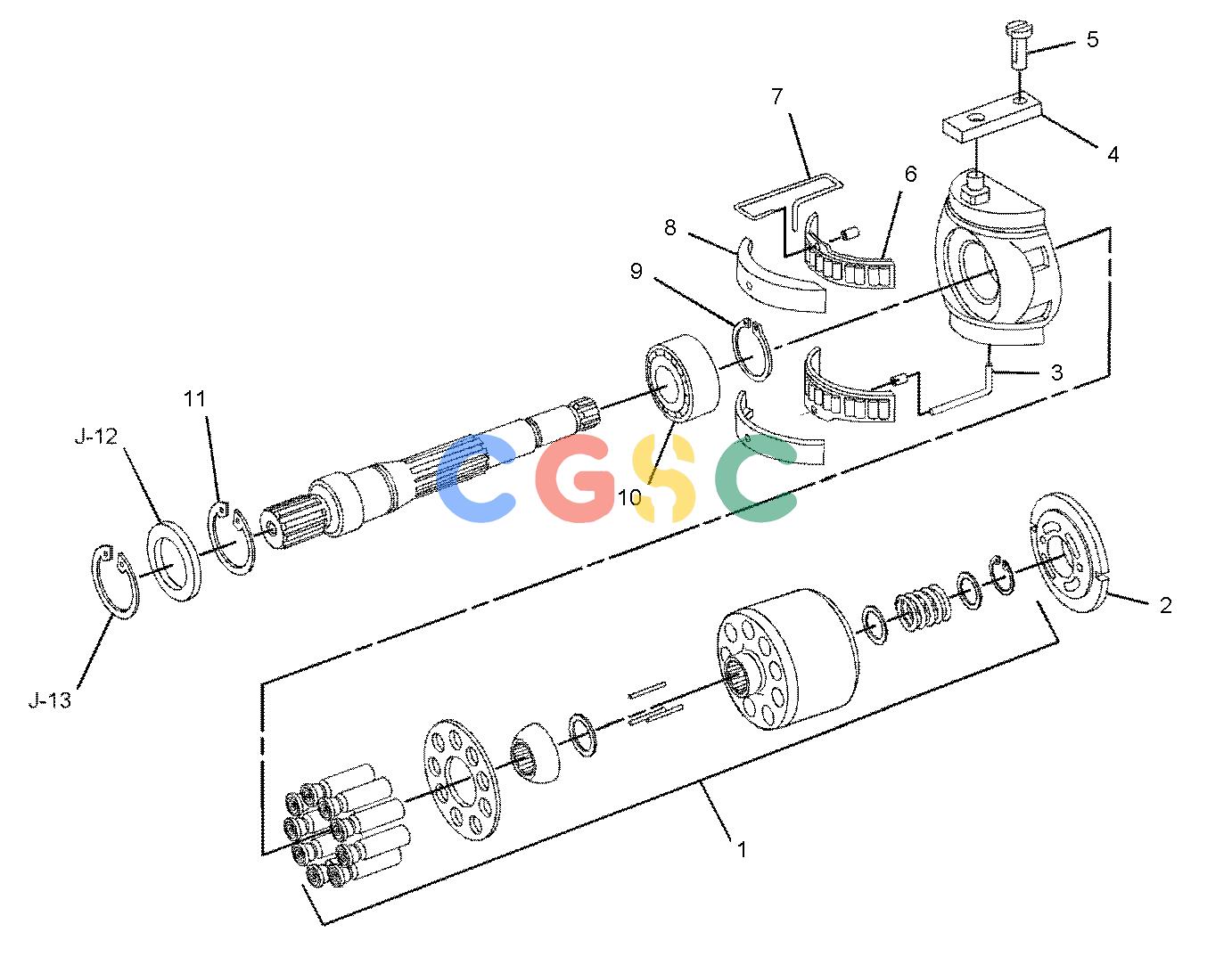

卡特零件查询（AP-1055E） 361-3929: ROTATING GP-PUMP
广数供应链运营团队, 16 02月, 2025，浏览：
480 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 364-0614 | [1] | KIT-PUMP | |
| | | | (INCLUDES BEARING, PISTONS, RETRACTION PLATE, PINS, WASHER, SPRING & RETAINING RING) |
| 2. | 364-0615 | [1] | PLATE-CONTROL | |
| 3. | 1G-3410 | [1] | WIRE | |
| 4. | 117-7241 | [1] | PLATE | |
| 5. | 112-4657 | [1] | PIN | |
| 6. | 340-5800 | [1] | BEARING AS-ROLLER | |
| 7. | 122-9068 | [1] | WIRE | |
| 8. | 125-9134 | [1] | BEARING AS | |
| 9. | 108-3565 | [1] | CLIP | |
| 10. | 117-7251 | [1] | BEARING | |
| 11. | 126-9587 | [1] | RING-RETAINING | |
| 12. | 194-1983J | [1] | SEAL-SHAFT | |
| 13. | 212-4483 | [1] | RING-RETAINING | |
| | | | |
| | | | PARTS SHOWN IN GRAPHIC(S) WITHOUT A REFERENCE NUMBER ARE NOT SERVICED SEPARATELY |
| | | | |
| | | | AVAILABLE REPAIR KIT(S): |
| | 361-3937J | [1] | KIT-SEAL | |
| | | | (ALSO INCLUDES O-RING SEALS, NUTS, RETAINING RING, BACKUP RINGS, RING AS, SEALS & GASKET) |
| | J | | KIT MARKED J SERVICES PART(S) MARKED J |
