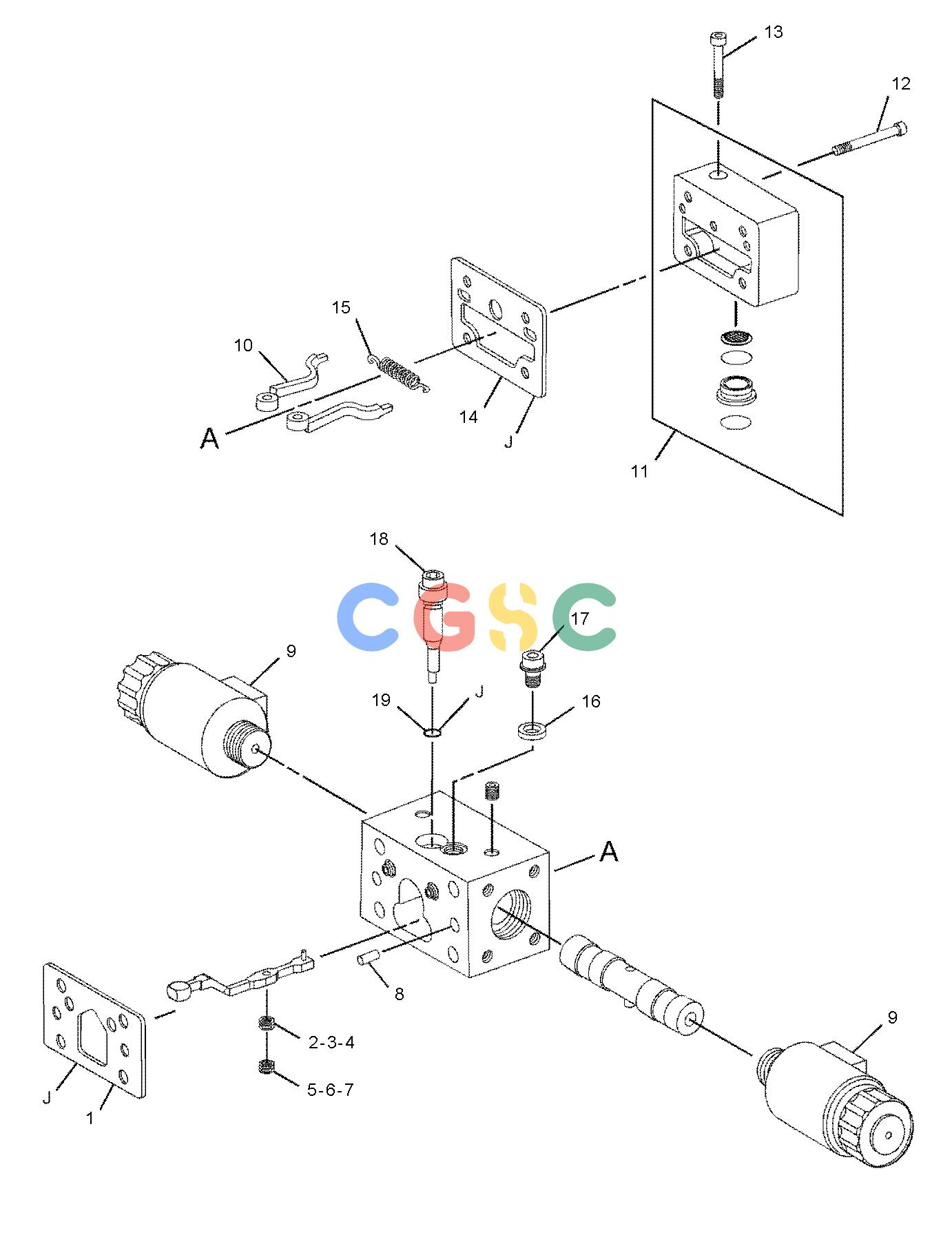

卡特零件查询（AP-1055E） 361-3935: VALVE GP-PUMP CONTROL
广数供应链运营团队, 16 02月, 2025，浏览：
609 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 209-3565J | [1] | SEAL | |
| 2. | 233-9808B | [1] | SHIM(0.6-MM THK) | |
| 3. | 216-4554B | [1] | SHIM(1.4-MM THK) | |
| 4. | 216-4553B | [1] | SHIM(1.2-MM THK) | |
| 5. | 216-4552B | [1] | SHIM(1-MM THK) | |
| 6. | 216-4551B | [1] | SHIM(0.8-MM THK) | |
| 7. | 216-4555B | [1] | SHIM(1.6-MM THK) | |
| 8. | 202-6535 | [2] | PIN | |
| 9. | 316-5999 | [2] | SOLENOID AS(PUMP CONTROL VALVE) | |
| 10. | 215-8014 | [1] | KIT-LEVER | |
| | | | (INCLUDES LEVERS) |
| 11. | 301-3424 | [1] | KIT-COVER | |
| | | | (INCLUDES COVER, FILTER, O-RING SEALS & SEALS) |
| 12. | 8T-2922M | [4] | BOLT-SOCKET HEAD(M6X1X65-MM) | |
| 13. | 196-9445M | [1] | BOLT-SOCKET HEAD(M6X1X45-MM) | |
| 14. | 352-4703J | [1] | GASKET | |
| 15. | 277-6631 | [1] | SPRING | |
| 16. | 215-8010 | [1] | SHIM(3-MM THK) | |
| 17. | 215-8011 | [1] | BOLT-SPECIAL | |
| 18. | 337-9102 | [1] | PIN-ECCENTRIC | |
| 19. | 6H-9691J | [1] | SEAL-O-RING | |
| | | | |
| | | | PARTS SHOWN IN GRAPHIC(S) WITHOUT A REFERENCE NUMBER ARE NOT SERVICED SEPARATELY |
| | | | |
| | | | AVAILABLE REPAIR KIT(S): |
| | 361-3937J | [1] | KIT-SEAL | |
| | | | (ALSO INCLUDES O-RING SEALS, NUTS, RETAINING RING, BACKUP RINGS, RING AS, RING, SHAFT SEAL, SEALS, GASKET & PARTS |
| | | | MARKED J IN THE GRAPHIC) |
| | B | | USE AS REQUIRED |
| | J | | KIT MARKED J SERVICES PART(S) MARKED J |
| | M | | METRIC PART |
