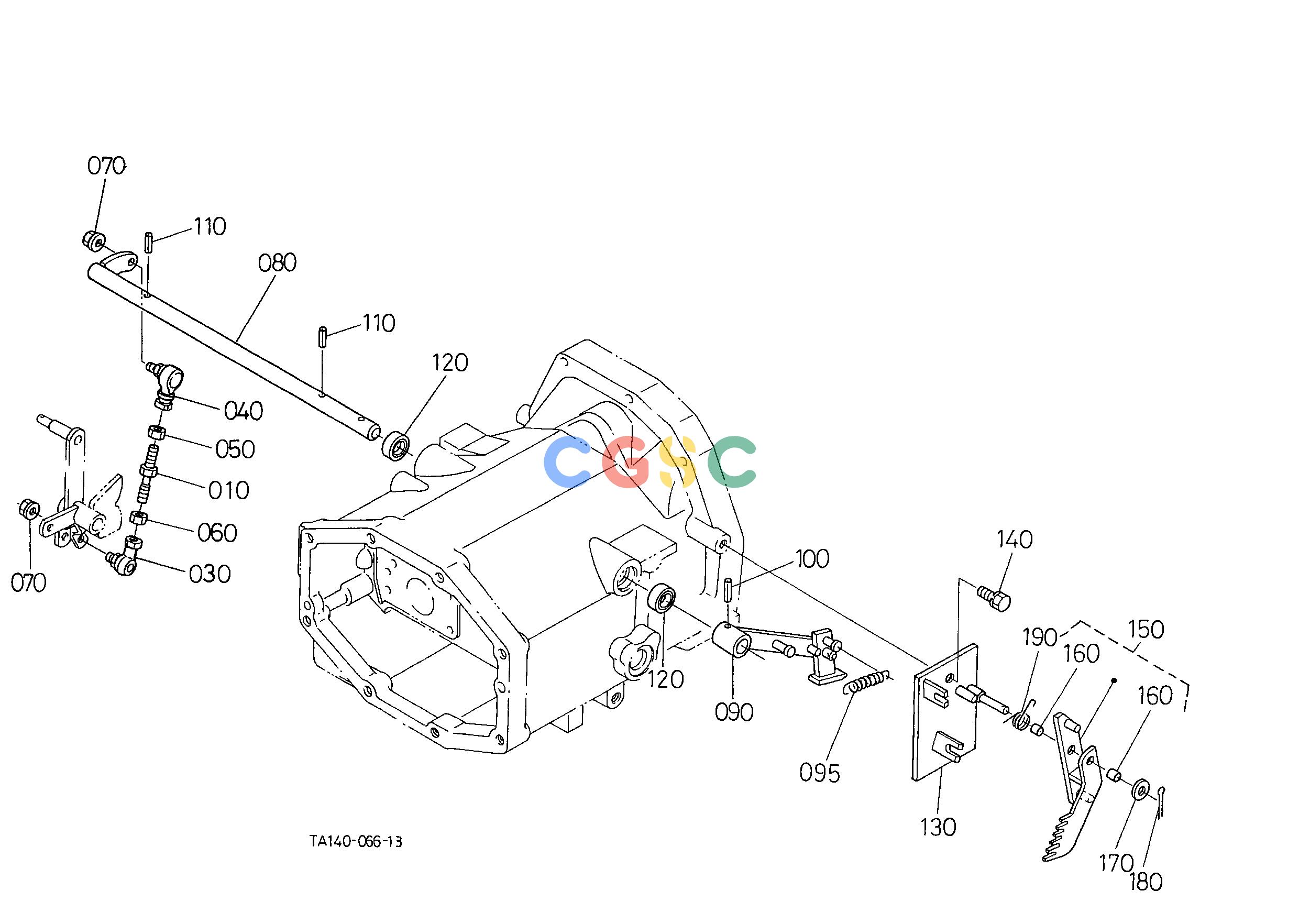

久保田零件查询E10600 CRUISE CONTROL LEVER [HST TYPE] SPEED CHANGE SHIFT FORK/SHIFT LEVEREPC Kubota online
广数供应链运营团队, 16 02月, 2025，浏览：
714 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 010. |
TA24021270
|
[1] |
ROD
|
0.0572(lbs); 0.026
|
| 030. |
4540495770
|
[1] |
END ROD
|
0.1100(lbs); 0.050
|
| 040. |
5472131850
|
[1] |
BALL LINK
|
0.1430(lbs); 0.065
|
| 050. |
3730041330
|
[1] |
NUT
|
0.0110(lbs); 0.005
|
| 060. |
0211450080
|
[1] |
NUT
|
0.0110(lbs); 0.005
|
| 070. |
0275150080
|
[2] |
NUT FLANGE
|
0.0132(lbs); 0.006
|
| 080. |
TA24021253
|
[1] |
SHAFT
|
0.0000(lbs); 0.000
|
| 080. |
TA24021254
|
[1] |
SHAFT
|
1.7160(lbs); 0.780
|
| 090. |
TA24021260
|
[1] |
LEVER HST LINK
|
0.5060(lbs); 0.230
|
| 095. |
6795044170
|
[1] |
LEVER SPRING
|
0.0286(lbs); 0.013
|
| 100. |
0541100625
|
[1] |
PIN SPRING
|
0.0088(lbs); 0.004
|
| 110. |
0541100635
|
[2] |
PIN SPRING
|
0.0110(lbs); 0.005
|
| 120. |
0950016267
|
[2] |
SEAL OIL
|
0.0110(lbs); 0.005
|
| 130. |
TA24055273
|
[1] |
BRACKET
|
1.5290(lbs); 0.695
|
| 140. |
0113351020
|
[2] |
BOLT
|
0.0440(lbs); 0.020
|
| 150. |
TA24055280
|
[1] |
ASSY LEVER
|
0.5830(lbs); 0.265
|
| 160. |
0851100806
|
[2] |
BUSH
|
0.0022(lbs); 0.001
|
| 170. |
0401360080
|
[1] |
WASHER PLAIN
|
0.0044(lbs); 0.002
|
| 180. |
0551150215
|
[1] |
PIN SPLIT
|
0.0022(lbs); 0.001
|
| 190. |
TA24055260
|
[1] |
SPRING
|
0.0110(lbs); 0.005
|
