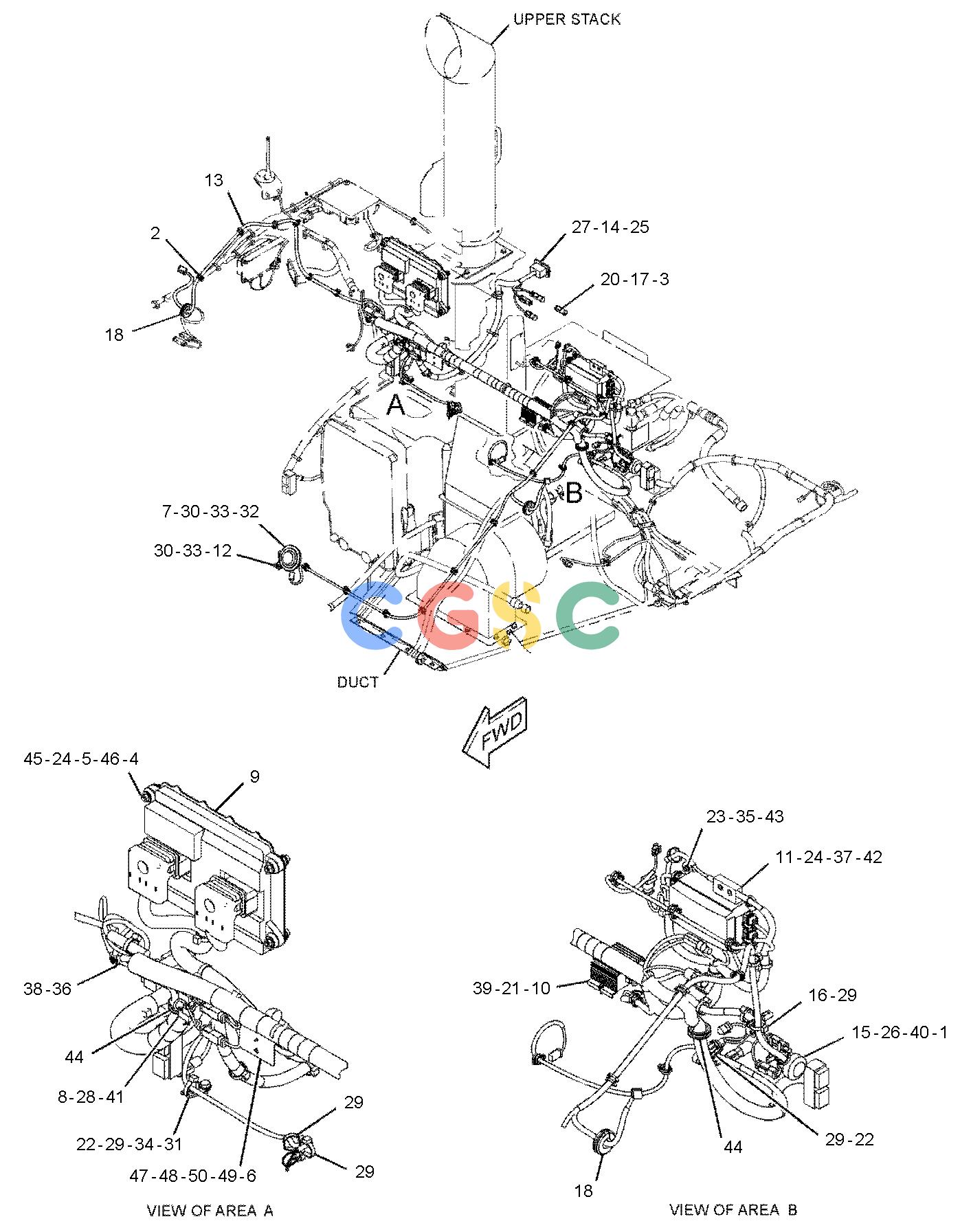

卡特零件查询（AP-1055E） 371-1135: WIRING GP-ELECTRONIC CONTROL
广数供应链运营团队, 16 02月, 2025，浏览：
158 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 3E-6328Y | [1] | ALARM GP(24-VOLT)(WARNING) | |
| 2. | 3S-2093 | [44] | STRAP-CABLE | |
| 3. | 8T-8737 | [6] | PLUG-SEAL | |
| 4. | 8T-9655 | [8] | MOUNT-ISOLATION | |
| 5. | 6I-1418 | [4] | SPACER(8.2X12.7X28.7-MM THK) | |
| 6. | 105-4684 | [1] | RELAY AS(24-VOLT)(GRADE, SLOPE) | |
| 7. | 163-1201 | [1] | HORN AS(24-VOLT, LOW TONE) | |
| 8. | 231-1389 | [2] | RESISTOR AS | |
| | | | (EACH INCLUDES) |
| | 8T-8729 | [2] | PIN-CONNECTOR(16-GA TO 18-GA) | |
| | 102-8802 | [1] | KIT-RECEPTACLE(2-PIN) | |
| | | | (INCLUDES RECEPTACLE AS & WEDGE) |
| 9. | 304-5691 | [1] | CONTROL GP-UNPROGRAMMED(MACHINE) | |
| 10. | 340-7160 | [1] | CONVERTER-POWER(24-VOLT TO 12-VOLT) | |
| 11. | 346-6713 | [1] | PANEL GP-FUSE | |
| | 248-2841 | [7] | RELAY AS(24-VOLT) | |
| 12. | 368-2070 | [1] | BRACKET | |
| 13. | 419-0787Y | [1] | HARNESS AS-CONTROL | |
| 14. | 096-6166 | [4] | WASHER-HARD(4.5X9X1-MM THK) | |
| 15. | 130-5300 | [2] | CLIP | |
| 16. | 132-5789 | [1] | CLIP(LADDER) | |
| 17. | 155-2260 | [1] | KIT-CONNECTING PLUG(3-PIN) | |
| | | | (INCLUDES PLUG AS, WEDGE & INTERFACE SEAL) |
| 18. | 1V-6688 | [2] | GROMMET | |
| 20. | 102-8803 | [1] | KIT-RECEPTACLE(3-PIN) | |
| | | | (INCLUDES RECEPTACLE AS & WEDGE) |
| 21. | 4B-4863 | [2] | WASHER(4.7X11X1.2-MM THK) | |
| 22. | 4P-7581 | [2] | CLIP(LADDER) | |
| 23. | 5C-2890M | [4] | NUT(M6X1-THD) | |
| 24. | 5C-7261M | [6] | NUT(M8X1.25-THD) | |
| 25. | 5C-8312M | [2] | NUT(M4X0.7-THD) | |
| 26. | 5P-4116 | [1] | WASHER-HARD(8.8X20.5X2-MM THK) | |
| 27. | 6V-9491M | [2] | SCREW-MACHINE(M4X0.7X20-MM) | |
| 28. | 6V-9671M | [4] | SCREW-MACHINE(M3X0.5X12-MM) | |
| 29. | 7K-1181 | [29] | STRAP-CABLE | |
| 30. | 7X-7729 | [3] | WASHER(11X25X3-MM THK) | |
| 31. | 8T-4121 | [1] | WASHER-HARD(11X21X2.5-MM THK) | |
| 32. | 8T-4133M | [1] | NUT(M10X1.5-THD) | |
| 33. | 8T-4137M | [2] | BOLT(M10X1.5X20-MM) | |
| 34. | 8T-4191M | [1] | BOLT(M10X1.5X16-MM) | |
| 35. | 8T-4205 | [4] | WASHER-HARD(7.2X14.5X2-MM THK) | |
| 36. | 8T-4223 | [1] | WASHER-HARD(13.5X25.5X3-MM THK) | |
| 37. | 8T-4224 | [2] | WASHER-HARD(8.8X16X2-MM THK) | |
| 38. | 8T-4244M | [1] | NUT(M12X1.75-THD) | |
| 39. | 8T-4647M | [2] | SCREW-MACHINE(M4X0.7X20-MM) | |
| 40. | 8T-4908M | [1] | BOLT(M8X1.25X25-MM) | |
| 41. | 9B-1117 | [4] | LOCKWASHER | |
| 42. | 9F-5644 | [2] | LOCKWASHER | |
| 43. | 9X-2045M | [4] | SCREW-TRUSS HEAD(M6X1X20-MM) | |
| 44. | 9X-7462 | [2] | GROMMET | |
| 45. | 352-0244 | [8] | WASHER-HARD(8.8X20.5X2-MM THK) | |
| 46. | 297-1003M | [4] | BOLT-SOCKET HEAD(M8X1.25X45-MM) | |
| 47. | 419-1605 | [1] | SPRING-HOLDER | |
| 48. | 419-0791 | [1] | PLATE | |
| 49. | 6V-9505M | [2] | SCREW-MACHINE(M3X0.5X25-MM) | |
| 50. | 391-1756 | [2] | WASHER(3.3X9.5X1.6-MM THK) | |
| | M | | METRIC PART |
| | R | | REMANUFACTURED PART MAY BE AVAILABLE |
| | Y | | SEPARATE ILLUSTRATION |
