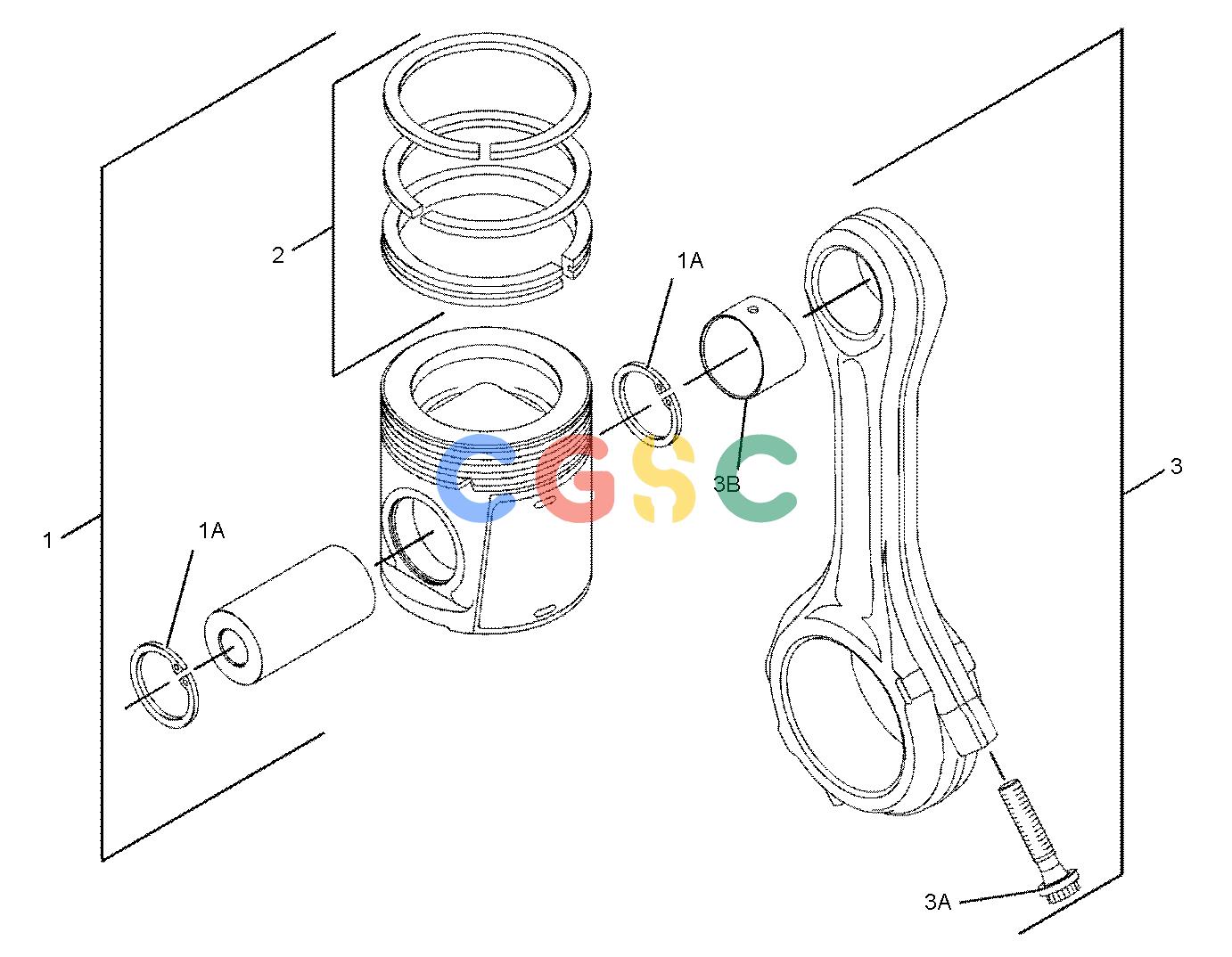

卡特零件查询（AP-1055E） 307-2160: PISTON & ROD GP
广数供应链运营团队, 16 02月, 2025，浏览：
749 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 282-2224 | [6] | PISTON AS | |
| | | | (EACH INCLUDES) |
| 1A. | 124-3536 | [2] | RING-RETAINING | |
| | 380-2063AB | [1] | KIT-PISTON(0.5-MM OS) | |
| 2. | 276-7476 | [6] | KIT-PISTON RING | |
| | | | (EACH INCLUDES) |
| | AB | [1] | PIN |
| 3. | 331-0290J | [6] | CONNECTING ROD GP(F) | |
| | | | -OR- |
| | 331-0292J | [6] | CONNECTING ROD GP(L) | |
| | | | -OR- |
| | 331-0291J | [6] | CONNECTING ROD GP(J) | |
| | | | (EACH ROD AS INCLUDES) |
| 3A. | 323-9312M | [2] | BOLT(M10X1X50-MM) | |
| 3B. | 276-7478 | [1] | BUSHING | |
| | A | | NOT PART OF THIS GROUP |
| | B | | USE AS REQUIRED |
| | J | | ENSURE THAT CORRECT ROD LENGTH IS FITTED |
| | M | | METRIC PART |
