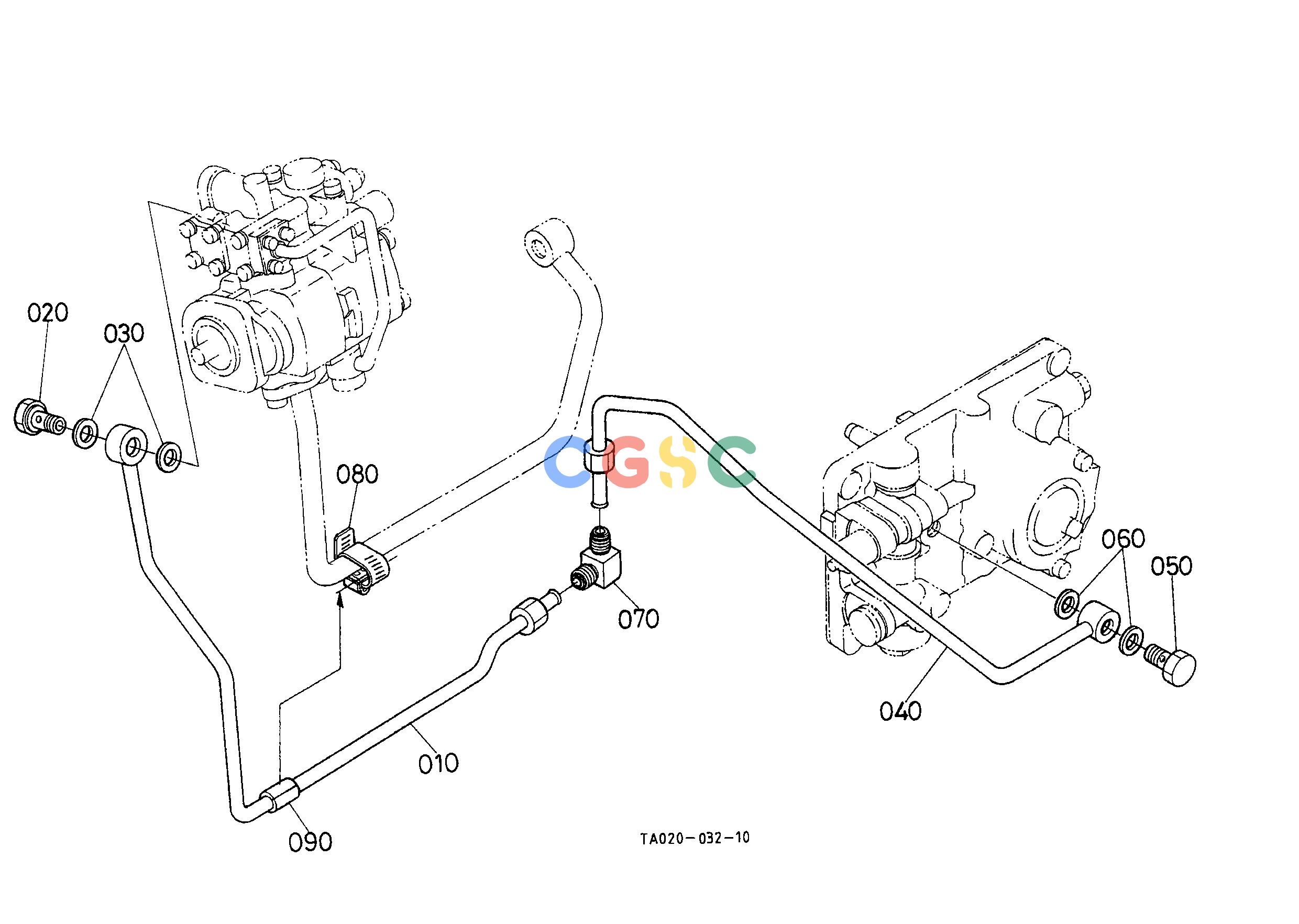

久保田零件查询H23002 PTO HYDRAULIC OIL LINE [GST TYPE] [W/O IND-PTO] ## [SANS TYPE DE PDF IND] HYDRAULIC SYSTEMEPC Kubota online
广数供应链运营团队, 16 02月, 2025，浏览：
665 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 010. |
TA02066530
|
[1] |
COMP.PIPE GST
|
0.4620(lbs); 0.210
|
| 020. |
3407666590
|
[1] |
BOLT JOINT
|
0.1100(lbs); 0.050
|
| 030. |
0471400200
|
[2] |
GASKET
|
0.0044(lbs); 0.002
|
| 040. |
TA04066570
|
[1] |
COMP.PIPE GST
|
0.4510(lbs); 0.205
|
| 050. |
3407666590
|
[1] |
BOLT JOINT
|
0.1100(lbs); 0.050
|
| 060. |
0471400200
|
[2] |
GASKET
|
0.0044(lbs); 0.002
|
| 070. |
TA04066550
|
[1] |
JOINT
|
0.1760(lbs); 0.080
|
| 080. |
6795536230
|
[1] |
CLAMP
|
0.0506(lbs); 0.023
|
| 090. |
3135145270
|
[1] |
PIPE RUBBER
|
0.0066(lbs); 0.003
|
