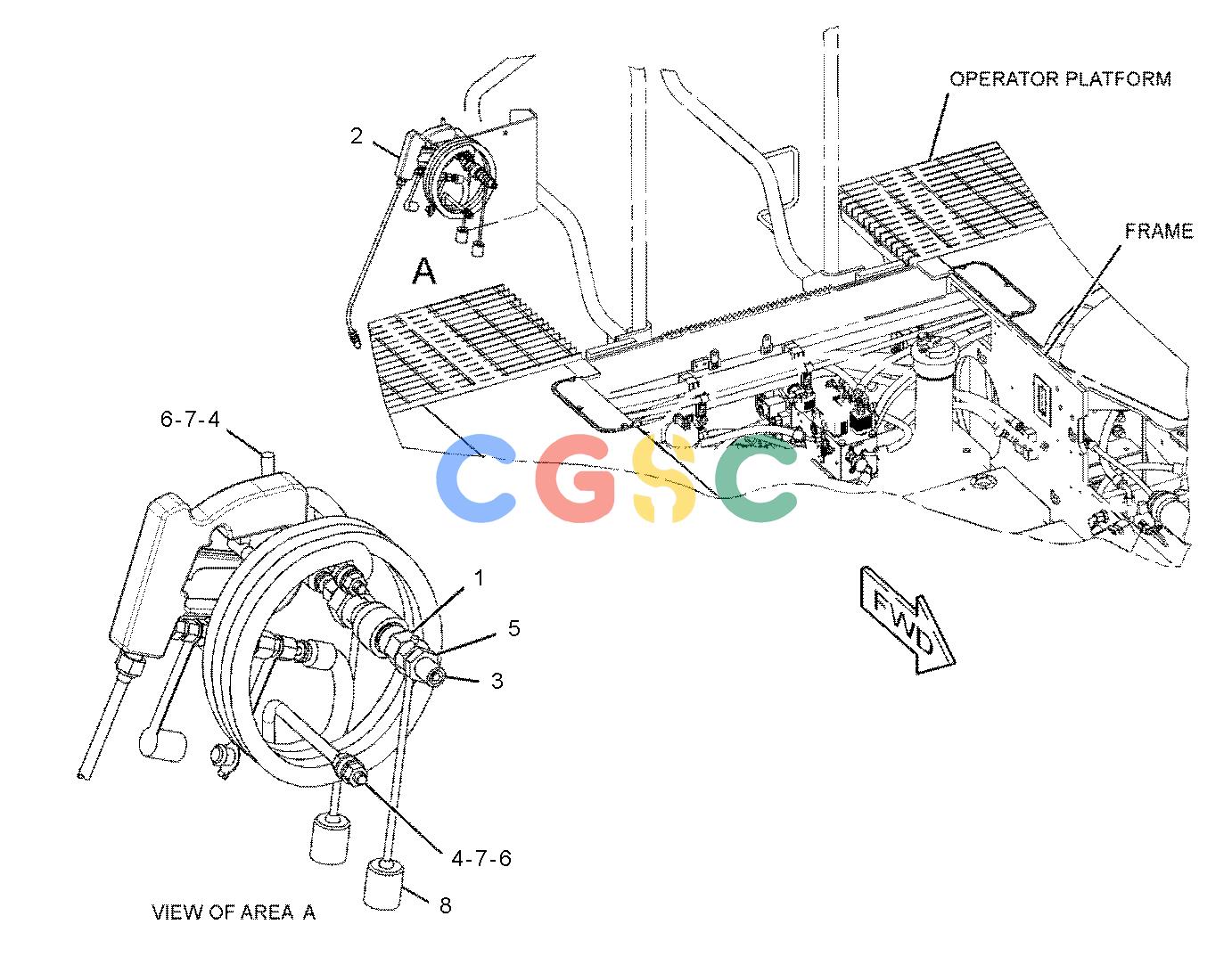

| Pos. | Part No | Qty | Parts name | Comments |
|---|---|---|---|---|
| 1. | 5R-6306 | [1] | COUPLER AS-QUICK DISCONNECT(MALE) | |
| 2. | 7R-4741Y | [1] | LINES GP-SPRAY DOWN | |
| 3. | 377-9614 | [1] | CONNECTOR AS | |
| 228-7089 | [1] | SEAL-O-RING | ||
| 238-5080 | [1] | SEAL-O-RING | ||
| 281-5878 | [1] | CONNECTOR | ||
| 4. | 292-0979 | [2] | ROD-THREADED | |
| 5. | 6V-9168 | [1] | NUT(11/16-16-THD) | |
| 6. | 8T-4121 | [4] | WASHER-HARD(11X21X2.5-MM THK) | |
| 7. | 8T-4133M | [4] | NUT(M10X1.5-THD) | |
| 8. | 5R-6302 | [1] | CAP-DUST | |
| M | METRIC PART | |||
| Y | SEPARATE ILLUSTRATION | |||
