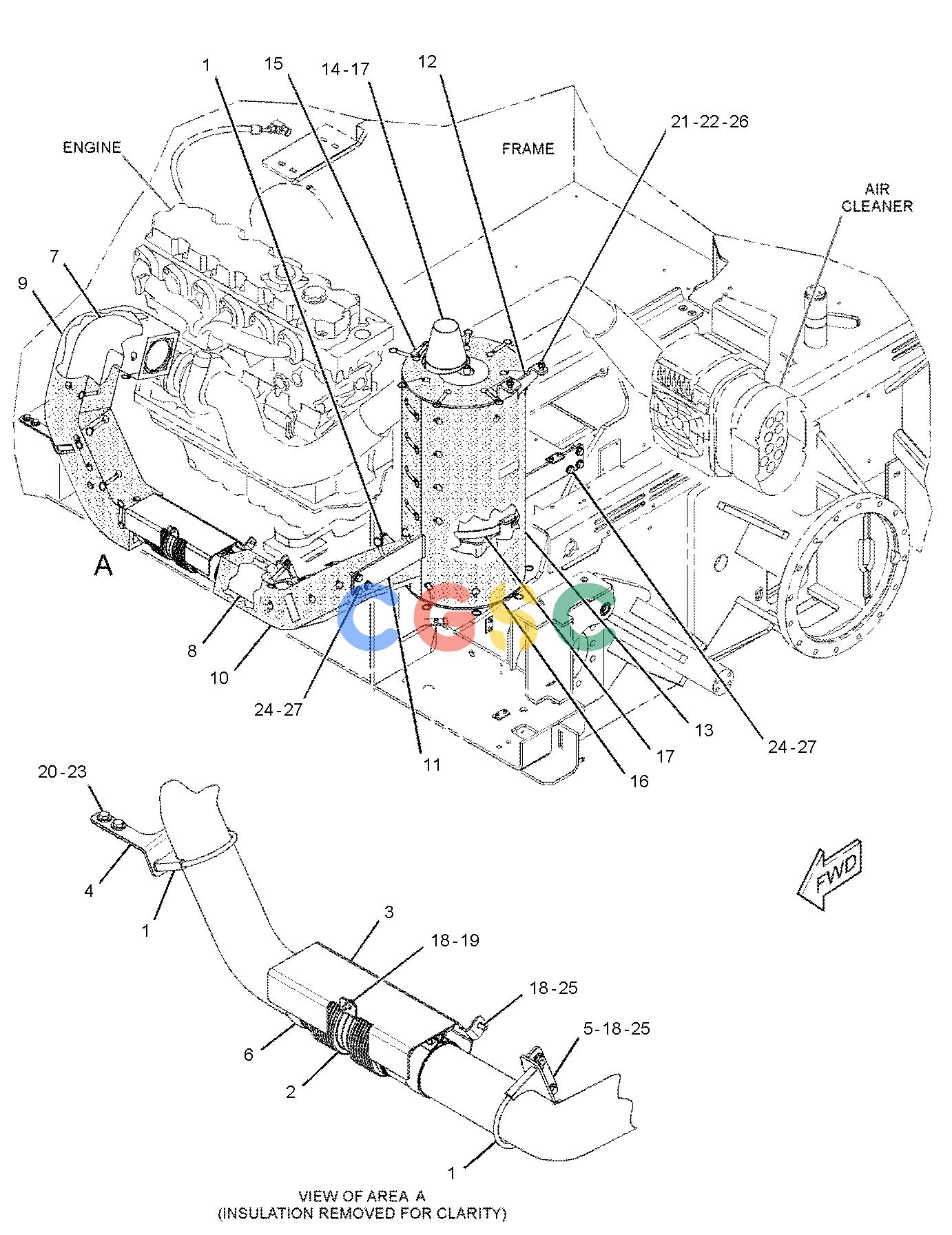

卡特零件查询（AP-1055E） 366-5068: LINES GP-EXHAUST
广数供应链运营团队, 16 02月, 2025，浏览：
437 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 061-9793 | [3] | CLAMP-TUBE | |
| 2. | 343-9012 | [1] | BELLOWS AS | |
| | 034-1432 | [2] | STRAP-CABLE | |
| | 337-7325 | [1] | CLAMP-BAND | |
| 3. | 344-6661 | [1] | SHIELD | |
| 4. | 344-9555 | [1] | BRACKET | |
| 5. | 344-9556 | [1] | BRACKET | |
| 6. | 346-0334 | [1] | CLAMP-BAND | |
| 7. | 354-0868 | [1] | TUBE-EXHAUST | |
| 8. | 354-0871 | [1] | TUBE-EXHAUST | |
| 9. | 384-1888 | [1] | INSULATION | |
| 10. | 354-0874 | [1] | INSULATION | |
| 11. | 354-0875 | [1] | BRACKET AS | |
| 12. | 354-0876 | [1] | BRACKET | |
| 13. | 384-1889 | [1] | INSULATION | |
| 14. | 371-6450 | [1] | MUFFLER | |
| 15. | 384-1890 | [1] | INSULATION | |
| 16. | 384-1891 | [1] | INSULATION | |
| 17. | 289-4164 | [2] | STRAP AS | |
| 18. | 5P-4116 | [4] | WASHER-HARD(8.8X20.5X2-MM THK) | |
| 19. | 7X-2536M | [1] | BOLT(M8X1.25X14-MM) | |
| 20. | 7X-7729 | [2] | WASHER(11X25X3-MM THK) | |
| 21. | 8T-4121 | [4] | WASHER-HARD(11X21X2.5-MM THK) | |
| 22. | 8T-4133M | [2] | NUT(M10X1.5-THD) | |
| 23. | 8T-4136M | [2] | BOLT(M10X1.5X25-MM) | |
| 24. | 8T-4139M | [6] | BOLT(M12X1.75X30-MM) | |
| 25. | 8T-4189M | [3] | BOLT(M8X1.25X20-MM) | |
| 26. | 8T-4196M | [2] | BOLT(M10X1.5X35-MM) | |
| 27. | 8T-4223 | [6] | WASHER-HARD(13.5X25.5X3-MM THK) | |
| | M | | METRIC PART |
