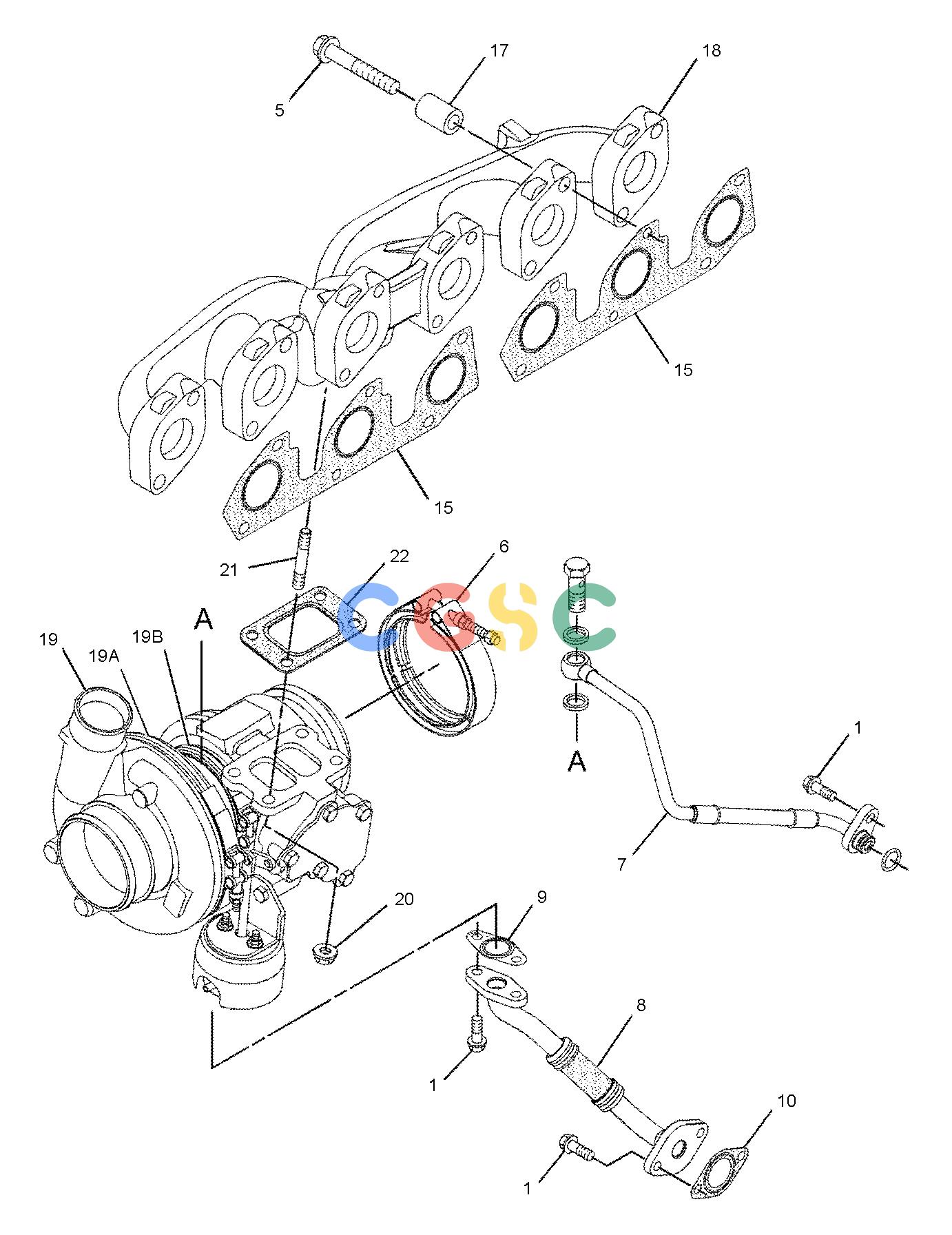

卡特零件查询（AP-1055E） 313-4801: TURBOCHARGER GP
广数供应链运营团队, 16 02月, 2025，浏览：
208 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 6I-0217M | [5] | BOLT(M8X1.25X20-MM) | |
| 2. | 6I-0817 | [1] | ADAPTER | |
| 3. | 9Y-9381 | [1] | WASHER-HARD | |
| 4. | 100-4830M | [2] | BOLT(M10X1.5X20-MM) | |
| 5. | 238-8292 | [12] | BOLT-FLANGE HEAD | |
| 6. | 277-9463 | [1] | CLAMP | |
| 7. | 368-8559Y | [1] | LINES GP-TURBOCHARGER OIL | |
| 8. | 278-0015 | [1] | TUBE AS-TURBOCHARGER | |
| 9. | 437-4170 | [1] | GASKET | |
| 10. | 278-0017 | [1] | GASKET | |
| 11. | 278-0310 | [1] | SOLENOID AS(WASTEGATE) | |
| 12. | 278-0311 | [1] | TUBE AS | |
| 12A. | 4B-8774 | [1] | NUT-FLARED | |
| 12B. | 032-8047 | [1] | FERRULE | |
| 12C. | 133-9469 | [1] | CLIP | |
| 12D. | 300-6520 | [1] | HOSE AS | |
| 12E. | 107-2348 | [2] | CLIP | |
| 13. | 303-2116 | [6] | CLIP | |
| 15. | 279-9361 | [2] | GASKET-EXHAUST | |
| 16. | 285-3197 | [1] | TUBE AS | |
| 16A. | 4B-8774 | [1] | NUT-FLARED | |
| 16B. | 032-8047 | [2] | FERRULE | |
| 16C. | 035-8014 | [1] | NUT | |
| 17. | 286-7851 | [12] | SPACER | |
| 18. | 340-9726 | [1] | MANIFOLD-EXHAUST | |
| 19. | 315-4695 | [1] | TURBOCHARGER | |
| 19A. | 277-9602 | [1] | CLAMP | |
| 19B. | 277-9603 | [1] | CLAMP | |
| 20. | 6I-0563M | [4] | NUT(M10X1.5-THD) | |
| 21. | 367-3340 | [4] | STUD | |
| 22. | 141-8589 | [1] | GASKET(TURBOCHARGER) | |
| | M | | METRIC PART |
| | R | | REMANUFACTURED PART MAY BE AVAILABLE |
| | Y | | SEPARATE ILLUSTRATION |
