卡特零件查询（AP-1055E） 327-9164: WASHDOWN GP
广数供应链运营团队, 16 02月, 2025，浏览：
528 次

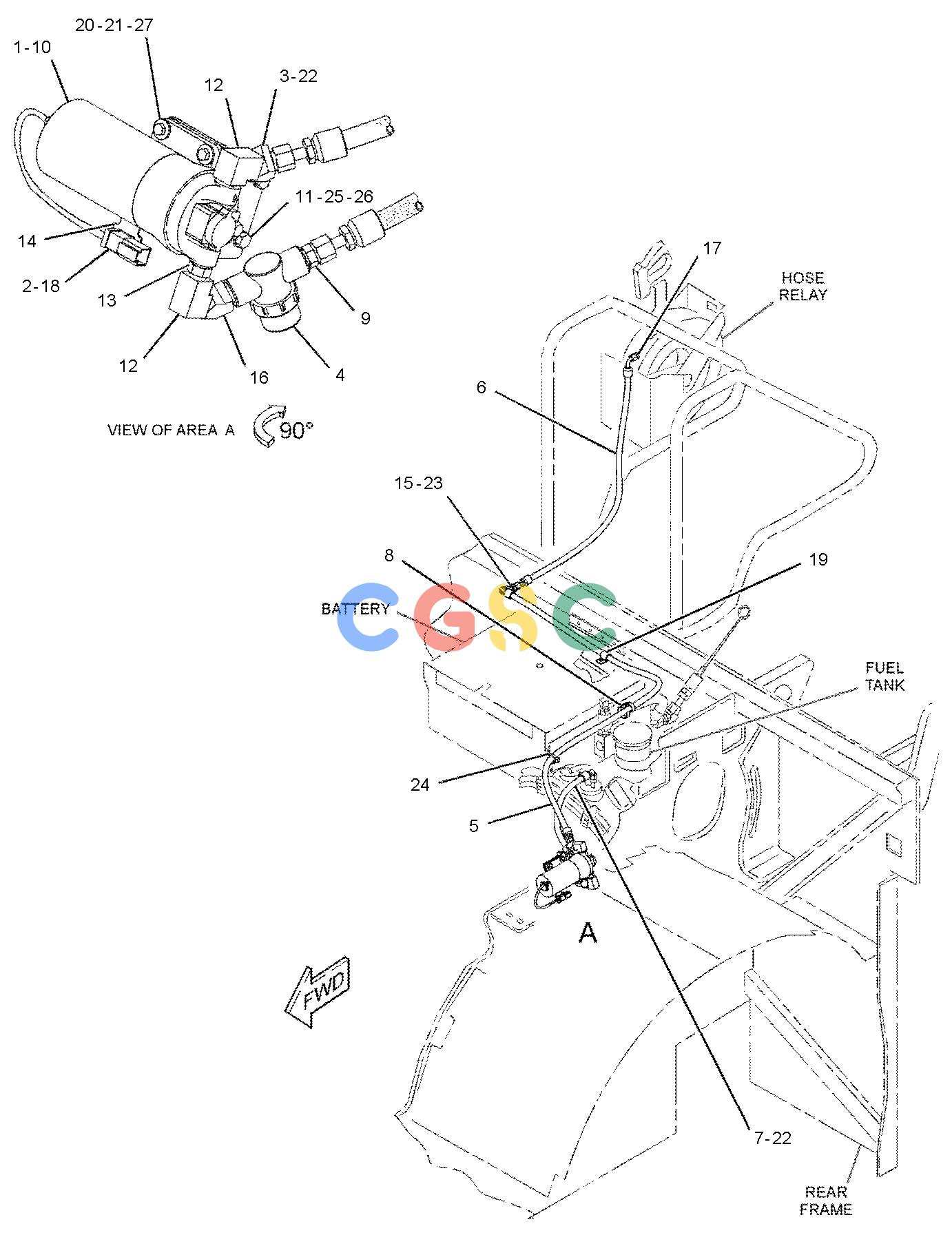

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 9X-1813E | | SLEEVE(28-CM) | |
| 2. | 9X-3401 | [2] | PIN-CONNECTOR(16-GA TO 18-GA) | |
| 3. | 103-7268 | [1] | ADAPTER | |
| 4. | 140-3562 | [1] | STRAINER(DIESEL FUEL) | |
| 5. | 144-3944I | [1] | HOSE AS | |
| 6. | 150-8985I | [1] | HOSE AS | |
| 7. | 167-1827I | [1] | HOSE AS | |
| 8. | 177-2215 | [1] | STRAP-DUAL CLAMP | |
| 9. | 203-2059 | [1] | CONNECTOR AS | |
| | 6V-8397 | [1] | SEAL-O-RING | |
| | 8C-6869 | [1] | CONNECTOR | |
| 10. | 266-4529Y | [1] | PUMP & MOTOR GP-WASHDOWN | |
| 11. | 345-8038 | [1] | PLATE | |
| 12. | 003-2143 | [2] | ELBOW | |
| 13. | 004-6683 | [1] | FITTING | |
| 14. | 130-5300 | [1] | CLIP | |
| 15. | 148-8366 | [1] | ELBOW AS | |
| | 6V-8397 | [1] | SEAL-O-RING | |
| | 6V-8987 | [1] | ELBOW | |
| 16. | 1L-2279 | [1] | ELBOW | |
| 17. | 321-8612 | [1] | PLUG AS | |
| | 6V-9508 | [1] | PLUG(11/16-16-THD) | |
| | 221-3494 | [1] | SEAL-O-RING | |
| 18. | 102-8802 | [1] | KIT-RECEPTACLE(2-PIN) | |
| | | | (INCLUDES RECEPTACLE AS & WEDGE) |
| 19. | 3S-8664 | [1] | CLIP(LOOP) | |
| 20. | 5P-4115 | [8] | WASHER-HARD(7.2X19X2-MM THK) | |
| 21. | 6V-7743M | [4] | LOCKNUT(M6X1-THD) | |
| 22. | 6V-8397 | [2] | SEAL-O-RING | |
| 23. | 6V-9168 | [1] | NUT(11/16-16-THD) | |
| 24. | 7K-1181 | [1] | STRAP-CABLE | |
| 25. | 8T-4224 | [2] | WASHER-HARD(8.8X16X2-MM THK) | |
| 26. | 8T-4908M | [2] | BOLT(M8X1.25X25-MM) | |
| 27. | 8T-4971M | [4] | BOLT(M6X1X30-MM) | |
| | E | | ORDER BY THE CENTIMETER |
| | I | | REFER TO HYDRAULIC INFORMATION SYSTEM |
| | M | | METRIC PART |
| | Y | | SEPARATE ILLUSTRATION |
