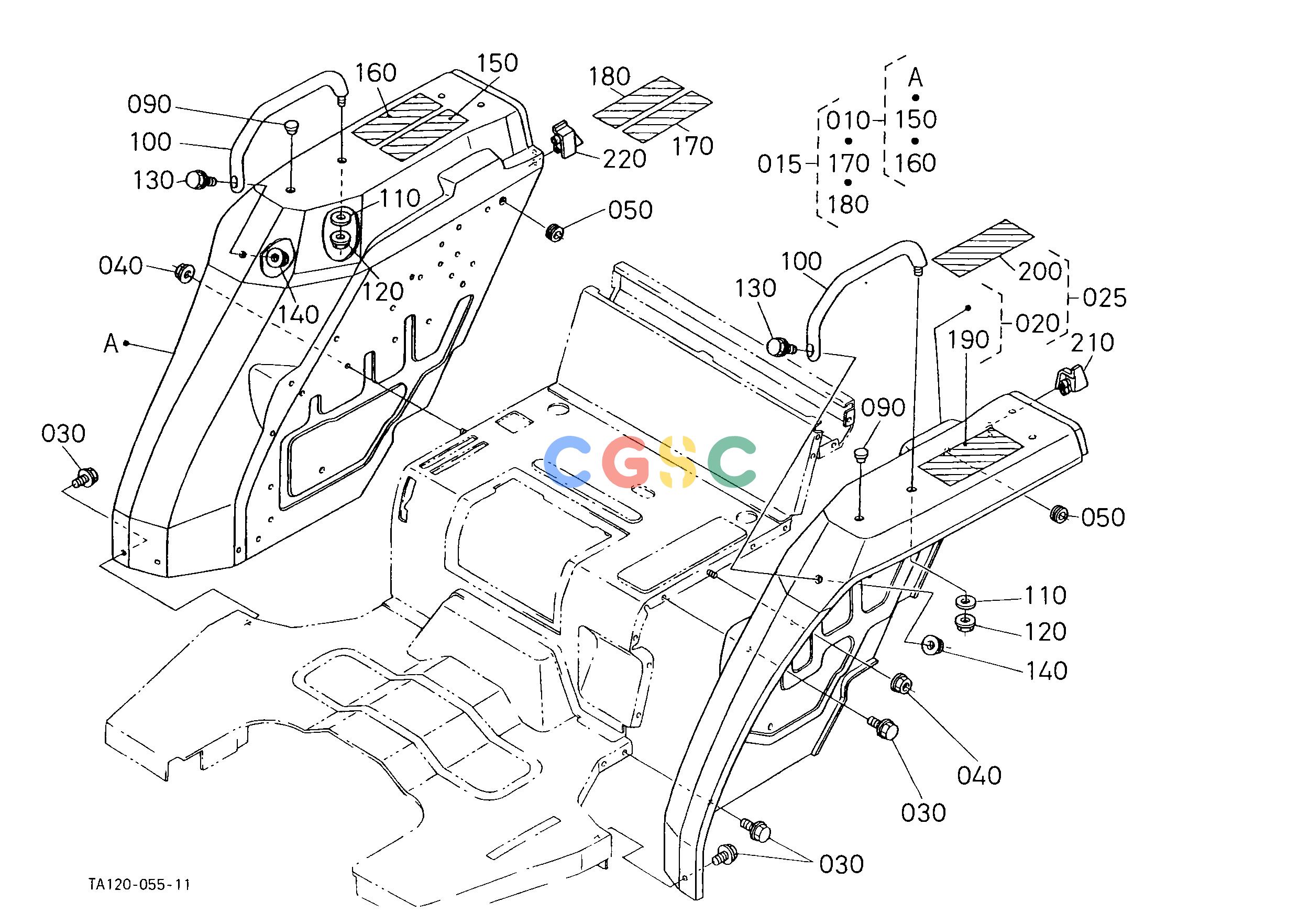

| Pos. | Part No | Qty | Parts name | Comments |
|---|---|---|---|---|
| 010. | TA12099520 | [1] | KIT FENDER RH(A) | ENGLISH 18.2600(lbs); 8.300 |
| 015. | TA12199520 | [1] | KIT FENDER RH(B) | FRENCH 18.2600(lbs); 8.300 |
| 020. | TA12099530 | [1] | KIT FENDER LH(A) | ENGLISH 18.2600(lbs); 8.300 |
| 025. | TA12199530 | [1] | KIT FENDER LH(B) | FRENCH 18.2600(lbs); 8.300 |
| 030. | 0175450812 | [28] | BOLT FLANGE | 0.0220(lbs); 0.010 |
| 040. | 0275150080 | [2] | NUT FLANGE | 0.0132(lbs); 0.006 |
| 050. | 3215029180 | [2] | CAP RUBBER | 0.0044(lbs); 0.002 |
| 090. | 3081029170 | [2] | PLUG | 0.0066(lbs); 0.003 |
| 100. | T027029442 | [2] | GRIP | 0.6600(lbs); 0.300 |
| 110. | 0401360100 | [2] | WASHER PLAIN | 0.0066(lbs); 0.003 |
| 120. | 0277160100 | [2] | NUT FLANGE | 0.0220(lbs); 0.010 |
| 130. | T018083590 | [2] | BOLT FLANGE | 0.0484(lbs); 0.022 |
| 140. | 0277160100 | [2] | NUT FLANGE | 0.0220(lbs); 0.010 |
| 150. | TA04049320 | [1] | LABEL ROPS WARNING | ENGLISH 0.0022(lbs); 0.001 |
| 160. | TA14049920 | [1] | LABEL SHUTTLE | ENGLISH 0.0110(lbs); 0.005 |
| 170. | TA04049150 | [1] | LABEL ROPS WARNING | FRENCH 0.0066(lbs); 0.003 |
| 180. | TA14149920 | [1] | LABEL SHUTTLE | FRENCH 0.0110(lbs); 0.005 |
| 190. | 3526034913 | [1] | LABEL SAFETY | ENGLISH 0.0110(lbs); 0.005 |
| 200. | TA04165700 | [1] | LABEL SAFETY | FRENCH 0.0220(lbs); 0.010 |
| 210. | 3404068980 | [1] | PLATE FENDER LH | ; =>80833 0.0440(lbs); 0.020 |
| 220. | 3404068990 | [1] | PLATE FENDER RH | ; =>80833 0.0550(lbs); 0.025 |
