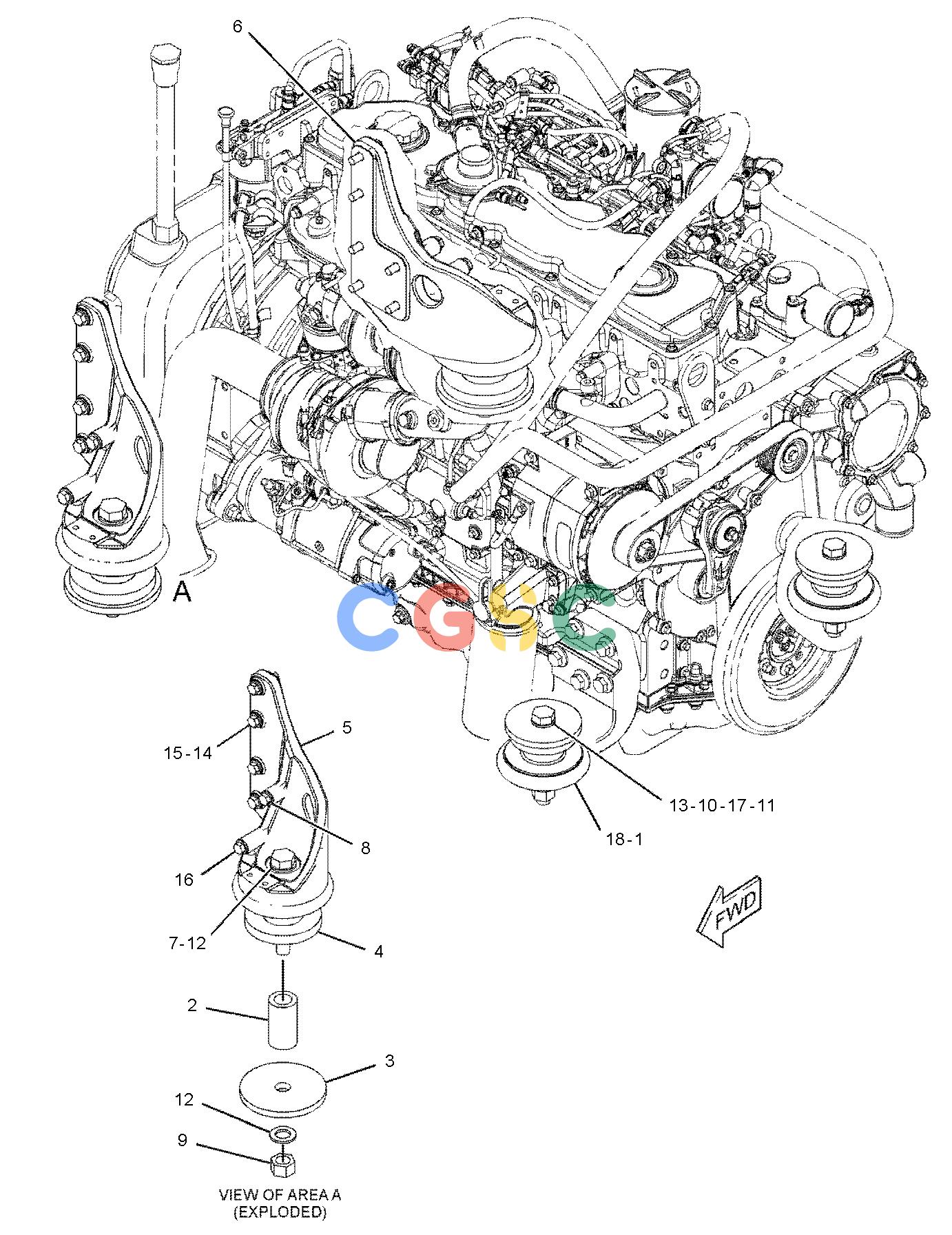

卡特零件查询（AP-1055E） 331-6964: MOUNTING GP-ENGINE FLEXIBLE
广数供应链运营团队, 16 02月, 2025，浏览：
196 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 9W-6582 | [2] | SLEEVE | |
| 2. | 9W-7385 | [2] | SLEEVE | |
| 3. | 9W-7388 | [2] | WASHER(26X144X12-MM THK) | |
| 4. | 155-9412 | [2] | MOUNT AS | |
| 5. | 340-1195 | [1] | SUPPORT | |
| 6. | 340-1196 | [1] | SUPPORT | |
| 7. | 7X-2465M | [2] | BOLT(M24X3X180-MM) | |
| 8. | 7X-2549M | [2] | BOLT(M12X1.75X100-MM) | |
| 9. | 8T-4001M | [2] | NUT(M24X3-THD) | |
| 10. | 8T-4123 | [4] | WASHER(3.62X5.75X0.375-MM THK) | |
| 11. | 8T-4131M | [2] | NUT(M20X2.5-THD) | |
| 12. | 8T-4167 | [4] | WASHER-HARD(26X44X4-MM THK) | |
| 13. | 8T-4170M | [2] | BOLT(M20X2.5X150-MM) | |
| 14. | 8T-4194M | [8] | BOLT(M12X1.75X50-MM) | |
| 15. | 8T-4223 | [12] | WASHER-HARD(13.5X25.5X3-MM THK) | |
| 16. | 8T-7930M | [2] | BOLT(M12X1.75X160-MM) | |
| 17. | 9W-6584 | [2] | WASHER(20.5X114X10-MM THK) | |
| 18. | 9W-9930 | [2] | MOUNT AS | |
| | M | | METRIC PART |
