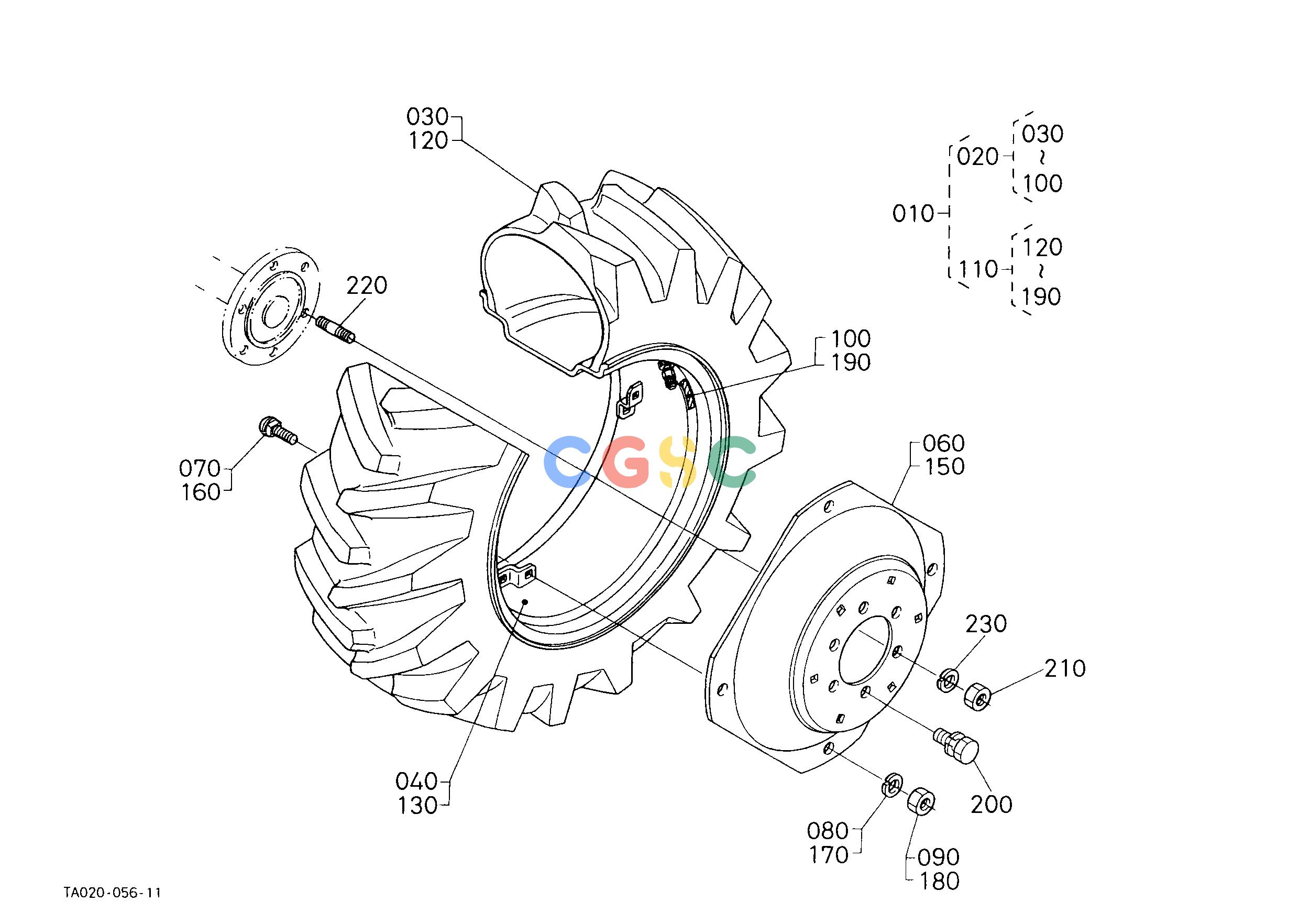

久保田零件查询P11001 REAR WHEEL (11.2-24) FRONT WHEEL/REAR WHEELEPC Kubota online
广数供应链运营团队, 16 02月, 2025，浏览：
766 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 010. |
3506027600
|
[1] |
ASSY REAR WHEEL
|
0.0000(lbs); 0.000
|
| 020. |
3506027910
|
[1] |
ASSY REAR WHEEL LH
|
0.0000(lbs); 0.000
|
| 030. |
3506027620
|
[1] |
TIRE
|
0.0000(lbs); 0.000
|
| 040. |
3507027640
|
[1] |
RIM
|
0.0000(lbs); 0.000
|
| 060. |
3508027660
|
[1] |
DISK
|
37.1800(lbs); 16.900
|
| 070. |
3122027680
|
[4] |
BOLT
|
0.1980(lbs); 0.090
|
| 080. |
0451260160
|
[4] |
WASHER SPRING
|
0.0220(lbs); 0.010
|
| 090. |
0217450160
|
[4] |
NUT
|
0.0484(lbs); 0.022
|
| 100. |
3506027980
|
[1] |
LABEL TIRE LH
|
0.0000(lbs); 0.000
|
| 110. |
3506027990
|
[1] |
ASSY REAR WHEEL RH
|
0.0000(lbs); 0.000
|
| 120. |
3506027620
|
[1] |
TIRE
|
0.0000(lbs); 0.000
|
| 130. |
3507027640
|
[1] |
RIM
|
0.0000(lbs); 0.000
|
| 150. |
3508027660
|
[1] |
DISK
|
37.1800(lbs); 16.900
|
| 160. |
3122027680
|
[4] |
BOLT
|
0.1980(lbs); 0.090
|
| 170. |
0451260160
|
[4] |
WASHER SPRING
|
0.0220(lbs); 0.010
|
| 180. |
0217450160
|
[4] |
NUT
|
0.0484(lbs); 0.022
|
| 190. |
3506027970
|
[1] |
LABEL TIRE RH
|
0.0000(lbs); 0.000
|
| 200. |
0107351630
|
[8] |
BOLT
|
0.1738(lbs); 0.079
|
| 200. |
0113351630
|
[8] |
BOLT
|
0.1804(lbs); 0.082
|
| 210. |
0207650160
|
[4] |
NUT
|
0.0660(lbs); 0.030
|
| 220. |
0151751632
|
[4] |
STUD
|
0.1672(lbs); 0.076
|
| 220. |
0151751635
|
[4] |
STUD
|
0.1716(lbs); 0.078
|
| 230. |
0451260160
|
[4] |
WASHER SPRING
|
0.0220(lbs); 0.010
|
