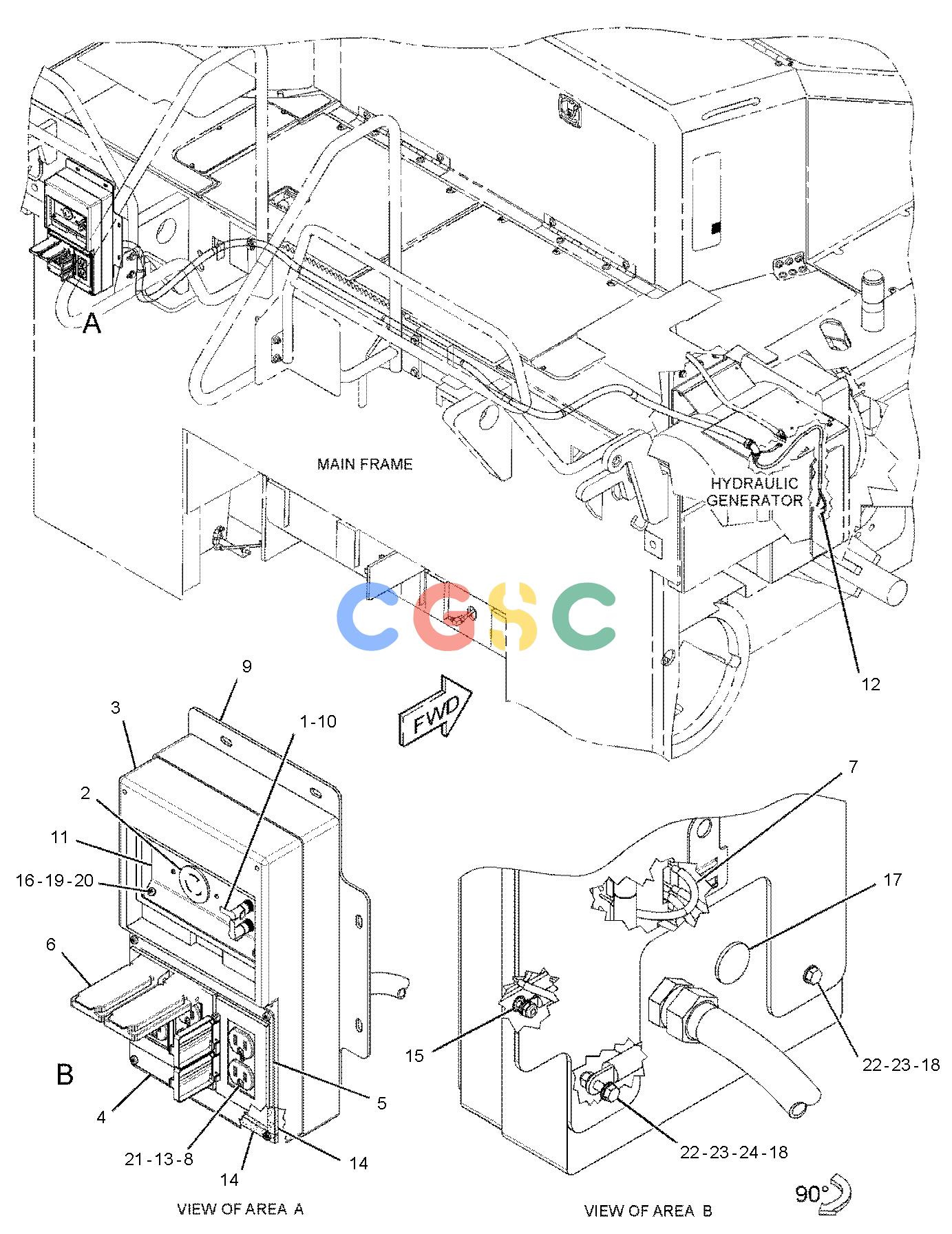

卡特零件查询（AP-1055E） 371-4346: PANEL GP-POWER
广数供应链运营团队, 16 02月, 2025，浏览：
372 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 190-2563 | [2] | HOLDER-FUSE | |
| 2. | 197-1875 | [1] | RECEPTACLE | |
| 3. | 335-6215 | [1] | ENCLOSURE GP-ELECTRICAL | |
| | 380-2611 | [1] | COVER | |
| | 380-2612 | [1] | LATCH | |
| | 380-2613 | [1] | SEAL | |
| 4. | 335-6300 | [1] | PLATE | |
| 5. | 336-0258 | [1] | COVER-OUTLET(WEATHERPROOF, SINGLE GANG) | |
| 6. | 336-0351 | [1] | COVER-OUTLET(WEATHERPROOF, DOUBLE GANG) | |
| 7. | 337-0817 | [1] | WIRE AS(12-GA, RED) | |
| 8. | 343-6802 | [3] | RECEPTACLE | |
| 9. | 347-8781 | [1] | PLATE AS | |
| | 130-5300 | [1] | CLIP | |
| 10. | 371-1684 | [2] | FUSE(20-AMPERE) | |
| 11. | 371-4342 | [1] | BRACKET | |
| 12. | 371-4351 | [1] | HARNESS AS-POWER | |
| | 6Y-6812 | [1] | ELBOW-CONNECTOR | |
| | 6Y-6814 | [1] | CONNECTOR | |
| | 9G-4342 | [1] | TERMINAL-RING(4-GA, NO. 10 SCREW) | |
| | 5P-5618 | [4] | TERMINAL-BLADE(10-GA TO 12-GA) | |
| | 2L-8066 | [1] | TERMINAL-RING(10-GA TO 12-GA, NO. 10 SCREW) | |
| | 2L-8069 | [1] | TERMINAL-RING(2-GA TO 10-GA, 3/8-IN SCREW) | |
| | 119-3662E | | TUBE-HEAT SHRINK(10.85-MM DIA)(20-CM) | |
| 13. | 096-6166 | [6] | WASHER-HARD(4.5X9X1-MM THK) | |
| 14. | 128-2596D | | SEAL(0.2-M EACH) | |
| 15. | 1H-4393 | [1] | LOCKWASHER | |
| 16. | 3B-4501 | [4] | LOCKWASHER | |
| 17. | 4Y-4281 | [1] | PLUG | |
| 18. | 5C-2874M | [4] | NUT(M5X0.8-THD) | |
| 19. | 5C-8312M | [4] | NUT(M4X0.7-THD) | |
| 20. | 6V-5210M | [4] | SCREW-MACHINE(M4X0.7X10-MM) | |
| 21. | 7D-6922 | [6] | LOCKNUT(6-32-THD) | |
| 22. | 8T-0289M | [4] | BOLT(M5X0.8X20-MM) | |
| 23. | 8T-0328 | [8] | WASHER-HARD(5.5X10X1-MM THK) | |
| 24. | 096-0192 | [1] | LOCKWASHER | |
| | D | | ORDER BY THE METER |
| | E | | ORDER BY THE CENTIMETER |
| | M | | METRIC PART |
