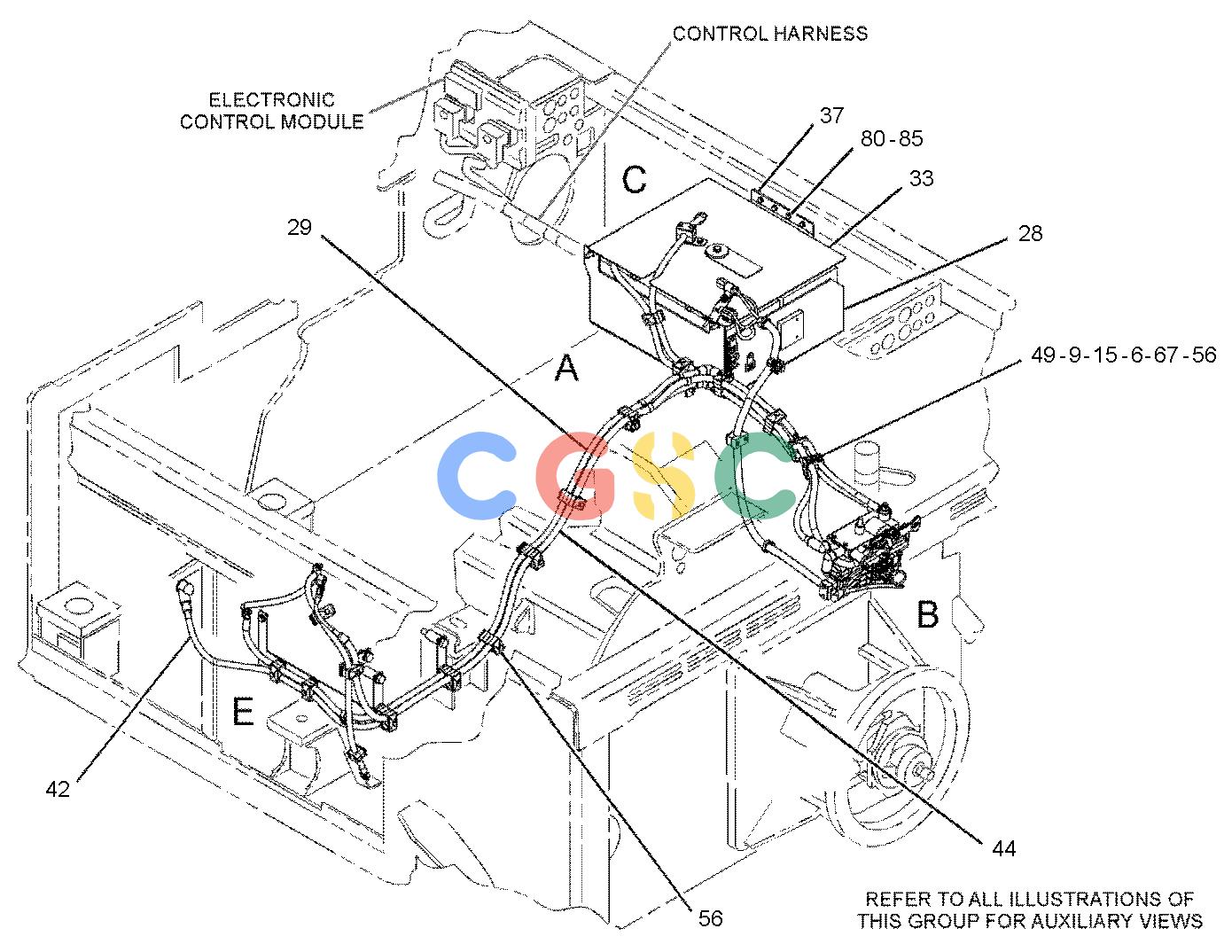

| 1. | 7V-5628 | [3] | PLATE(TOP) | |
| 2. | 7X-8877 | [1] | HOLD-DOWN-BATTERY | |
| 3. | 8T-8799 | [4] | BOOT(RED) | |
| 4. | 9G-2758 | [1] | LOCKOUT-SWITCH | |
| 5. | 9X-6932 | [2] | BOOT-TERMINAL | |
| 6. | 102-8703 | [20] | PLATE-COVER | |
| 7. | 107-4749 | [1] | PLATE | |
| 8. | 153-5710 | [2] | BATTERY GP(12-VOLT, MAINTENANCE FREE, WET)(MAINTENANCE FREE) | |
| 9. | 154-4890M | [5] | BOLT-STACKING(M8X1.25X33-MM) | |
| 10. | 163-5293 | [1] | CABLE AS | |
| | 159-8050E | | CABLE(00-GA, BLACK)(14-CM) | |
| | 9G-0002 | [1] | COVER AS-TERMINAL(RED) | |
| | 9G-0005 | [1] | COVER AS-TERMINAL(BLACK) | |
| | | | (EACH COVER AS INCLUDES) |
| | 8L-8413 | [1] | STRAP-CABLE(WHITE) | |
| | 8T-9756 | [1] | TERMINAL AS-BATTERY(POSITIVE) | |
| | 8C-5918 | [1] | TERMINAL AS-BATTERY(NEGATIVE) | |
| | | | (EACH TERMINAL AS INCLUDES) |
| | 1M-6119 | [1] | BOLT(5/16-18X1.375-IN) | |
| | 1M-6120 | [1] | NUT(5/16-18-THD) | |
| 11. | 177-2215 | [3] | STRAP-DUAL CLAMP | |
| 12. | 200-6345 | [1] | SADDLE-MOUNTING(DUAL SWIVEL) | |
| 13. | 204-2281 | [2] | STRAP-CABLE | |
| 14. | 206-0451M | [2] | BOLT-STACKING(M8X1.25X44-MM) | |
| 15. | 206-0452 | [10] | PLATE | |
| 16. | 235-1845 | [1] | FUSE(100-AMPERE) | |
| 17. | 452-6892Y | [1] | SWITCH GP-DISCONNECT(BATTERY) | |
| 18. | 267-2744 | [1] | HOLDER AS-FUSE | |
| | 5C-7261M | [2] | NUT(M8X1.25-THD) | |
| | 7X-0608 | [2] | WASHER-HARD(10.2X16X2-MM THK) | |
| | 9F-5644 | [2] | LOCKWASHER | |
| | 267-2746 | [1] | COVER AS | |
| 19. | 272-1193 | [1] | PLATE AS | |
| 20. | 274-9872 | [3] | FUSE(30-AMPERE) | |
| 21. | 274-9877 | [2] | FUSE(50-AMPERE) | |
| 22. | 275-0553 | [1] | BAR-BUS | |
| 23. | 278-6377 | [2] | FUSE(40-AMPERE) | |
| 24. | 303-1256Y | [1] | RELAY GP(24-VDC)(MAIN POWER) | |
| 24A. | 303-1256Y | [1] | RELAY GP(24-VDC)(ENGINE TEMPERATURE) | |
| 25. | 329-3992 | [1] | CABLE AS | |
| | 8C-3056E | | CABLE(2-GA, RED)(42-CM) | |
| | 278-1439 | [1] | TERMINAL AS-RING | |
| | 125-7876E | | TUBE-HEAT SHRINK(17.78-MM DIA)(4-CM) | |
| | 278-1438 | [1] | TERMINAL-RING | |
| | 3L-6513 | [1] | TERMINAL-RING(1-GA TO 2-GA, 1/2-IN SCREW) | |
| 26. | 332-0142 | [1] | PLATE | |
| 27. | 338-8927 | [1] | PLATE AS | |
| 28. | 338-9001 | [1] | TRAY AS-BATTERY | |
| 29. | 338-9003 | [1] | CABLE AS | |
| | 311-6112 | [2] | TERMINAL AS-BATTERY | |
| | | | (EACH INCLUDES) |
| | 1S-7251 | [1] | TERMINAL-CABLE(00-GA, 1/2-IN SCREW) | |
| | 351-9309E | | TUBE-HEAT SHRINK(32-MM DIA)(4-CM) | |
| | 159-8050E | | CABLE(00-GA, BLACK)(320-CM) | |
| 30. | 338-9005 | [1] | CABLE AS-BATTERY | |
| | 7T-9988 | [1] | COVER AS-TERMINAL(BLACK) | |
| | 8L-8413 | [1] | STRAP-CABLE(WHITE) | |
| | 9G-8909 | [1] | COVER-TERMINAL(BLACK) | |
| | 3S-6050 | [1] | TERMINAL AS-BATTERY(NEGATIVE) | |
| | 1M-6119 | [1] | BOLT(5/16-18X1.375-IN) | |
| | 1M-6120 | [1] | NUT(5/16-18-THD) | |
| | 159-8050E | | CABLE(00-GA, BLACK)(183-CM) | |
| | 311-6112 | [1] | TERMINAL AS-BATTERY | |
| | 1S-7251 | [1] | TERMINAL-CABLE(00-GA, 1/2-IN SCREW) | |
| | 351-9309E | | TUBE-HEAT SHRINK(32-MM DIA)(4-CM) | |
| 31. | 338-9606 | [1] | BRACKET AS | |
| | 6V-9632M | [4] | NUT-WELD(M6X1-THD) | |
| | 7T-1099 | [1] | LINK | |
| | 102-8704 | [1] | PLATE | |
| | 178-8505 | [1] | PLATE-WELD | |
| 32. | 339-5746 | [1] | BRACKET AS-CLAMP | |
| 33. | 341-7395 | [1] | COVER-BATTERY | |
| 34. | 342-9092 | [1] | CABLE AS | |
| | 1S-7252 | [1] | TERMINAL-CABLE(00-GA, 3/8-IN SCREW) | |
| | 159-8050E | | CABLE(00-GA, BLACK)(35-CM) | |
| | 274-9183 | [1] | TERMINAL-RING(00-GA, 1/2-IN SCREW) | |
| 35. | 342-9252 | [1] | CABLE AS-GROUND | |
| | 1S-7251 | [1] | TERMINAL-CABLE(00-GA, 1/2-IN SCREW) | |
| | 159-8050E | | CABLE(00-GA, BLACK)(71-CM) | |
| | 315-0180 | [1] | TERMINAL-RING(00-GA, 3/8-IN SCREW) | |
| 36. | 344-2271 | [2] | BRACKET AS | |
| 37. | 346-4783 | [1] | BRACKET AS | |
| 38. | 352-6558 | [1] | PLATE AS | |
| 39. | 352-6571 | [1] | BAR-BUS | |
| 40. | 385-0543 | [1] | HARNESS AS-PANEL | |
| | 8N-1544 | [1] | PIN-CONNECTOR(8-GA) | |
| | 8N-1546 | [1] | PIN-CONNECTOR(6-GA) | |
| | 127-5483 | [1] | PLUG AS-CONNECTOR(1-PIN) | |
| | 155-2255 | [1] | KIT-CONNECTING PLUG(12-PIN) | |
| | | | (INCLUDES PLUG AS, WEDGE & INTERFACE SEAL) |
| | 230-4011 | [2] | PLUG AS-CONNECTOR(2-PIN) | |
| | | | (EACH INCLUDES) |
| | 264-7029 | [1] | SEAL-CONNECTOR | |
| | 8T-8737 | [4] | PLUG-SEAL | |
| | 127-5484 | [1] | RECEPTACLE AS-CONNECTOR(1-PIN) | |
| | 127-5486 | [1] | RECEPTACLE AS-CONNECTOR(1-PIN) | |
| | 8N-1547 | [1] | SOCKET-CONNECTOR(6-GA) | |
| | 180-9340 | [12] | SOCKET-CONNECTOR(14-GA TO 18-GA) | |
| | 131-1488 | [3] | TERMINAL AS-RING(6-GA TO 8-GA) | |
| | | | (EACH INCLUDES) |
| | 2L-8058 | [1] | TERMINAL-RING(8-GA, 1/4-IN SCREW) | |
| | 119-3662E | | TUBE-HEAT SHRINK(10.85-MM DIA)(4-CM) | |
| | 2L-8067 | [1] | TERMINAL-RING(10-GA TO 12-GA, 1/4-IN SCREW) | |
| | 125-7874E | | TUBE-HEAT SHRINK(5.72-MM DIA)(5-CM) | |
| 41. | 361-1595 | [1] | PLATE | |
| 42. | 369-3870 | [1] | CABLE AS | |
| | 8N-1725 | [1] | COVER AS-TERMINAL(RED) | |
| | 8L-8413 | [1] | STRAP-CABLE(WHITE) | |
| | 3S-6049 | [1] | TERMINAL AS-BATTERY(POSITIVE) | |
| | 1M-6119 | [1] | BOLT(5/16-18X1.375-IN) | |
| | 1M-6120 | [1] | NUT(5/16-18-THD) | |
| | 159-8049E | | CABLE(00-GA, RED)(413-CM) | |
| | 299-6082 | [1] | COVER-TERMINAL(RED) | |
| | 311-6112 | [1] | TERMINAL AS-BATTERY | |
| | 1S-7251 | [1] | TERMINAL-CABLE(00-GA, 1/2-IN SCREW) | |
| | 351-9309E | | TUBE-HEAT SHRINK(32-MM DIA)(4-CM) | |
| | 366-6147 | [1] | TERMINAL AS-RING | |
| | 135-5009E | | TUBE-HEAT SHRINK(32-MM DIA)(5-CM) | |
| | 274-9183 | [1] | TERMINAL-RING(00-GA, 1/2-IN SCREW) | |
| 43. | 369-3872 | [1] | BRACKET AS | |
| 44. | 369-3874 | [1] | CABLE AS | |
| | 6V-2369D | | CABLE(4-GA, BLACK)(3.3-M) | |
| | 9X-2389G | | HOSE(120-IN) | |
| | 8T-5346E | | TUBE-HEAT SHRINK(19.1-MM DIA)(10-CM) | |
| | 5P-3454 | [1] | TERMINAL-RING(4-GA, 5/16-IN SCREW) | |
| | | [1] | TERMINAL AS |
| | | [1] | TERMINAL-RING |
| | 125-7876E | | TUBE-HEAT SHRINK(17.78-MM DIA)(5-CM) | |
| 45. | 099-3649M | [1] | BOLT(M8X1.25X40-MM) | |
| 46. | 128-5531 | [2] | CLAMP-HALF | |
| 47. | 130-5300 | [4] | CLIP | |
| 48. | 156-3618 | [12] | CLAMP-HALF | |
| 49. | 156-5306 | [28] | CLAMP-HALF | |
| 50. | 190-7971 | [1] | WASHER-HARD(11X64X6-MM THK) | |
| 51. | 190-8250M | [1] | BOLT(M10X1.5X295-MM) | |
| 52. | 197-4103 | [2] | CLAMP-HALF | |
| 53. | 1G-9960 | [2] | CLAMP | |
| 54. | 1H-3244 | [4] | LOCKWASHER | |
| 55. | 277-1873 | [1] | CLIP(LADDER) | |
| 56. | 337-1807 | [12] | CLAMP-HALF | |
| 57. | 4P-7581 | [2] | CLIP(LADDER) | |
| 58. | 4V-6440 | [2] | SPACER(18.9X26.7X50-MM THK) | |
| 59. | 5C-2890M | [4] | NUT(M6X1-THD) | |
| 60. | 5C-7261M | [9] | NUT(M8X1.25-THD) | |
| 61. | 5P-4116 | [4] | WASHER-HARD(8.8X20.5X2-MM THK) | |
| 62. | 6V-7687M | [1] | LOCKNUT(M12X1.75-THD) | |
| 63. | 7K-1181 | [3] | STRAP-CABLE | |
| 64. | 7V-5626 | [4] | CLAMP | |
| 65. | 7X-2533M | [2] | BOLT(M6X1X35-MM) | |
| 66. | 7X-2534M | [2] | BOLT(M6X1X50-MM) | |
| 67. | 7X-2537M | [12] | BOLT(M8X1.25X35-MM) | |
| 68. | 7X-2550M | [2] | BOLT(M12X1.75X110-MM) | |
| 69. | 7X-2552M | [1] | BOLT(M16X2X30-MM) | |
| 70. | 7X-2555M | [2] | BOLT(M16X2X80-MM) | |
| 71. | 7X-7729 | [4] | WASHER(11X25X3-MM THK) | |
| 72. | 8C-8451M | [6] | BOLT(M6X1X40-MM) | |
| 74. | 8T-3647M | [3] | BOLT(M8X1.25X80-MM) | |
| 75. | 8T-4121 | [4] | WASHER-HARD(11X21X2.5-MM THK) | |
| 76. | 8T-4123 | [1] | WASHER(3.62X5.75X0.375-MM THK) | |
| 77. | 8T-4137M | [2] | BOLT(M10X1.5X20-MM) | |
| 78. | 8T-4138M | [2] | BOLT(M6X1X20-MM) | |
| 79. | 8T-4179M | [3] | BOLT(M12X1.75X20-MM) | |
| 80. | 8T-4189M | [6] | BOLT(M8X1.25X20-MM) | |
| 81. | 8T-4191M | [1] | BOLT(M10X1.5X16-MM) | |
| 82. | 8T-4195M | [4] | BOLT(M10X1.5X30-MM) | |
| 83. | 8T-4205 | [4] | WASHER-HARD(7.2X14.5X2-MM THK) | |
| 84. | 8T-4223 | [7] | WASHER-HARD(13.5X25.5X3-MM THK) | |
| 85. | 8T-4224 | [15] | WASHER-HARD(8.8X16X2-MM THK) | |
| 86. | 8T-4244M | [1] | NUT(M12X1.75-THD) | |
| 87. | 8T-4908M | [3] | BOLT(M8X1.25X25-MM) | |
| 88. | 9F-5644 | [4] | LOCKWASHER | |
| 89. | 9X-8256 | [4] | WASHER(6.6X12X2-MM THK) | |
| 90. | 9X-8257 | [3] | WASHER(17.5X30X3.5-MM THK) | |
| 91. | 103-2543E | | SEAL(2.5-CM EACH) | |
| 92. | 8T-4197M | [1] | BOLT(M8X1.25X40-MM) | |
| | D | | ORDER BY THE METER |
| | E | | ORDER BY THE CENTIMETER |
| | G | | ORDER BY THE INCH |
| | M | | METRIC PART |
| | Y | | SEPARATE ILLUSTRATION |
