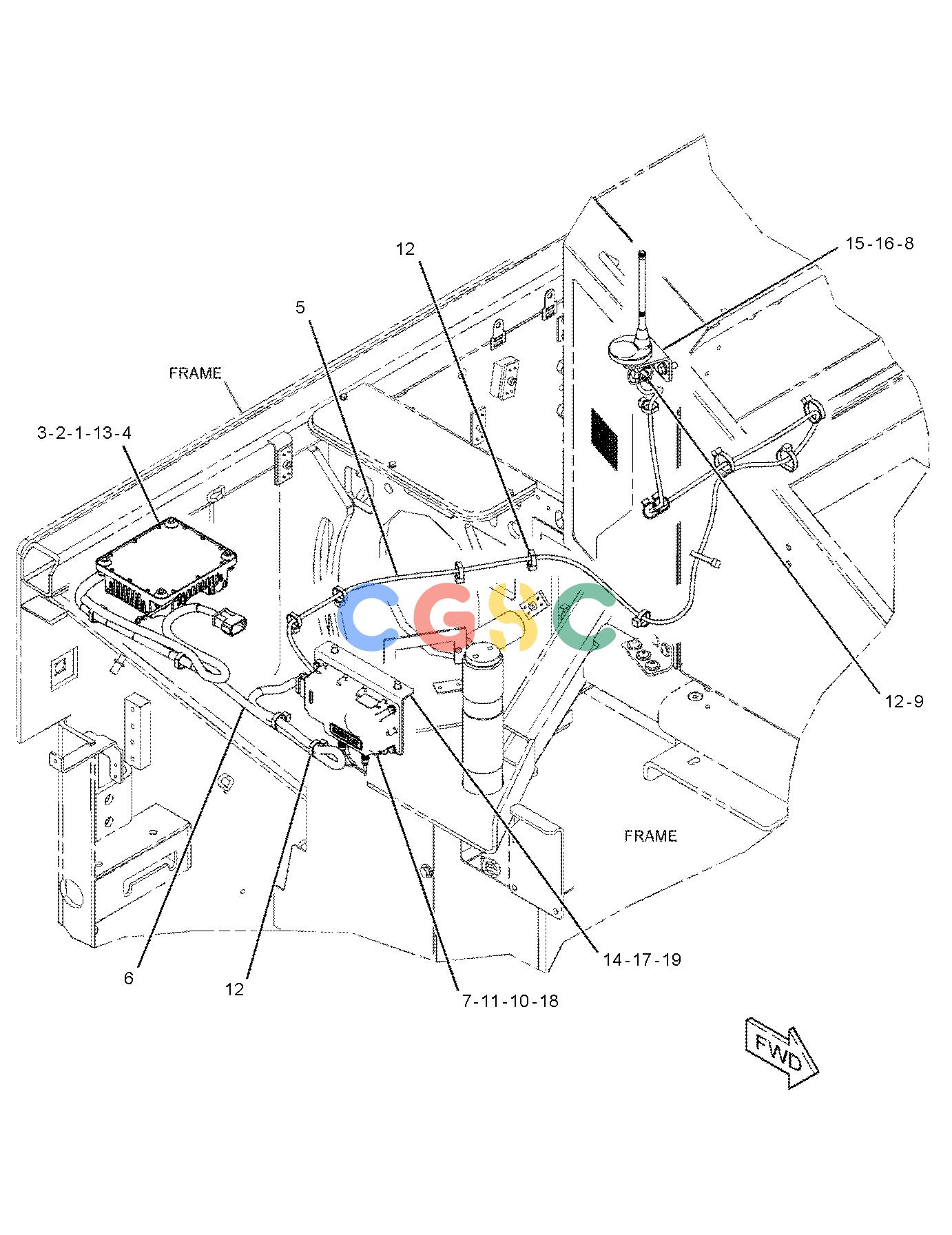

卡特零件查询（AP-1055E） 440-0800: HARNESS AS-POWER
广数供应链运营团队, 16 02月, 2025，浏览：
353 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| | 6Y-6814 | [1] | CONNECTOR | |
| | 6Y-6812 | [1] | ELBOW-CONNECTOR | |
| | 109-3039 | [3] | END-WIRE(12-GA) | |
| | 1P-0810B | | TAPE-ELECTRICAL | |
| | 329-3734B | | TAPE-ELECTRICAL | |
| | 5P-5618 | [4] | TERMINAL-BLADE(10-GA TO 12-GA) | |
| | 9G-4342 | [1] | TERMINAL-RING(4-GA, NO. 10 SCREW) | |
| | 2L-8069 | [1] | TERMINAL-RING(2-GA TO 10-GA, 3/8-IN SCREW) | |
| | 2L-8066 | [1] | TERMINAL-RING(10-GA TO 12-GA, NO. 10 SCREW) | |
| | 119-3662E | | TUBE-HEAT SHRINK(10.85-MM DIA)(20-CM) | |
| | B | | USE AS REQUIRED |
| | E | | ORDER BY THE CENTIMETER |
