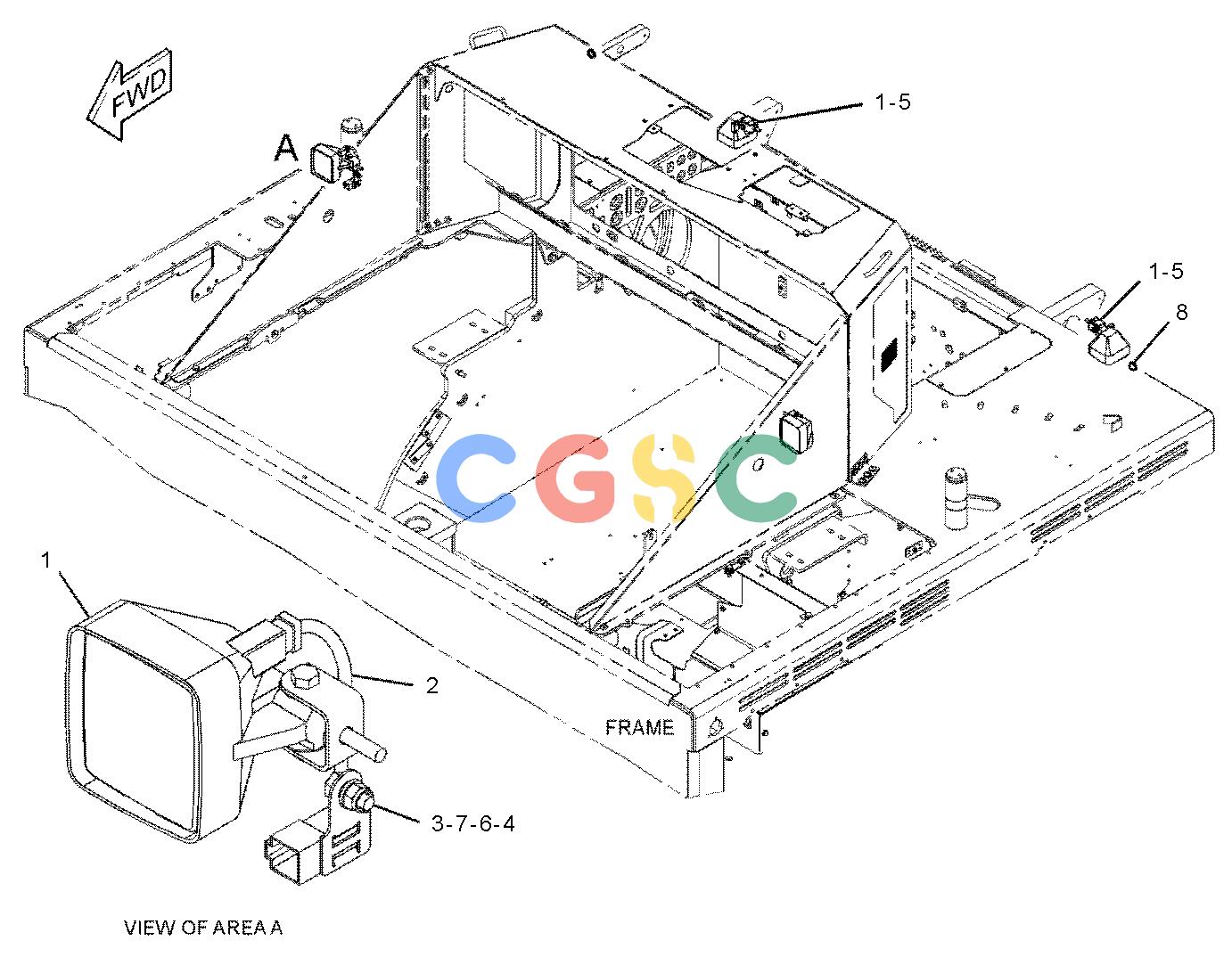

卡特零件查询（AP-1055E） 327-9180: LIGHTING GP-FLOOD
广数供应链运营团队, 16 02月, 2025，浏览：
968 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 234-4323Y | [4] | LAMP GP-FLOOD(24-VOLT) | |
| 2. | 290-0439 | [2] | HARNESS AS-FRONT LIGHTING | |
| | | | (EACH INCLUDES) |
| | 9X-3401 | [2] | PIN-CONNECTOR(16-GA TO 18-GA) | |
| | 155-2270 | [1] | KIT-CONNECTING PLUG(2-PIN) | |
| | | | (INCLUDES PLUG AS, WEDGE & INTERFACE SEAL) |
| | 8T-8737 | [4] | PLUG-SEAL | |
| | 102-8805 | [1] | KIT-RECEPTACLE(6-PIN) | |
| | | | (INCLUDES RECEPTACLE AS & WEDGE) |
| | 180-9340 | [2] | SOCKET-CONNECTOR(14-GA TO 18-GA) | |
| 3. | 130-5300 | [2] | CLIP | |
| 4. | 131-3540M | [2] | LOCKNUT(M8X1.25-THD) | |
| 5. | 8T-4133M | [2] | NUT(M10X1.5-THD) | |
| 6. | 8T-4189M | [2] | BOLT(M8X1.25X20-MM) | |
| 7. | 8T-4224 | [4] | WASHER-HARD(8.8X16X2-MM THK) | |
| 8. | 9D-3767 | [2] | PLUG-BUTTON | |
| | M | | METRIC PART |
| | Y | | SEPARATE ILLUSTRATION |
